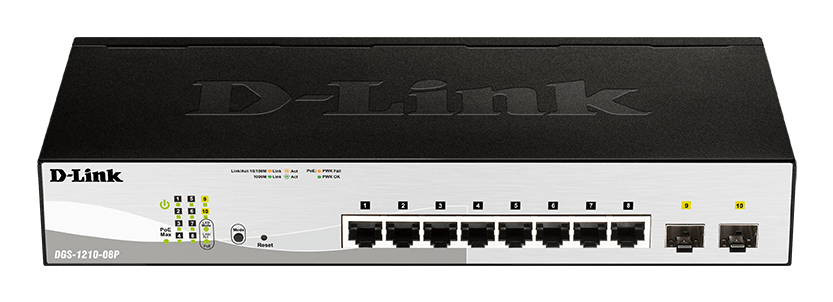

D-Link DGS-1210-08P/E Switch 8xGbit/2xSFP 48,3 cm ( 19 inch ) Managed PoE content_copy

The Web Smart Managed Gigabit Switch DGS-1210 supports numerous features that are normally only found in high-end switches. It ensures maximum control, service and security, but without the complexity of an enterprise switch. Due to the very low administration effort, it is ideal for use in small and medium-sized companies.

Highlights

• 8 x 10/100/1000BASE-T PoE port
• 2 x SFP port
• VLAN, QoS, PoE+, fanless
• PoE power budget: 65 W
• Capacity: 20 Gbit/s
• Heat conduction: 275.04 BTU/hr

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C

Specifications

• Switch type: Access
• Switching capacity: 20 GBit/s (Gbps)

Shipping

• WEEE: 10490255

Connections

• Total number of copper ports: 8
• Total number of fiber optic ports: 2
• Total number of PoE ports: 8
• Bandwidth: 10/100/1000 MBit/s
• PoE standard: PoE - 802.3af , PoE+ - 802.3at
• PoE budget: 65 W
• Main port type: copper
• Number of PoE+ (af/at) ports: 8
• Number of RJ45 ports (1G): 8
• Number of SFP ports (1G): 2

Functions

• Switch manageable : Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount
• IGMP

Power supply

• Power supply: external

Basic properties

• Color: Black, Gray
• Height: 44 mm
• Length/depth: 126 mm
• Width: 280 mm
• Weight: 0.95 kg

Scope of delivery

• D -Link DGS-1210-08P 8-Port Layer2 PoE Smart Managed Gigabit

Certificates
Certification	CE Class A
Data transmission
Switching capacity	20 Gbit/s
MAC address table	16000 entries
Packet buffer memory	6 MB
Jumbo frames support
Design
Product colour	Black
Safety	cUL, LVD
Rack mounting
Stackable
LED indicators
Cable management
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Managed
Switch layer	L2
MIB support	1213 MIB II, 1493 Bridge MIB, 1907 SNMP v2 MIB, 1215 Trap Convention MIB, 2233 Interface Group MIB, D-Link Private MIB, Power-Ethernet MIB, LLDP MIB, D-Link ZoneDefense MIB1
Quality of Service (QoS) support
Multicast features
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af
10G support
Full duplex
Flow control support
Spanning tree protocol
Head-of-line (HOL) blocking
VLAN support
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Other features
Packet transfer speed	14.9 Mp/s
Power LED
Packaging data
Package width	288 mm
Package depth	331 mm
Package height	72 mm
Package weight	2.17 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Power
AC input voltage	100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE)
Protocols
Management protocols	SNMP, RMON
Data link protocols	IP
Security
DHCP features	DHCP server, DHCP client
Access Control List (ACL)
IGMP snooping
MAC address filtering
Static port security
SSH/SSL support
Technical details
Shipping (inner) case height	31.7 cm
Shipping (inner) case width	34.6 cm
Shipping (inner) case length	38.2 cm
Shipping (inner) case net weight	10.8 kg
Products per shipping (inner) case	5 pc(s)
Pallet gross weight (air)	436.1 kg
Master (outer) cases per pallet (air)	36 pc(s)
Products per pallet (air)	180 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	140.3 cm
Pallet gross weight (sea)	644.9 kg
Master (outer) cases per pallet (sea)	54 pc(s)
Products per pallet (sea)	270 pc(s)
Pallet height (sea)	2.04 m
Shipping (inner) case gross weight	11.6 kg
Weight & dimensions
Width	280 mm
Depth	180 mm
Height	44 mm

---
