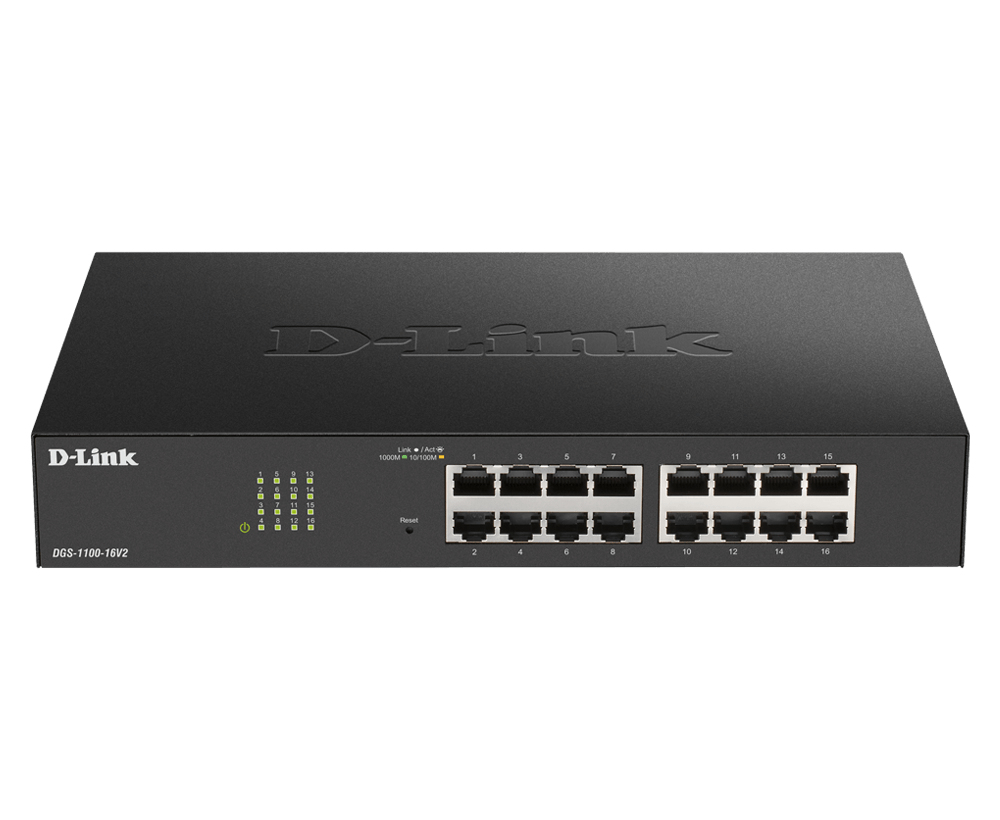

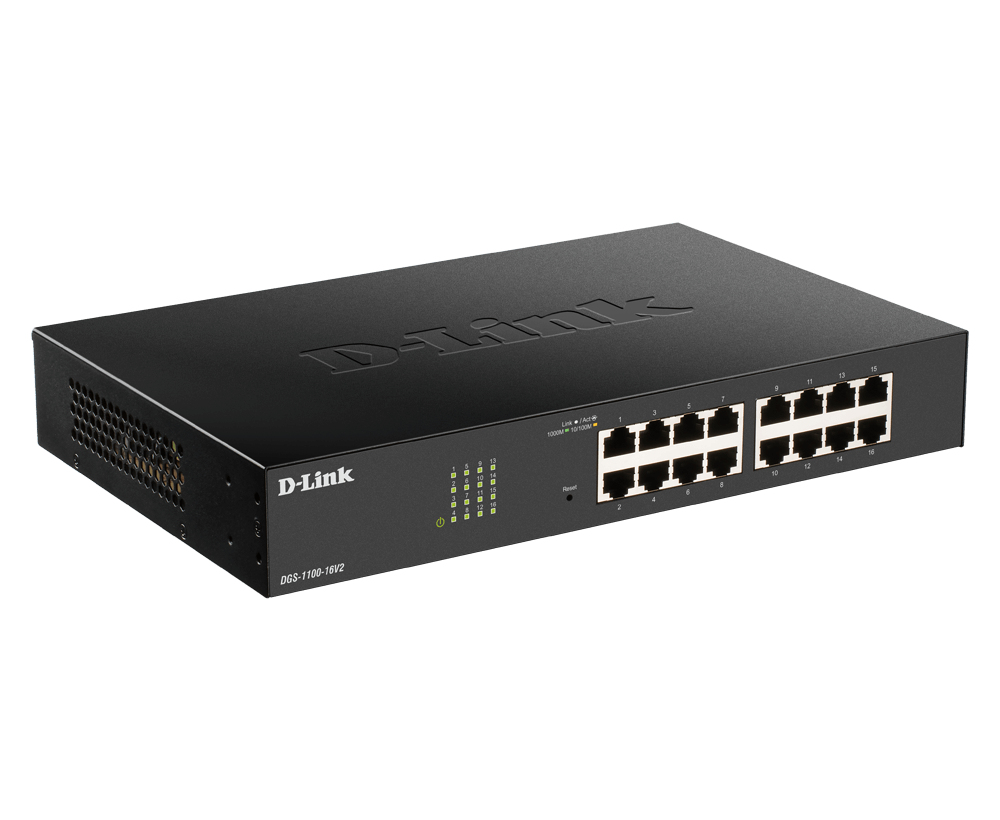

D-Link DGS-1100-16V2 16-Port Layer2 Smart Gigabit Switch
|
132,57 EUR |
|||||||||||
|
( 157,76 EUR incl. VAT ) ≈ £111.36 | ≈ $148.74 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| End-Of-Life: | 22. Jan 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 1971729 | ||||||||||
| Mfg Part No: | DGS-1100-16V2/E | ||||||||||
| UPC/EAN: | 0790069467820 | ||||||||||
| Weight: | 2.05 kg | ||||||||||
| Type: | CPNT | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for D-Link DGS-1100-16V2/E:
The DGS-1100 Smart Switch Series is a cost-effective solution for environments that require simple network management. Layer 2 functions such as VLANs, Spanning Tree Protocol (STP) and Link Aggregation (static) can be easily controlled via the user-friendly web interface of the DGS-1100 switches. With strong security features such as IGMP snooping, static MAC addresses and storm control, the DGS-1100 series is versatile in environments that require quickly and easily deployable solutions without additional complexity.
Highlights
- 16x Gigabit Ethernet port
- Switch capacity: 32 Gbit/s
- Simple Layer 2 management
- Web-based user interface
- Fanless design for silent operation
- Switch
- ear category (ElektroG): relevant, category 6: small devices of the IT and telecommunications technology, small devices for IT and telecommunications technology B2C
- Switch type: Access
- Switching capacity: 32 GBit/s (Gbps)
- WEEE: 10490255
- Total number of copper ports: 16
- Bandwidth: 10/100/1000 MBit/s
- Main port type: Copper
- Number of RJ45 ports (1G): 16
- Switch manageable: Yes
- Mounting type: 48,3 cm ( 19 inch ) rack mount, desktop
- IGMP
- Power supply: integrated
- Color : Silver, Black
- Height: 44 mm
- Length/Depth: 180 mm
- Width: 280 mm
- Weight: 1.53 kg
- D-Link DGS-1100-16V2 16-Port Layer2 Smart Gigabit Switch
Product type
Specifications
Shipping
Connections
Functions
Power supply
Basic properties
Scope of delivery
| Certificates | |
| Certification | EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.81 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Rack mounting | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 10BASE-TX, 1000BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Virtual LAN features | Port-based VLAN, Voice VLAN |
| Number of VLANs | 128 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| Head-of-line (HOL) blocking | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 34.46 BTU/h |
| Performance | |
| Processor frequency | 125 MHz |
| Memory type | DRAM |
| Flash memory | 16 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 710519 h |
| Built-in processor | |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 10.1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client |
| Security algorithms | SNMP, SSL/TLS |
| Queue scheduling algorithms | SPQ, Weighted Round Robin (WRR) |
| IGMP snooping | |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.27 kg |
