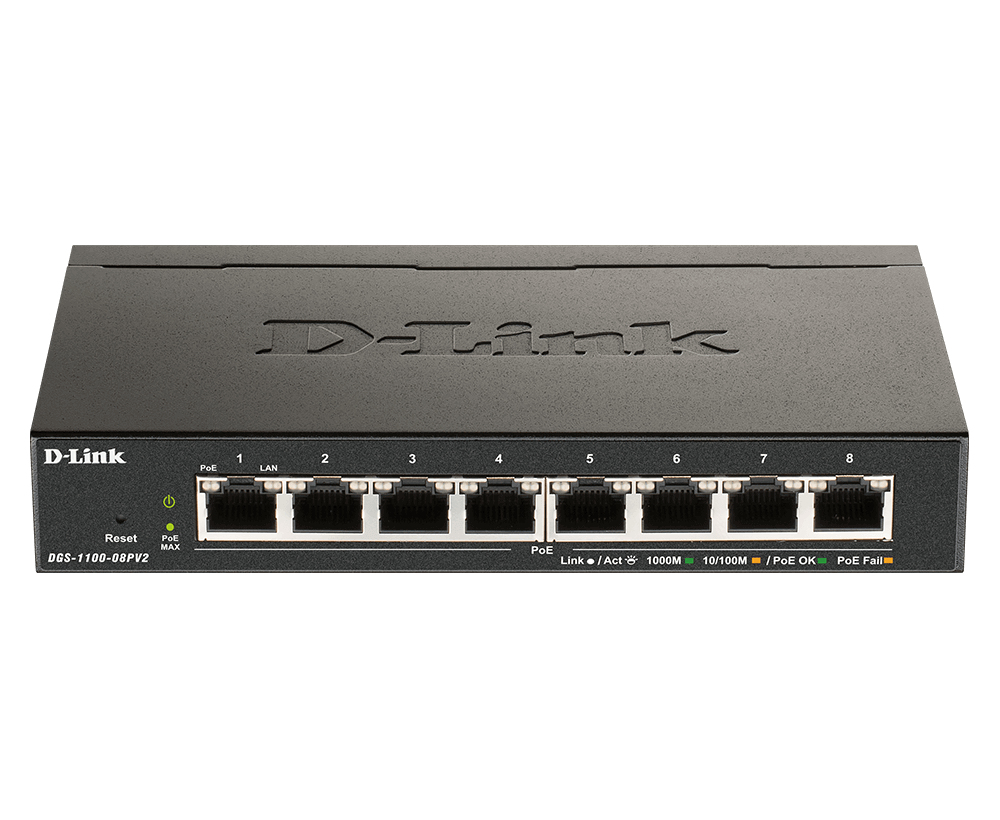

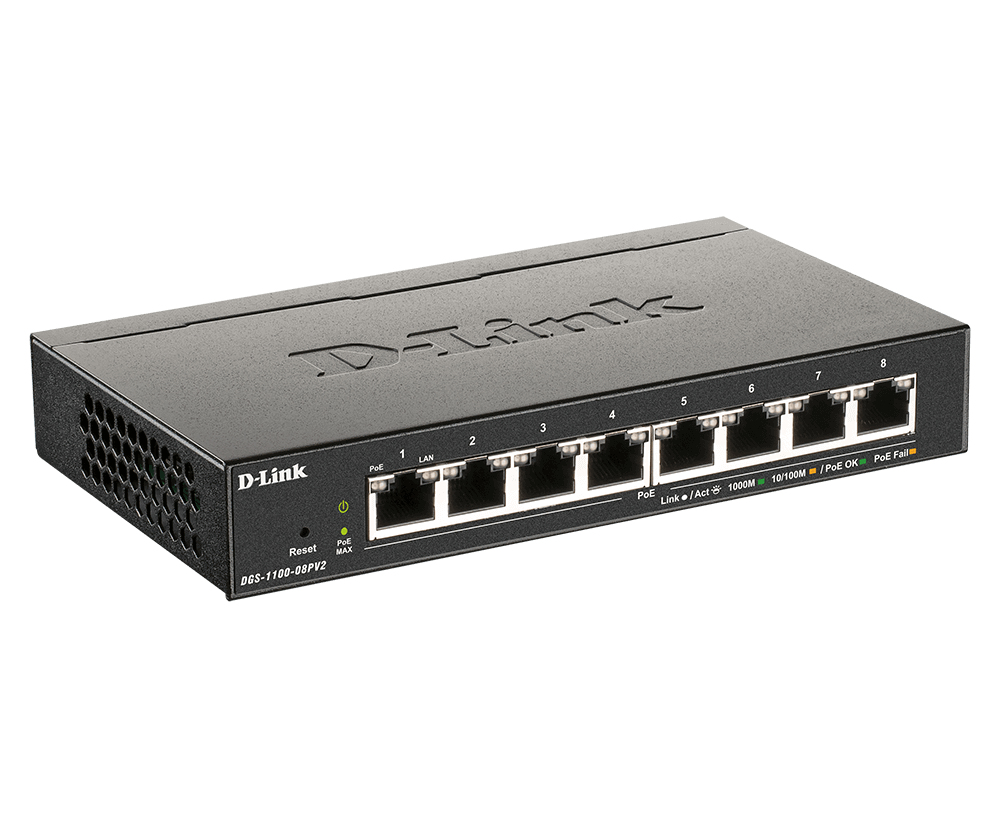

D-Link DGS-1100-08PV2/E Switch 8xGBit Managed PoE (64W)
|
126,01 EUR |
|||||||||||
|
( 149,95 EUR incl. VAT ) ≈ £105.85 | ≈ $141.38 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 1971717 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | DGS-1100-08PV2/E | ||||||||||
| UPC/EAN: | 0790069467813 | ||||||||||
| Weight: | 1.25 kg | ||||||||||
| Type: | DGS-1100-08PV2/E | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for D-Link DGS-1100-08PV2/E:
Highlights
- 8x Gigabit Ethernet port
- PoE support according to IEEE 802.3af (up to 15.4 watts per port)
- Switch capacity: 16 Gbit/s
- PoE budget: 64 watts
- Fanless design for silent operation
- Switch
- ear -Category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C
- Switch type: Access
- Switching capacity: 16 GBit/s (Gbps)
- WEEE: 10490255
- Total number of copper ports: 8
- Total number of PoE ports: 8
- Bandwidth: 10/100/1000 MBit/s
- PoE standard: PoE - 802.3af
- PoE budget: 64 W
- Main port type: Copper
- Number of PoE (af) ports: 8
- Number of RJ45 ports (1G): 8
- Switch manageable: Yes
- Mounting type: 48,3 cm ( 19 inch ) rack mount
- IGMP
- Power supply: integrated
- Color: silver, black
- Height : 38 mm
- Length/Depth: 120 mm
- Width: 190 mm
- Weight: 0.706 kg
- D-Link DGS-1100-08PV2 8-Port L2 PoE EasySmart Gigabit Switch
Product type
Specifications
Shipping
Connections
Functions
Power supply
Basic features
Scope of delivery
| Certificates | |
| Compliance certificates | CE, RoHS |
| Certification | FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI |
| Data transmission | |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| MAC address table | 4096 entries |
| Number of queues | 4 |
| Jumbo frames | 9216 |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Rack mounting | |
| LED indicators | |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Virtual LAN features | Port-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Half duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 265.85 BTU/h |
| Performance | |
| Flash memory | 2 MB |
| Mean time between failures (MTBF) | 786841 h |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 77.9 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 64 W |
| Power over Ethernet (PoE) | |
| Security | |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| IGMP snooping | |
| Loop protection | |
| Sustainability | |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 171 mm |
| Depth | 97.8 mm |
| Height | 28.6 mm |
| Weight | 430 g |
Questions & answers
What is the delivery time of D-Link DGS-1100-08PV2/E Switch 8xGBit Managed PoE (64W)?
The article D-Link DGS-1100-08PV2/E Switch 8xGBit Managed PoE (64W) is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of D-Link DGS-1100-08PV2/E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you D-Link DGS-1100-08PV2/E Switch 8xGBit Managed PoE (64W) always at the best possible price. We can give you a discount of 2% on D-Link DGS-1100-08PV2/E Switch 8xGBit Managed PoE (64W) if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of D-Link DGS-1100-08PV2/E Switch 8xGBit Managed PoE (64W) we can offer you a price of 122,23 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
