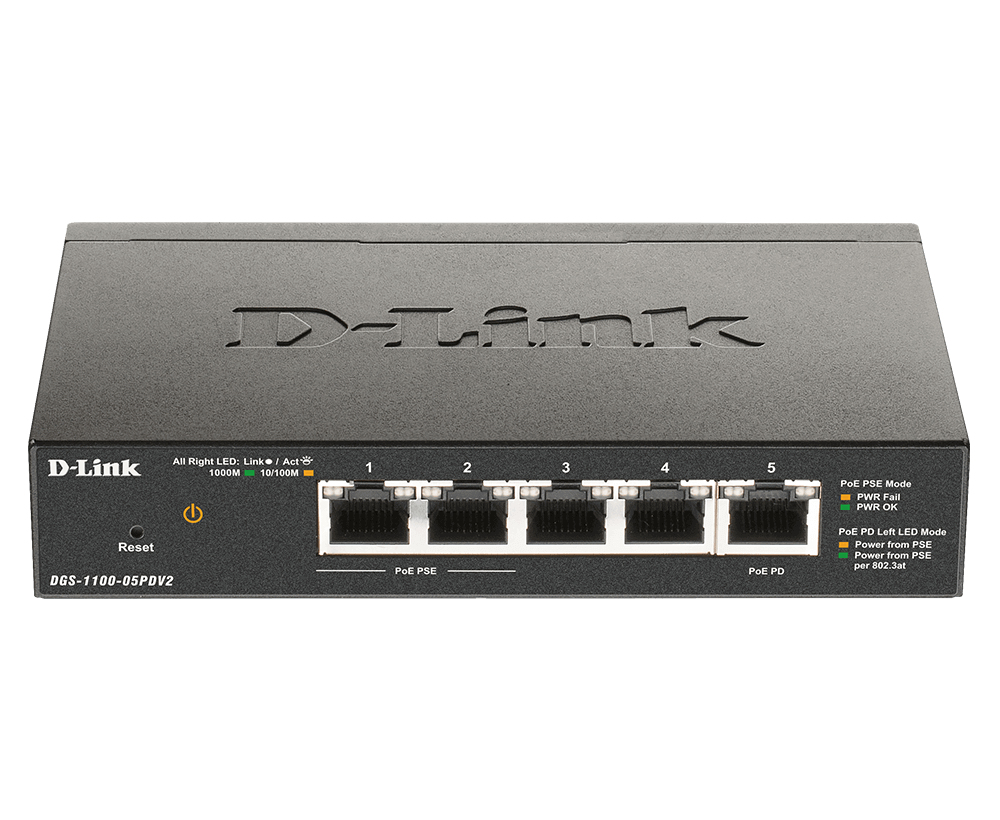

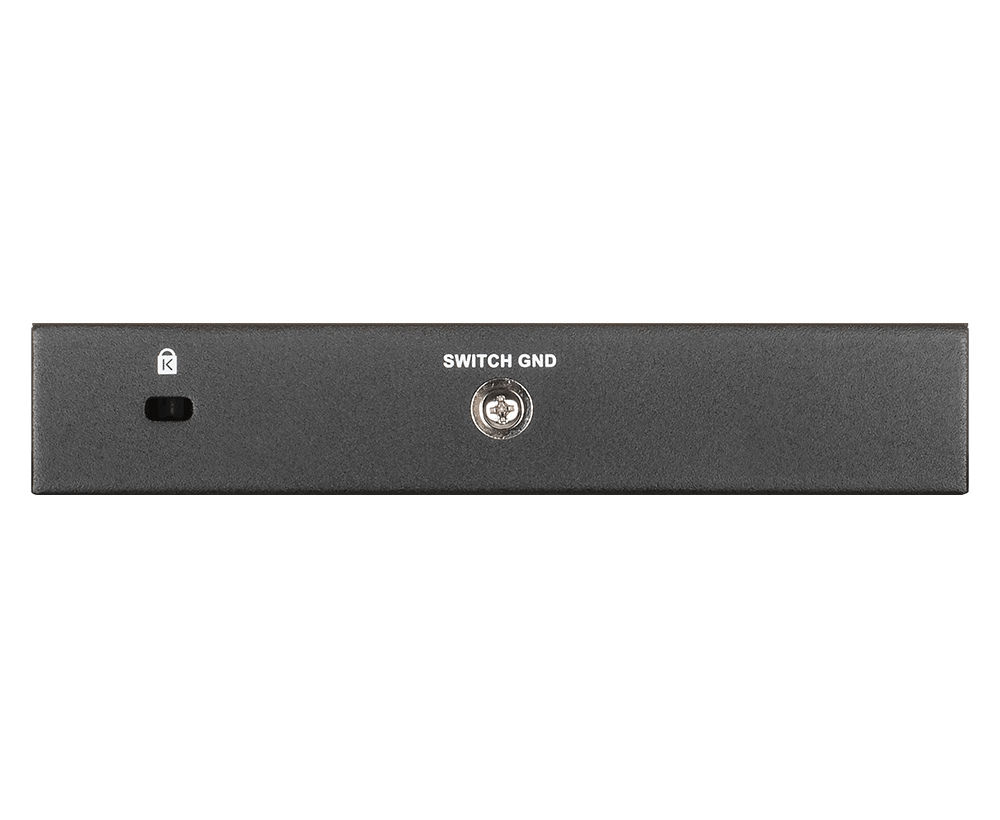

Switch D-Link DGS-1100-05PDV2 PoE-powered 5*GE PoE retail
|
83,29 EUR |
|||||||||||
|
( 99,12 EUR incl. VAT ) ≈ £69.96 | ≈ $93.45 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2086441 | ||||||||||
| Mfg Part No: | DGS-1100-05PDV2 | ||||||||||
| UPC/EAN: | 0790069453298 | ||||||||||
| Weight: | 0.585 kg | ||||||||||
| Type: | CPNT | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for D-Link DGS-1100-05PDV2:
Highlights
- 2 x 10/100/1000 Mbps (PoE) RJ45 ports
- 3 x 10/100/1000 Mbps RJ45 ports
- Switch capacity: 10 Gbit/s
- PoE passthrough: 18 W with 802.3at input, 8 W with 802.3af Input
- Compact and fanless design
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C
- Switch type: Access
- Switching capacity: 10 GBit/s (Gbps)
- WEEE: 10490255
- Total number of copper ports: 5
- Total number of PoE ports: 2
- Bandwidth: 10/100/1000 MBit/s
- PoE standard: PoE - 802.3af
- Main port type: Copper
- Number of PoE (af) ports: 2
- Number of RJ45 ports (1G): 5
- Switch manageable: Yes
- Mounting type: Desktop
- IGMP
- Power supply: integrated
- Color: silver, Black
- Height: 28 mm
- Length/Depth: 97 mm
- Width: 150 mm
- Weight: 0.38 kg
- icecat Import: 2023/07/03
- D-Link DGS-1100-05PDV2 5-Port Gigabit Smart Switch
Product type
Specifications
Shipping
Connections
Functions
Power supply
Basic features
Scope of delivery
| Certificates | |
| Compliance certificates | BSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Number of trunks | 1 |
| Number of queues | 4 |
| Jumbo frames | 9216 |
| Packet buffer memory | 1 MB |
| Design | |
| Product colour | Black |
| Rack mounting | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | |
| Web-based management | |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10000 Mbit/s |
| Virtual LAN features | Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4094 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Half duplex | |
| Flow control support | |
| Broadcast storm control | |
| Auto MDI/MDI-X | |
| Head-of-line (HOL) blocking | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Performance | |
| Flash memory | 2 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 2357475 h |
| Fanless | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power | |
| Power source | PoE |
| Power consumption (typical) | 3.24 W |
| Power consumption (max) | 24.08 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 2 |
| Power over Ethernet (PoE) power per port | 18 W |
| Power over Ethernet (PoE) | |
| Security | |
| DHCP features | DHCP client |
| IGMP entries | 128 |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| MAC address entries | Static MAC address entries |
| IGMP snooping | |
| Static port security | |
| SSH/SSL support | |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 97 mm |
| Height | 28 mm |
| Weight | 380 g |
