CYBERPOWER PR1500ELCD Line-Interactive 1500VA/1350W Sinewave AVR LCD Output(8) IEC RS232 USB(HID) EPO SNMP EnergyStar content_copy

The CyberPower PR1500ELCD is a line-interactive UPS in tower format, designed for the protection of IT systems such as computers, workstations, servers, NAS devices, network and telecommunication installations. It offers an output capacity of 1.5 kVA and an output power of 1350 W, with voltage maintained constantly at 230 V during operation. The UPS operates with a pure sine wave form in both mains and battery mode, which is required for sensitive devices to avoid damage. The automatic voltage regulation (AVR) ensures that voltage fluctuations in the power grid are compensated without battery usage, thus preserving the batteries and extending their lifespan.

Applications include use in offices, server rooms, IT infrastructures, and critical applications where uninterrupted power supply is required. The UPS is designed for operating temperatures from 0 to 40 °C and relative humidity from 0 to 95 %, enabling flexible installation in indoor environments. The input voltage range is between 151 V and 301 V, ensuring stable operation even during voltage fluctuations in the grid. The input frequency is 50/60 Hz, enabling universal use in various regions.

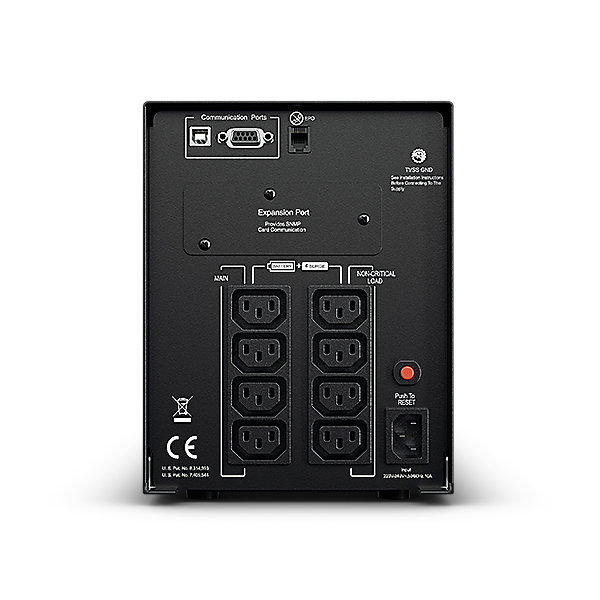

Functions and equipment in detail include eight C13 outlets as AC outputs for powering devices. The response time is 4 ms, ensuring an almost imperceptible switch to battery mode during power failure. The UPS features an emergency power off (EPO) connection, enabling safe shutdown in emergencies. An integrated EMI/RFI noise filter reduces electrical interference, and an overvoltage protection with an energy rating of 405 J protects connected devices from voltage surges. The overload protection function safeguards the UPS and connected devices from damage due to excessive load.

Technology explained simply shows that the UPS operates with a line-interactive topology, where the battery is only activated during power failure or voltage fluctuations outside the regulation range. The automatic voltage regulation (AVR) adjusts the output voltage without discharging the battery. The pure sine wave form is particularly important for devices with electronic circuits, as it causes no distortion. The hot-swap battery allows battery replacement without interrupting operation, which is advantageous for continuous systems. The battery technology is based on sealed lead-acid batteries (VRLA), which are maintenance-free and provide a typical backup time of 5 minutes at full load and 17 minutes at half load. The battery charging time is 8 hours.

Compatibility and accessories include support for operating systems such as Windows 7 / Vista / XP / 2000, Server 2003 / 2008, as well as Linux. The UPS features a USB connection and a serial connection (RS232), enabling communication with the free management software PowerPanel Business. This software allows for safe computer shutdown during power failure, scheduled shutdowns, self-diagnostics, and monitoring of energy consumption values. Optionally, an SNMP/HTTP network card (e.g. RMCARD205) can be used to enable remote management over the network. Additional compatible accessories include replacement battery pack RBP0023, an environmental data sensor, and manual bypass modules for OL and tower models.

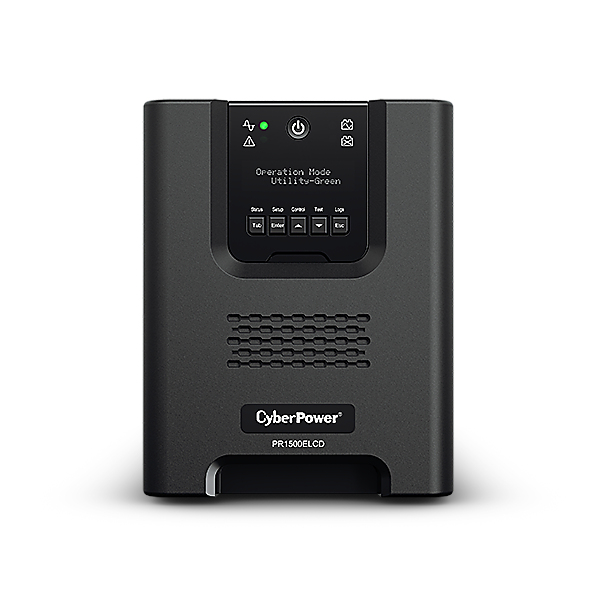

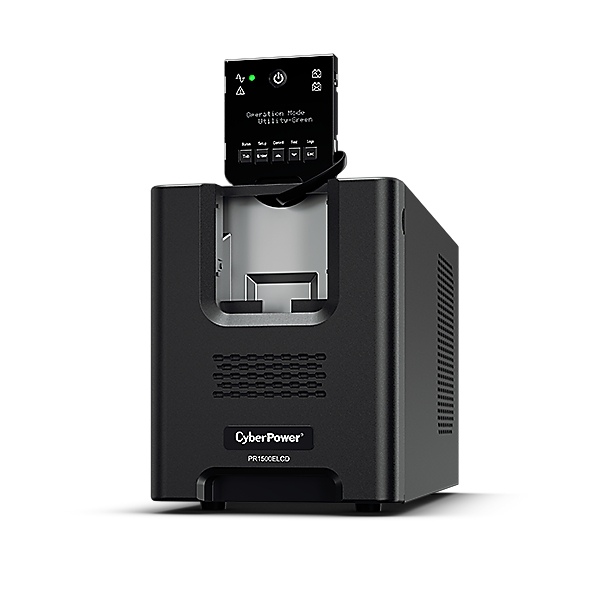

Mounting and installation is performed in tower format, which can be placed on a table or floor. The housing is made of metal and is black painted. Dimensions are 170 mm (width) × 221 mm (height) × 432 mm (depth). The UPS is designed for operation at altitudes up to 3000 m above sea level. The LCD display provides intuitive operation and shows status information such as operating mode, charge status, and error messages. Additionally, LED indicators for faults and activity are integrated.

Operational advantages lie in the combination of high power supply quality, low response time, integrated overvoltage protection, and the possibility of remote monitoring. The hot-swap function enables convenient battery replacement, and the intelligent battery management technology detects aging batteries and warns of failure. The energy-saving technology (GreenPower UPS™) reduces energy consumption in mains mode. The UPS is certified to CE, EAC, RCM, and RoHS, confirming compliance with European and international safety and environmental standards.

The UPS is designed for use in professional IT environments where reliable power supply and protection against voltage fluctuations and power failures are crucial. The combination of AVR, pure sine wave, hot-swap battery, and remote management capabilities makes it a powerful solution for critical applications.

Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Typical backup time at full load	5 min
Typical backup time at half load	17 min
Battery recharge time	8 h
Hot-swap battery
Certificates
Certification	CE, EAC, RCM, RoHS
Design
Form factor	Tower
Housing material	Metal
Product colour	Black
Display type	LCD
LED indicators	Error, Operation
Features
UPS topology	Line-Interactive
Output power capacity	1.5 kVA
Output power	1350 W
Waveform	Pure sine
Input operation voltage (min)	151 V
Input operation voltage (max)	301 V
Input frequency	50/60 Hz
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Output frequency	50/60 Hz
Maximum current	10 A
Surge energy rating	405 J
Response time	4 ms
Power factor	0.9
Power protection features	Overload
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Automatic Voltage Regulation (AVR)
Emergency Power Off (EPO)
EMI/RFI noise filtering
Surge protection
Audible alarm(s)
Logistics data
Harmonized System (HS) code	8504408590
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Other features
Compatible operating systems	Windows 7 / Vista / XP / 2000, Server 2003 / 2008, Linux
Overload protection
Packaging content
Cables included	USB cable
Packaging data
Package width	316 mm
Package depth	579 mm
Package height	360 mm
Package weight	27 kg
Ports & interfaces
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
Number of output IEC jumpers	1
USB 2.0 ports quantity	1
Serial ports quantity	1
USB port
Weight & dimensions
Width	170 mm
Depth	432 mm
Height	221 mm
Weight	25.1 kg

---
