Cyberpower PDU ATS Switch 48,3 cm ( 19 inch ) 2xIEC-C14 12xIEC-C13 230V/10A content_copy

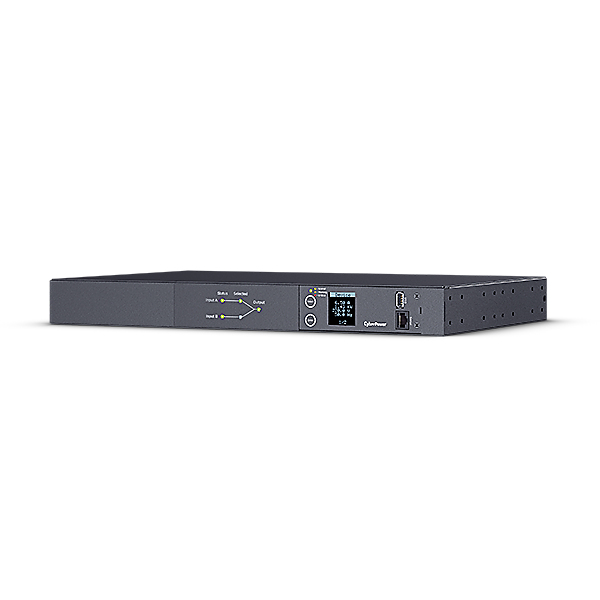

CyberPower PDU24004 The device supplies several connected devices in IT environments with power from a UPS system, a generator or the public power grid. Two power cables can be connected to separate power sources to provide redundancy for connected devices with only one power source. If the selected power source exceeds the desired thresholds or fails, the ATS PDU automatically switches to the other power source to ensure continuous operation.

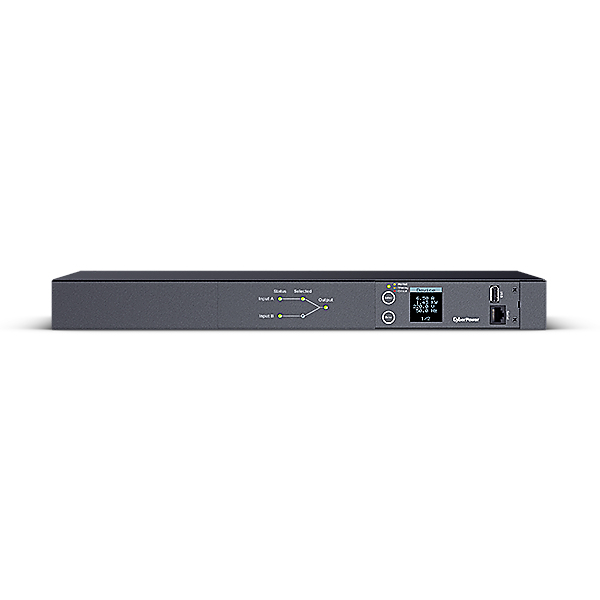

The device is equipped with a hot-swappable multi-function display that shows real-time data such as current, input voltage and power consumption in amps and watts. The digital LCD display is also color configurable and allows for easy maintenance and monitoring of the ATS-PDU. Users can change the colors of the LCD display to easily categorize devices in server rooms and IT environments. The firmware can also be conveniently updated via the USB port, making the latest features and updates available to users. The product can be connected to a PC via the serial port to locally control the ATS PDU. Features: Real-time local monitoring Industrial-grade metal housing User-configurable color LCD LED status indicator User-upgradable firmware Cable holder Dual input Real-time digital load indicator Hot-swappable LCD Firmware upgrade via USB Flexible rack mounting IEC power outlet

Certificates
Compliance certificates	CE, RoHS
Certification	CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368
Design
PDU types	Managed, Switched
Type	Single-phase
Form factor	Rackmount
Rack capacity	1U
Mounting	Horizontal
Housing material	Steel
Product colour	Black
Display	LCD
On/off switch
Features
Cable length	3.05 m
Daisy chain
LED indicators
Logistics data
Country of origin	China
Management features
Monitoring	Current, Power, Voltage
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-15 - 55 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 15000 m
Packaging data
Package weight	5.7 kg
Package width	550 mm
Package depth	398 mm
Package height	125 mm
Ports & interfaces
AC outlets quantity	12 AC outlet(s)
Power plug	IEC 60320
AC outlet types	C13 coupler
Ethernet LAN (RJ-45) ports	1
USB ports quantity	1
Power
Nominal input voltage	200 - 240 V
AC input frequency	50 - 60 Hz
Maximum current	12 A
Sustainability
Sustainability compliance
Weight & dimensions
Width	433 mm
Depth	215 mm
Height	44 mm
Weight	3.5 kg

---
