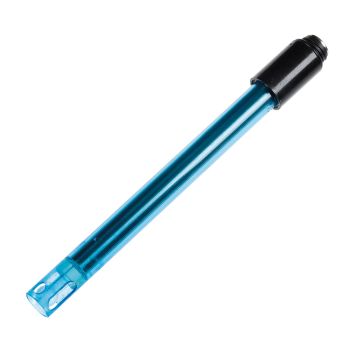

Chauvin Arnoux XV41-BNC XV41 pH probe with BNC connector
|
196,80 EUR |
|||||||||||
|
( 234,19 EUR incl. VAT ) ≈ £164.13 | ≈ $219.83 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1182015 | ||||||||||
| Mfg Part No: | XV41-BNC | ||||||||||
| UPC/EAN: | 3663653007351 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Chauvin Arnoux XV41-BNC:
The XV41-BNC is a pH measuring electrode from the manufacturer Chauvin Arnoux, specifically designed for use in laboratory and field applications. It features a robust PVC body that protects the electrode from mechanical stress and reduces breakage risks in case of impacts. The electrode is equipped with a spherical tip, suitable for precise measurement in liquid samples. As an indicator electrode, it responds to the concentration of hydrogen ions (H⁺) in the sample, with the thin glass membrane at the end of the electrode generating the measurement voltage. This voltage is converted into a pH value by the measuring device. The XV41-BNC is designed as a separate measuring electrode, meaning it must always be used in combination with a reference electrode to form a complete measurement circuit. The use of separate electrodes is particularly advantageous when the service life of the measuring electrode is shorter than that of the reference electrode, which is often the case in certain applications.
Applications
The electrode is suitable for general pH measurements in liquid media, particularly in laboratory environments and in the field. Due to its robust construction, it is also suitable for applications involving mechanical stress. The recommended application includes general measurements requiring accurate determination of the pH value in the range of 0 to 12. The electrode is not intended for use with semi-solid or solid media, as the spherical tip is not designed for such materials.
Functions and Equipment in Detail
The XV41-BNC features a universal glass, enabling accurate measurement up to a pH value of 12. The glass membrane reacts sensitively to H⁺ ions in the sample and generates a voltage proportional to the hydrogen ion activity. The PVC body protects the sensitive glass membrane and enhances the mechanical stability of the electrode. The electrode is equipped with a BNC connector, ensuring a secure and reliable connection to the measuring device. The cable length is 1 meter, providing sufficient reach for use in laboratory and field applications.
Technology Explained Simply
pH measurement is carried out via the potential difference between the measuring electrode (XV41-BNC) and a reference electrode. The measuring electrode generates a voltage dependent on the concentration of hydrogen ions in the sample. The reference electrode provides a constant reference potential. The measuring device detects the difference between these potentials in millivolts (mV) and then converts it into a pH value. The XV41-BNC serves as the indicator electrode, reacting to ion concentration. The combination of both electrodes enables precise and reproducible measurement.
Compatibility and Accessories
The XV41-BNC can be used in combination with reference electrodes of type BR41, BR42, XR41, or XR42. These reference electrodes feature an Ag/AgCl reference system and a refillable KCl electrolyte (1 mol/L). The electrode is not intended for use with ORP measuring electrodes or other measurement systems. Compatibility is limited to the specified reference electrodes, as the measurement circuit only functions with a suitable reference electrode. The electrode is not suitable for use in semi-solid or solid media.
Installation and Mounting
The XV41-BNC is mounted by directly connecting it to the measuring device via the BNC connector. The electrode is immersed into the liquid to be measured, ensuring the spherical tip remains fully submerged in the sample. The 1-meter cable length allows flexible positioning of the measuring device. No additional mounting aids or tools are required. The connection to the measuring device is made directly via the BNC connector, ensuring a secure and interference-free transmission.
Operational Advantages
The XV41-BNC offers high mechanical robustness due to its PVC body, minimizing breakage risks in case of impacts. The spherical tip enables precise measurement in liquid samples. The use of a universal glass allows accurate measurement up to pH 12. The BNC connector ensures a reliable and secure connection to the measuring device. The electrode is suitable for laboratory and field applications and provides high reliability in pH measurement. The combination with a reference electrode enables precise and reproducible measurement, with the service life of the measuring electrode being independent of that of the reference electrode.
Applications
The electrode is suitable for general pH measurements in liquid media, particularly in laboratory environments and in the field. Due to its robust construction, it is also suitable for applications involving mechanical stress. The recommended application includes general measurements requiring accurate determination of the pH value in the range of 0 to 12. The electrode is not intended for use with semi-solid or solid media, as the spherical tip is not designed for such materials.
Functions and Equipment in Detail
The XV41-BNC features a universal glass, enabling accurate measurement up to a pH value of 12. The glass membrane reacts sensitively to H⁺ ions in the sample and generates a voltage proportional to the hydrogen ion activity. The PVC body protects the sensitive glass membrane and enhances the mechanical stability of the electrode. The electrode is equipped with a BNC connector, ensuring a secure and reliable connection to the measuring device. The cable length is 1 meter, providing sufficient reach for use in laboratory and field applications.
Technology Explained Simply
pH measurement is carried out via the potential difference between the measuring electrode (XV41-BNC) and a reference electrode. The measuring electrode generates a voltage dependent on the concentration of hydrogen ions in the sample. The reference electrode provides a constant reference potential. The measuring device detects the difference between these potentials in millivolts (mV) and then converts it into a pH value. The XV41-BNC serves as the indicator electrode, reacting to ion concentration. The combination of both electrodes enables precise and reproducible measurement.
Compatibility and Accessories
The XV41-BNC can be used in combination with reference electrodes of type BR41, BR42, XR41, or XR42. These reference electrodes feature an Ag/AgCl reference system and a refillable KCl electrolyte (1 mol/L). The electrode is not intended for use with ORP measuring electrodes or other measurement systems. Compatibility is limited to the specified reference electrodes, as the measurement circuit only functions with a suitable reference electrode. The electrode is not suitable for use in semi-solid or solid media.
Installation and Mounting
The XV41-BNC is mounted by directly connecting it to the measuring device via the BNC connector. The electrode is immersed into the liquid to be measured, ensuring the spherical tip remains fully submerged in the sample. The 1-meter cable length allows flexible positioning of the measuring device. No additional mounting aids or tools are required. The connection to the measuring device is made directly via the BNC connector, ensuring a secure and interference-free transmission.
Operational Advantages
The XV41-BNC offers high mechanical robustness due to its PVC body, minimizing breakage risks in case of impacts. The spherical tip enables precise measurement in liquid samples. The use of a universal glass allows accurate measurement up to pH 12. The BNC connector ensures a reliable and secure connection to the measuring device. The electrode is suitable for laboratory and field applications and provides high reliability in pH measurement. The combination with a reference electrode enables precise and reproducible measurement, with the service life of the measuring electrode being independent of that of the reference electrode.
| General | |
| Min. volume | 0,5 mL |
Questions & answers
What is the delivery time of Chauvin Arnoux XV41-BNC XV41 pH probe with BNC connector?
The article Chauvin Arnoux XV41-BNC XV41 pH probe with BNC connector is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux XV41-BNC to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Chauvin Arnoux XV41-BNC XV41 pH probe with BNC connector always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux XV41-BNC XV41 pH probe with BNC connector if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Chauvin Arnoux XV41-BNC XV41 pH probe with BNC connector we can offer you a price of 195,32 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
