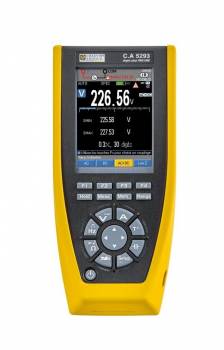

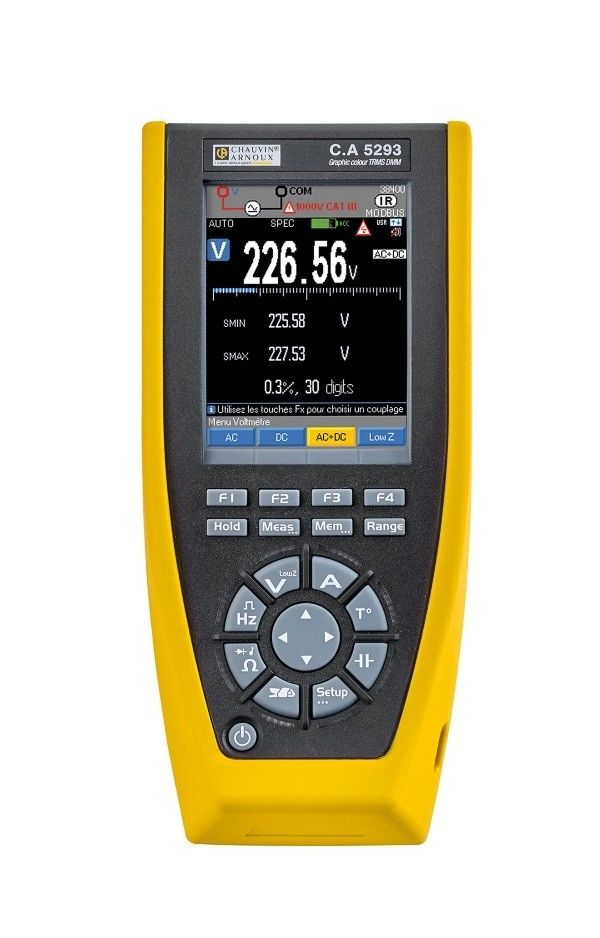

Chauvin Arnoux P01196803 CA 5293 color graphics multimeter

Highlights:

• The reference for multimeters in both laboratory and field applications
• Graphical color display with data logger function for instant visualization of trends, waveforms, and additional parameters
• Bandwidth up to 200 kHz
• Basic accuracy of 0.02 %
• Numerous functions and analysis tools: Monitoring MIN, MAX, AVG, and PEAK values with timestamps, math functions …
• Optical USB interface for data processing and analysis with SX-DMM software

Description:

Key Features

• Display: Graphical trend display, simultaneous multi-parameter visualization, waveform display up to 600 Hz
• Analysis Tools: MIN, MAX, AVG, and PEAK values with timestamps, filtering, duty cycle measurement, …
• Ergonomics: IP67 protection, IEC61010-compliant safety terminals for 1000 V CAT III / 600 V CAT IV, USB charging
• Performance: 100 k counts, bandwidth 200 kHz, accuracy 0.02 %
• Connectivity: USB, Bluetooth, and Android app compatibility via SX-DMM software, SCPI-programmable

Description
ASYC IV series multimeters are portable devices with graphical color displays for measuring key electrical parameters and instant visualization of signal trends and waveforms. Compact and robust, these IP67-rated devices are dustproof and waterproof, ensuring reliable performance even in challenging environments.

In addition to core measurement capabilities, the multimeters offer advanced features like relative measurements, MATH functions, and direct measurement of high currents using external current clamps, making them versatile tools for precision metrology.

Functions and Features:

• Graphical Display:
- 320 x 240-pixel matrix color screen, clearly readable with a black background
- Graphical representation of multiple parameters and signal trends
- Waveform display up to 600 Hz
- Curve display with cursors and zoom for recorded values
- Internal storage of up to 30 measurement sequences


• Data Logger:
- Stores up to 30,000 measurement values
- Adjustable measurement counts, intervals, and recording durations
- Interactive zoom functionality for recorded values
- Monitoring mode for displaying MIN, MAX, AVG, and PEAK values with timestamps


• Rugged and Versatile:
- IP67 protection for demanding environments
- Rechargeable Ni-MH AA batteries providing up to 100 hours of operation
- Rechargeable during use


• Connectivity:
- USB and Bluetooth interfaces
- Compatible with SX-DMM software and Android app


Technical Specifications:

• Measurement Ranges:
- Voltage: Up to 1000 V AC/DC
- Current: Measurable via external current clamps
- Frequency: Up to 200 kHz

• Accuracy: 0.02 %
• Storage Capacity: Stores up to 30 measurement sequences internally
• Power Supply: Rechargeable Ni-MH AA batteries

Included Accessories:

ASYC IV multimeter, USB cable, SX-DMM software, Ni-MH batteries, user manual.
