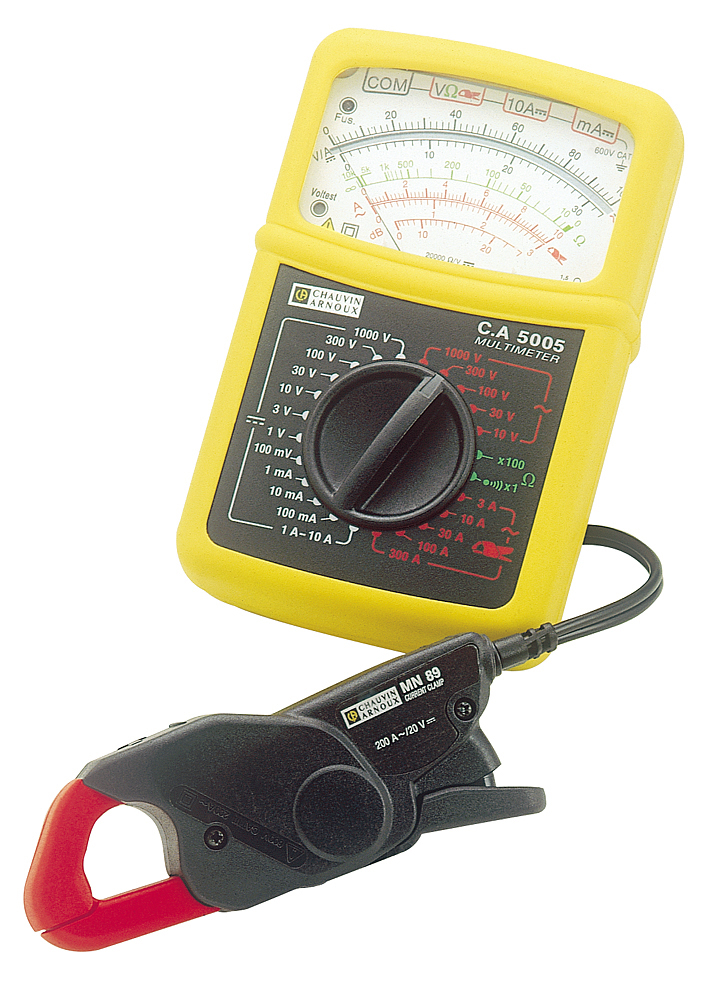

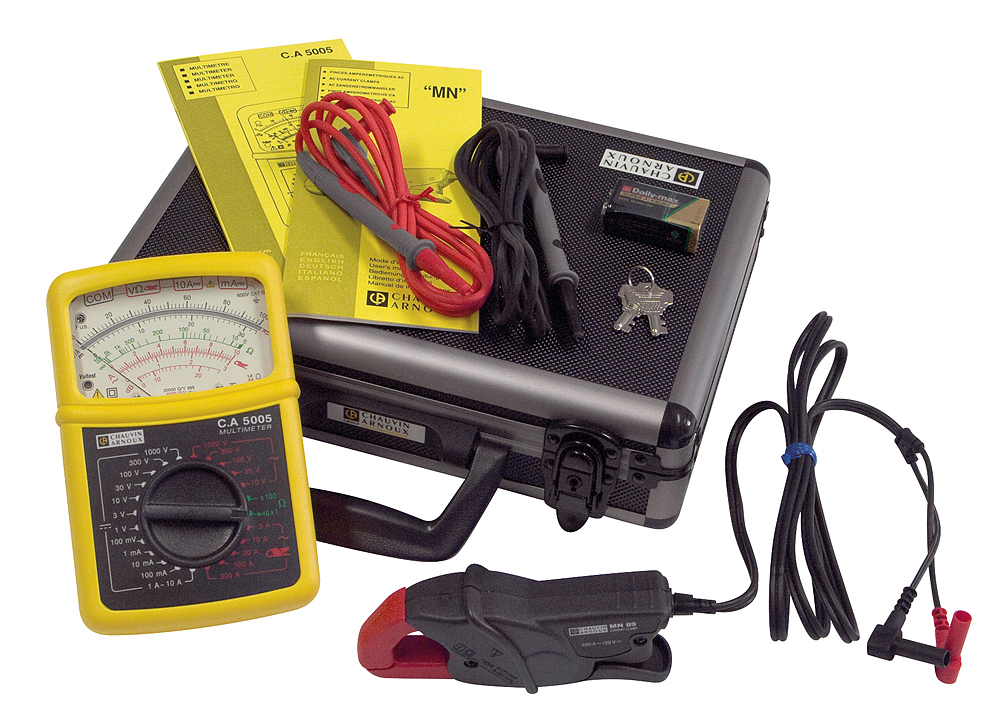

Chauvin Arnoux P01196523F CA 5005 analog multimeter incl. mini clamp MN 89 and transport case
|
528,22 EUR |
|||||||||||
|
( 628,58 EUR incl. VAT ) ≈ £440.54 | ≈ $590.02 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 750782 | ||||||||||
| Mfg Part No: | P01196523F | ||||||||||
| UPC/EAN: | 3760171414057 | ||||||||||
| Weight: | 0.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Multimeters from Chauvin ArnouxFurther products in category Multimeters
All products of Chauvin Arnoux
Product information for Chauvin Arnoux P01196523F:
Highlights:
• Analog multimeter with compact, shock-resistant housing and foldable stand
• “Fus” indicator light to show the status of fuses for current measurement ranges
• Includes µA range for measuring very small currents
• Electronic protection and high-performance fuses
• Automatic zero adjustment in ohmmeter mode
• “Voltest” indicator light signals the presence of stray voltages during resistance measurement and continuity testing

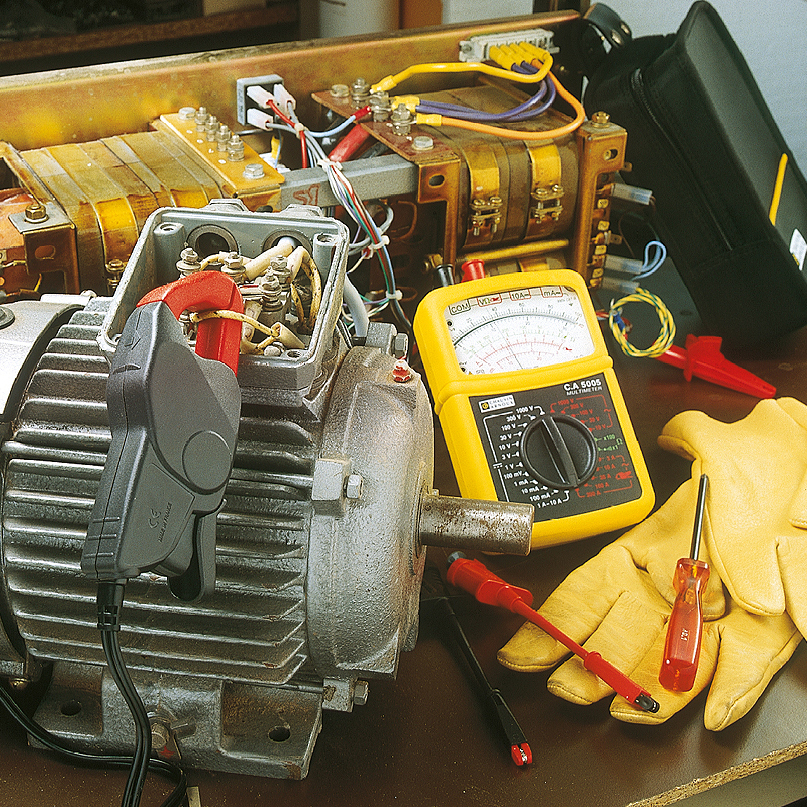

• Direct reading of motor currents with the MN 89 clamp
• Basic functions: V AC, V DC, A AC, A DC, resistance, acoustic continuity testing
Description:
The C.A 5005 is an affordable analog multimeter that meets all the measurement needs of electricians.
The device is supplied with an MN 89 current clamp, enabling direct reading of AC currents up to 200 A AC.
Technical Specifications:
- DC Voltage: 100 mV to 600 V (8 ranges)
- AC Voltage: 10 V to 600 V (5 ranges)
- DC Current: 50 µA to 10 A (6 ranges)
- AC Current: 3 A to 240 A (5 ranges) with included MN 89 mini clamp
- Automatic zero adjustment in ohmmeter mode
- “Voltest” indicator light signals stray voltages during resistance measurement or continuity testing
- Typical Accuracy: 1.5%
- Input Impedance: 20 kΩ/V
- Resistance Measurement: 10 kΩ and 1 MΩ
- Acoustic Continuity Testing: R < 50 Ω
- Additional Features: - dB scale (AC Voltage)
- Fuse status indicator
Dimensions: 160 x 105 x 56 mm
Weight: 500 g
Protection Class: IP53
Usage: Suitable for all systems up to CAT III 600 V according to IEC/EN 61010-1 Edition 2 or below.
| Eigenschaften | |
| Dimensions / weight | 160 x 105 x 56 mm / 500 g |
