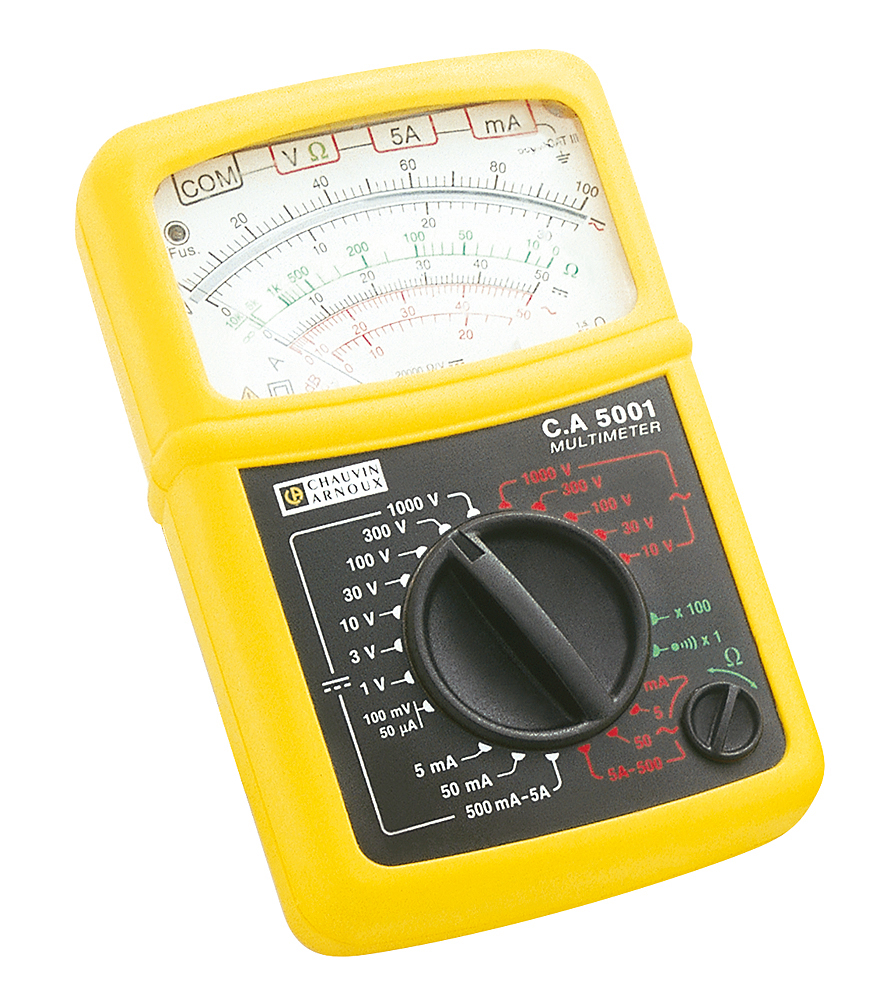

Chauvin Arnoux CA 5001 Analog Multimeter
|
297,92 EUR |
|||||||||||
|
( 354,52 EUR incl. VAT ) ≈ £248.47 | ≈ $332.78 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 327236 | ||||||||||
| Mfg Part No: | P01196521E | ||||||||||
| UPC/EAN: | 3760171414033 | ||||||||||
| Weight: | 0.2 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Chauvin Arnoux P01196521E:
Highlights:
• Analog multimeter with compact, shock-resistant housing and foldable stand
• “Fus” indicator light to show fuse status for current measurement ranges
• Includes µA range for measuring very small currents
• Electronic protection and high-performance fuses
• Basic functions: V AC, V DC, A AC, A DC, resistance, acoustic continuity testing
Description:
The C.A 5001 is an affordable analog multimeter that meets all the measurement needs of electricians.
Technical Specifications:
- DC Voltage: - Ranges: 100 mV to 600 V (8 ranges)
- AC Voltage: - Ranges: 10 V to 600 V (5 ranges)
- DC Current: - Ranges: 50 µA to 5 A (5 ranges)
- AC Current: - Ranges: 5 mA to 5 A (4 ranges)
- Resistance Measurement: - Ranges: 10 kΩ and 1 MΩ
- Acoustic Continuity Testing: R < 50 Ω
- Additional Features: - dB scale (V AC)
- Accuracy: 1.5% or 2.5% for 100 mV range
- Frequency Range: [20 Hz – 100 kHz] for 10 V range, [20 Hz – 1 kHz] for 300 V and 1000 V ranges
- Accuracy: 2.5% or 3% for 100 mV range
- Impedance: 20 kΩ/V
- Frequency Range: [40 Hz – 5 kHz]
- Accuracy: 2.5% to 5% for 5 A range
- Fuse indicator light
Dimensions: 160 x 105 x 56 mm
Weight: 500 g
Usage: Suitable for all systems up to CAT III 600 V according to IEC/EN 61010-1 Edition 2 or below.
| Eigenschaften | |
| Dimensions / weight | 160 x 105 x 56 mm / 500 g |
