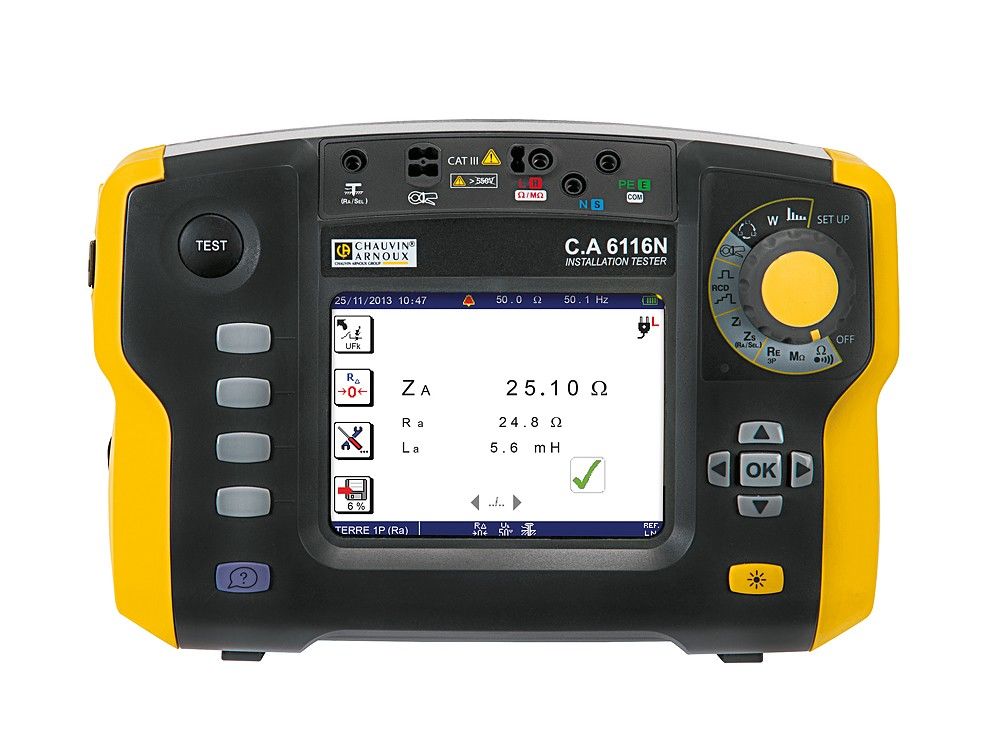

Chauvin Arnoux P01145455F CA 6116N installation tester including DataView software

Highlights:

• Comprehensive multifunctional device with advanced measurement and evaluation functions for demanding electrical installation tests per DIN VDE 0100-600, DIN VDE 0105-100, etc.
• Testing of RCDs / FIs (Types AC, A, F) in ramp mode, with or without tripping
• Powerful lithium-ion battery with up to 30 hours of operation
• Additional functions: Selective earth resistance with clamp, voltage, current with clamp, power, waveforms, and harmonics
• Structured data storage across 3 levels: Location / Room / Object
• Efficient context-sensitive help for each measurement, including connection diagrams and safety warnings

Description:

The C.A 6116N is a versatile universal device for testing electrical installations according to national and international standards such as IEC 60364-6, NF C 15-100, VDE 100, and FD C 16-600. Featuring modern design, user-friendly operation, and precise measurement functions, it is ideal for industrial, service, and residential applications.

Ergonomics:

The robust and compact C.A 6116N ensures quick setup and easy handling. The color LCD graphical display with backlighting provides clear and comprehensive result visualization.

A rotary switch enables fast access to all functions. Context-sensitive help and connection diagrams guide users step by step through measurements. The device's memory can store up to 1000 measurements, which can be exported via a USB connection.

Measurement Functions:

The C.A 6116N delivers stable measurements even under challenging conditions. The following tests are supported:

• Continuity testing
• Resistance measurement
• Insulation resistance
• Earth and selective earth resistance
• Loop impedance testing
• Fault current testing (Type A and AC)
• Voltage measurement
• Frequency measurement
• Current measurement with clamp
• Active power measurement
• Harmonic analysis
• Rotation direction display

Result Analysis:

The DataView® software allows for measurement evaluation and report creation. When connected to a PC, the device is automatically recognized, and data can be accessed via a tree structure.
Predefined report templates compliant with standards are available and customizable. The integrated ICT software simplifies the analysis and organization of stored measurements.

Technical Specifications:

• Power Supply: Lithium-ion battery, up to 30 hours of operation
• Storage Capacity: Up to 1000 measurements
• Display: Color LCD screen with backlighting
• Measurement Systems: TT, TN, IT
• Standards: IEC 60364-6, NF C 15-100, VDE 100, FD C 16-600
• Interface: USB for data transfer
• Weight: Compact and lightweight for mobile use

Accessories:

The device comes with a sturdy carrying case. A hand strap and a shoulder strap are included for hands-free operation.
