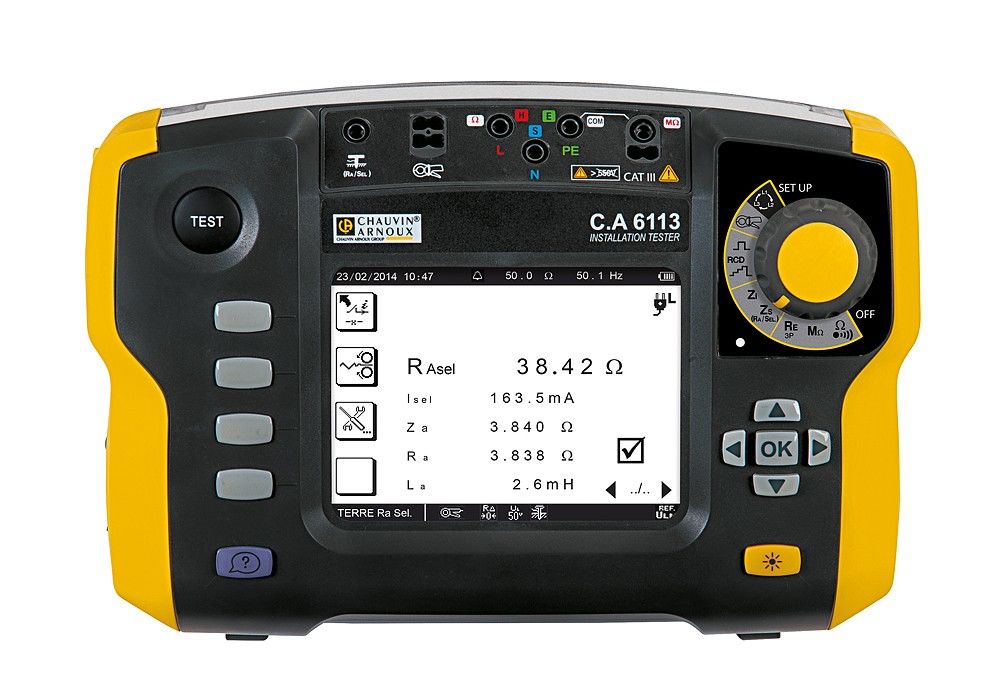

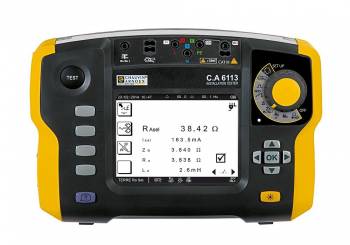

Chauvin Arnoux P01145445 CA 6113 installation tester
|
1.664,40 EUR |
|||||||||||
|
( 1.980,64 EUR incl. VAT ) ≈ £1,388.11 | ≈ $1,859.13 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1927853 | ||||||||||
| Mfg Part No: | P01145445 | ||||||||||
| UPC/EAN: | 3760171418413 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Measurement from Chauvin ArnouxFurther products in category Measurement
All products of Chauvin Arnoux
Product information for Chauvin Arnoux P01145445:
Highlights:
• Comprehensive multifunctional device with advanced measurement functions for demanding electrical installation tests per DIN VDE 0100-600, DIN VDE 0105-100, and more
• Testing of RCDs / FIs (Types AC, A, F) in ramp mode, with or without tripping
• Powerful NiMH battery providing up to 24 hours of operation
• Additional measurements, including selective earth resistance with clamp, voltage, and current with clamp
• Efficient context-sensitive help for each test, including connection diagrams and safety warnings
Description:
The C.A 6113 is a universal testing device designed for verifying electrical installations according to national and international standards such as IEC 60364-6, NF C 15-100, VDE 100, and FD C 16-600. Combining advanced design, ergonomics, and ease of use, it delivers precision, speed, and reliability.
The device is compatible with all earthing systems (TT, TN, IT) and is suitable for applications in industry, services, and residential sectors.
Ergonomics:
The C.A 6113 is compact, robust, and exceptionally user-friendly. Its large monochrome LCD screen with backlighting ensures clear display of results.A rotary switch provides quick access to all functions, while context-sensitive help guides users through measurement procedures as needed. Audible signals and visual warnings support normative interpretation of results.
The device guarantees highly stable measurements, even in environments with significant electromagnetic interference.
Accessories:
The device comes with a durable carrying case and a comprehensive accessory set. A hand strap and a shoulder strap enable hands-free operation.Technical Specifications:
- Earthing Systems: TT, TN, IT
- RCD Testing: Types AC, A, F, ramp mode, with/without tripping
- Earth Resistance: Selective, clamp-based measurements
- Voltage Measurement: Up to 600 V AC/DC
- Current Measurement: With optional current clamp
- Operating Time: Up to 24 hours with NiMH battery
- Display: Monochrome LCD with backlight
- Standards: IEC 60364-6, NF C 15-100, VDE 100, FD C 16-600
- Dimensions: Compact and portable for field use
- Weight: Approx. 1.2 kg
Included Accessories:
- Carrying case
- Hand strap
- Shoulder strap
- Connection cables and test leads
Optional Accessories:
- Current clamps for current and earth resistance measurements
- Additional software for PC integration and report generation
- Extended adapters for specific tests
| Eigenschaften | |
| Range | 4 kΩ / 40 kΩ - 400 kΩ |
| Test voltage | 50 /100 / 250 / 500 / 1000 V DC |
| Dimensions / weight | 280 x 190 x 128 mm / 2,2 kg |
