Chauvin Arnoux P01102022 Accessory set for earthing measurement - 2 earth electrodes (100 m) content_copy

The earthing measurement set from Chauvin Arnoux is an accessory package for resistance and earthing measurement devices using the 1-, 3- or 4-wire method. It is designed for precise and efficient measurement of earthing resistances in professional applications. The set is specifically designed for devices such as the Chauvin Arnoux CA6116 and includes all necessary components for reliable measurement. The equipment is tailored to the requirements in the electrical and safety testing sector, with construction designed for professional use.

Applications
This accessory set is used for earthing measurements to determine the resistance between an earthing point and earth potential. It is suitable for testing in the field of electrical safety, particularly for inspecting protective conductors, earthing systems, and electrical installations. The use of the 1-, 3- or 4-wire method allows flexible adaptation to different measurement tasks, with the 4-wire method being especially suitable for high accuracy at low resistances.

Functions and Equipment in Detail

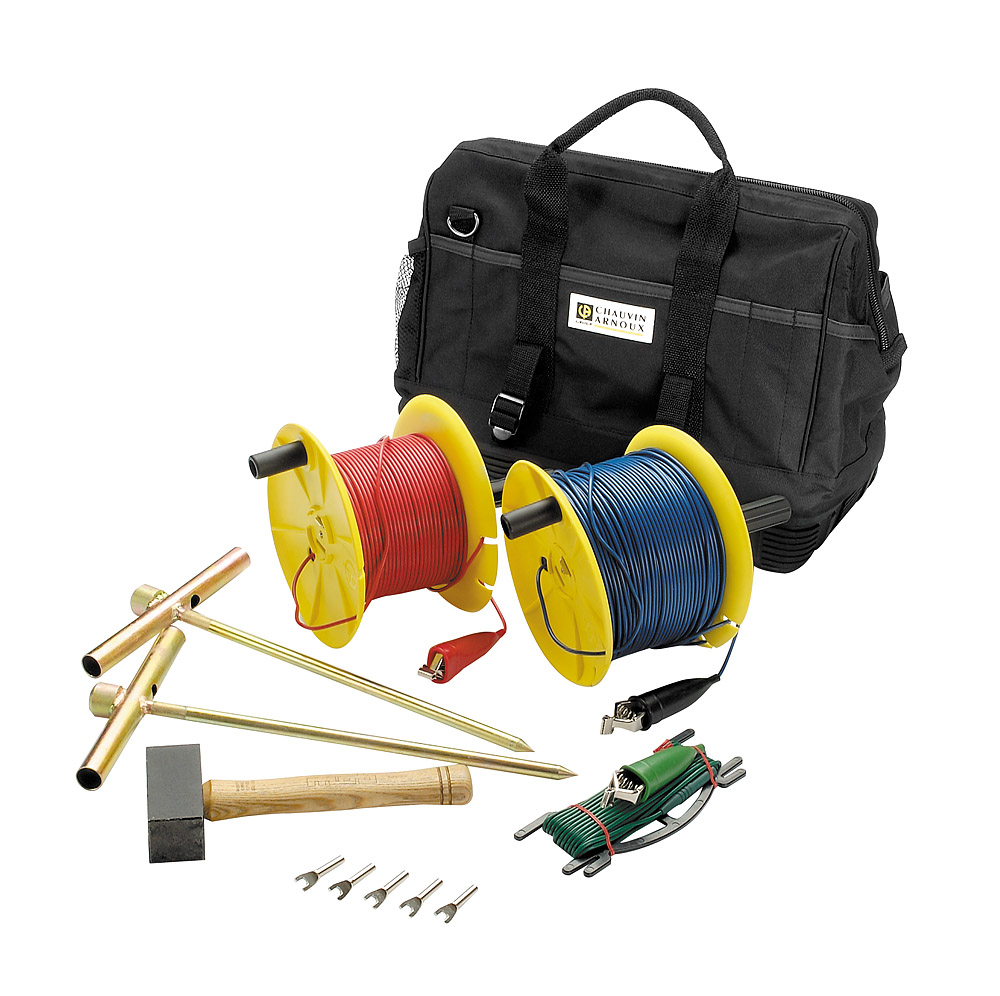

The set includes 2 earth electrodes for insertion into the ground to establish a stable earth contact. The electrodes are connected to 100 m cables, supplied in coloured versions (red, blue, green) to enable easy identification and assignment of the cables. The cables are wound on reels, facilitating transport and handling. Additionally, a hammer is included for inserting the electrodes into the ground. The connection between the measuring device and the cables is made via 5 adapters with fork terminals/banana plugs, ensuring a secure and conductive connection.

Technology Explained Simply
The measurement is performed by connecting the measuring device to the earth cables, with current supply and voltage measurement carried out via the respective cables. The coloured marking of the cables (red, blue, green) supports correct assignment of the cables to the measurement points, reducing errors during connection preparation. The cable length (100 m) provides sufficient reach for most outdoor measurement tasks. The use of fork terminals/banana plugs ensures a mechanically stable and electrically conductive connection, which is also durable for frequent use.

Compatibility and Accessories
The set is specifically developed for the test instrument Chauvin Arnoux CA6116, but can also be used with other devices supporting the 1-, 3- or 4-wire method. For special applications, a set with 3 earth electrodes can be supplemented with an additional set for soil resistance measurement (100 m) with 2 reels and 2 electrodes. Compatible accessories, such as an earthing measurement accessory set with 1 earth electrode (30 m), are also available to increase flexibility for different measurement tasks.

Installation and Mounting
Installation is performed by inserting the earth electrodes into the ground, with the hammer providing support. The cables are connected to the corresponding terminals of the measuring device, with the coloured marking facilitating assignment. The adapters ensure a secure connection between the cables and the measuring device. The transport bag enables easy transport and secure storage of all components.

Advantages in Operation
The robust construction and colour-coded cable layout increase efficiency and safety during measurement. The transport bag ensures orderly transport and protects components from damage. The use of high-quality materials ensures long service life and reliable performance even with frequent outdoor use. The combination of earth electrodes, cables, hammer, and adapters in one set reduces preparation time and simplifies the execution of earthing measurements.
