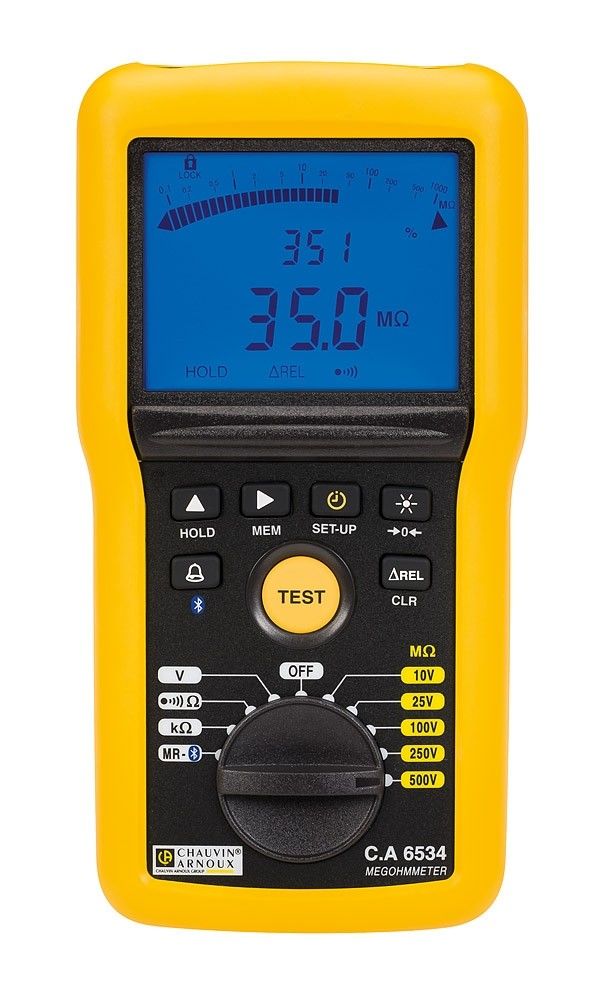

Chauvin Arnoux P01140834 CA 6534 insulation meter

Highlights:

• Digital insulation and continuity tester for insulation resistance measurements up to 50 GΩ
• Five test voltages (10 V / 25 V / 100 V / 250 V / 500 V) for electronics applications
• Ideal for ESD testing in electronics (10 V and 100 V)
• Measures resistance of flooring and installed floor surfaces with optional probes
• Standard-compliant continuity testing with 200 mA or 20 mA test current, with lead compensation
• Memory for 1300 measurements and Bluetooth interface for data transfer and analysis
• Multimeter functions: Voltage (TRMS & DC), resistance

Description:

Strengths:
Networkable insulation and continuity tester for electronics applications:
– Measurement range up to 50 GΩ at test voltages from 10 V to 500 V
– Specialized for ESD testing in electronics installations
– Flexible test modes: Manual, continuous, timer
– ΔREL function for deviation measurement from reference values
– Data logging and Bluetooth integration for seamless analysis

Ergonomics:

– Compact, rugged design (IP54, IK04) for challenging environments
– Magnetic fold-out stand for hands-free operation on metal surfaces
– Large backlit dual display with bargraph for test values and parameters
– Remote control probe with light for work in dark environments

Insulation Testing:

– Multiple test voltages for versatile applications (10 V to 500 V)
– Lock mode for continuous tests and programmable timers
– Insulation resistance measurement up to 50 GΩ

Continuity Testing:

– 200 mA test current per IEC 61557, or optional 20 mA
– Automatic voltage shutdown for overload protection

Additional Functions:

– Multimeter capabilities: TRMS voltage measurement up to 700 V, resistance measurement up to 1000 kΩ
– Customizable alarms for test values
– ΔREL function to display deviations from reference values
– Bluetooth connectivity for real-time data transfer

Convenient Analysis:

– Stores up to 1300 measurements
– Megohmmeter Transfer (MEG) software for analysis and reporting
– Optional DataView® software for advanced reporting with location and operator details

Technical Specifications:

– Test voltages: 10 V, 25 V, 100 V, 250 V, 500 V
– Insulation resistance: up to 50 GΩ
– Test modes: Manual, continuous, timer
– Continuity testing: Test currents 200 mA / 20 mA
– Voltage measurement: up to 700 V
– Resistance measurement: 0 – 1000 kΩ
– Memory: 1300 measurements
– Magnetic mount
– Connectivity: Bluetooth Class 2
– Power supply: 6 x LR6 / AA batteries
– Dimensions: 211 x 108 x 60 mm
– Weight: 850 g
– Protection:(IP54, Category: 600 V CAT IV
