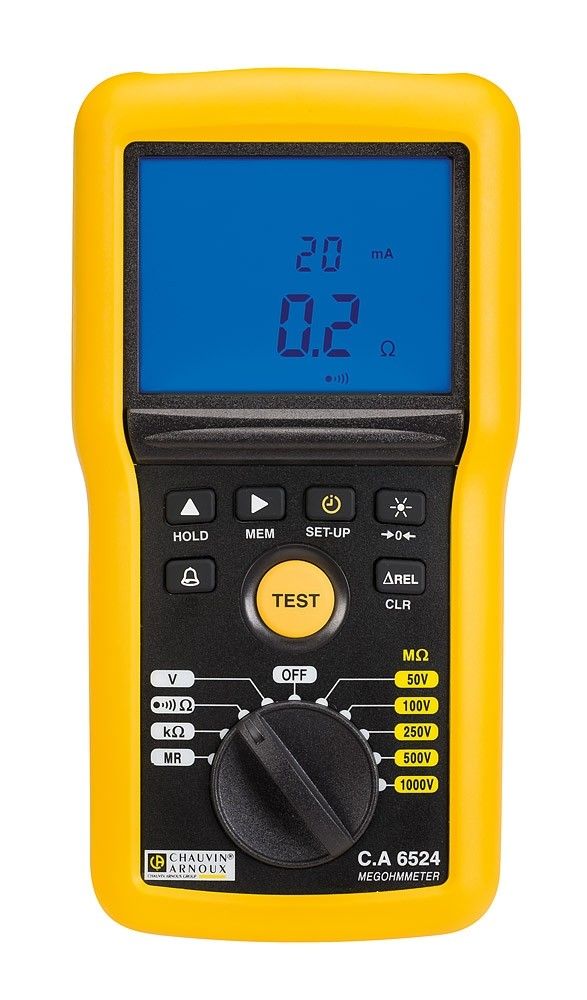

Chauvin Arnoux P01140824 CA 6524 insulation meter
|
678,15 EUR |
|
|
( 807,00 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 0 workdaysinfo_outline | |
| Lieske Part No.: | 1927837 |
|---|---|
| Mfg Part No: | P01140824 |
| Weight: | 0.12 kg |
Product information for Chauvin Arnoux P01140824:
Highlights:
• Digital insulation and continuity tester for insulation resistance measurements up to 200 GΩ for industrial maintenance
• 5 test voltages (50 V / 100 V / 250 V / 500 V / 1000 V) for various applications
• Standards-compliant continuity testing with 200 or 20 mA test current and lead compensation for improved accuracy
• 4 measurement modes: Manual, continuous, timer, PI / DAR
• Calculation of insulation quality parameters DAR (Dielectric Absorption Ratio) and PI (Polarization Index)
• Memory for 300 measurement results: Compare results with previous measurements
• Multimeter functions: Voltage (TRMS & DC), resistance, frequency
Description:
Insulation and Continuity Tester up to 1 kV Test Voltage
The C.A 652x & C.A 653x series models are versatile and ideal for industrial maintenance, enabling precise diagnostics of insulation and other electrical parameters.
Ergonomics and User Convenience:
- Rugged housing compliant with 600 V CAT IV, IP54/IK04 protection
- Magnetic fold-out stand for easy mounting on steel surfaces
- Large, illuminated dual digital display with logarithmic bargraph
- Remote probe with integrated light for working in dark environments
Functions:
- Insulation Testing: Test voltages from 50 V to 1000 V, measuring range up to 200 GΩ
- Continuity Testing: 200 mA or 20 mA test currents per IEC 61557
- Multimeter Function: Voltage measurement up to 700 V, frequencies up to 800 Hz, resistances up to 1000 kΩ
Customizable Measurements:
- Select between fixed and adjustable alarm thresholds
- ΔREL function to display deviations from stored reference values
Storage and Analysis:
- 300 internal memory slots for measurement results
- Optional: Models with Bluetooth® interface and 1300 memory slots
- PC software Megohmmeter Transfer (MEG) for real-time graphs and data transfer
- Optional: DataView® software for generating test reports
Technical Data:
- Test Voltages: 50 / 100 / 250 / 500 / 1000 V
- Insulation Resistance Range: Up to 200 GΩ
- Test Modes: Manual, locked, timer, PI / DAR assessment
- Continuity Testing: Test currents 200 mA / 20 mA
- Voltage Measurement: Up to 700 V
- Frequency Measurement: 15.3 – 800 Hz
- Resistance Measurement: Up to 1000 kΩ
- Display: Dual digital display and logarithmic bargraph
- Memory: 300 measurement results
- Power Supply: 6 x LR6 / AA batteries
- Dimensions: 211 x 108 x 60 mm
- Weight: 850 g
- Protection Rating: IP54, measurement category 600 V CAT IV
