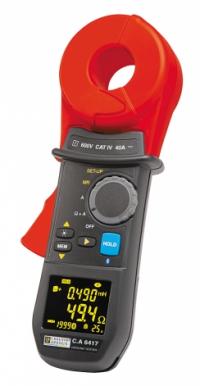

Chauvin Arnoux P01122016 C.A 6417 GROUND TESTER OHM-A-BLUE TOOTH

Highlights:

• Measurement of earth loop resistance and inductance, simultaneous display of Ω and A
• Perfect readability with OLED display, even in bright sunlight
• Equipped with a patented, force-compensating opening system
• Large clamp diameter up to 35 mm
• Storage capacity for 2,000 measurements and Bluetooth communication, ideal for high-volume measurement tasks
• Android app for accessing measurements on smartphones, storing data with GPS coordinates, and sending reports via email
• Clamp calibration possible without returning to the manufacturer using the optional calibration loop CL1

Description:

Ground Clamp Meters – innovative solutions

The C.A 6417 grounding clamp meter provides fast and precise measurement of earth loop resistances. Supplied in a durable carrying case, it is designed for demanding environments and meets the requirements of 600 V CAT IV. During measurements, safety is enhanced with a hazardous voltage alarm for contact voltages.

Ergonomic and technical highlights:

• The patented force-compensating opening system minimizes effort during use.
• An OLED display ensures perfect readability from a 180° angle, even in bright sunlight.
• Automatic features like Pre-HOLD when the clamp is open and iron gap calibration at startup ensure accurate readings.

Simultaneously displayed values:

• Impedance and leakage current (Ω+A)
• Contact voltage
• Resistive and inductive components of grounding impedance

The clamp reduces measurement errors on low resistances by recalculating impedances to a frequency near the mains frequency.

Bluetooth functionality and advanced connectivity:

• Real-time data transfer with PC GTC and/or DATAVIEW® software.
• Automatic or custom report creation.
• Android app for real-time graph display, GPS-based location tracking, and sending data with images and notes via email.

Additional technical data:

• Measurement ranges: 1,500 Ω / 500 µH / 40 A
• Alarms for Ω, A, and V
• Storage for 2,000 measurements with timestamp via real-time clock
• Automatic iron gap calibration at startup
• Warning buzzer and automatic shutdown
• Bluetooth interface for data transfer
• GTC software for data management

Included items:

• Ground clamp meter C.A 6417
• Durable carrying case
• User manual
• Optional: Calibration loop CL1
