Chauvin Arnoux P01120967 F607 power and harmonic measurement clamp content_copy

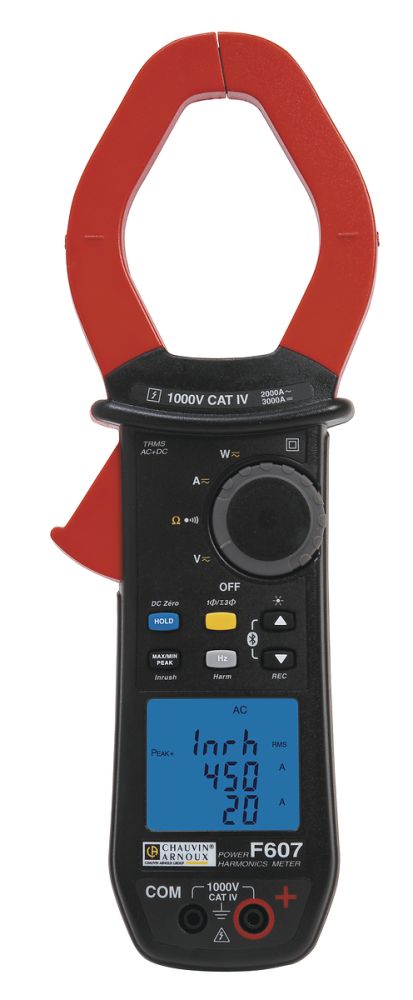

The Chauvin Arnoux F607 is a TRMS AC+DC multi-function clamp meter designed for measuring and analysing electrical parameters in low-voltage distribution networks. The device enables precise measurement of alternating and direct current as well as mixed AC+DC signals, with a current measurement range up to 2000 A for AC and up to 3000 A for DC. The clamp features a digital 12-bit TRMS acquisition system, ensuring high measurement accuracy regardless of signal shape. The best accuracy is 1 % of the reading plus 3 points, suitable for professional applications in electrical engineering.

Applications

The F607 is intended for maintenance, testing, monitoring, analysis, and dimensioning of electrical installations. Its jaw opening diameter of 60 mm allows measurement on cables and conductors in typical low-voltage systems. Automatic detection of AC and DC during voltage and current measurements enhances operational safety and reduces error sources. The IP54 protection rating protects the device against dust and splashing water, making it suitable for use in outdoor or industrial environments.

Functions and Equipment in Detail

The device offers comprehensive functionality: it measures voltage (AC/DC) up to 1000 V, resistance up to 100 kΩ, and performs an audible continuity test (below 40 Ω). Power measurement includes active power (W), reactive power (var), and apparent power (VA), both single-phase and total three-phase. Additionally, power factor (PF) and displacement factor (DPF) are displayed. The True-Inrush function allows determination of inrush currents in motors and other devices. Harmonic analysis extends up to the 25th order, measuring THD-f (Total Harmonic Distortion in frequency) and THD-r (in current). The Ripple function is used for residual ripple analysis.

Technology Explained Simply

TRMS technology (True Root Mean Square) ensures accurate measurement even with distorted or non-sinusoidal signals, which commonly occur with modern electronic loads. Frequency measurement is performed in the range of 5 Hz to 20 kHz. The large, backlit triple display with 10,000 points allows simultaneous display of three measurement values and is easily readable even in poor lighting conditions. Functions such as Min/Max, Peak+/- (±100 ms), and Hold support analysis of short-term signal changes. Automatic power-off protects the battery and extends the device’s lifespan.

Compatibility and Accessories

The F607 is equipped with Bluetooth communication, enabling transfer of measurement data to a PC system. The included PC software allows analysis of recorded values and report generation. Compatible accessories include test leads with 4 mm connectors (straight and angled), test probes, crocodile clips, a multi-purpose magnetic holder, a modem for Bluetooth/USB connection, and a carrying case. These components support safe and efficient use of the device in various application scenarios.

Mounting and Installation

The clamp is simply placed around the cable to be measured, with the 60 mm jaw opening accommodating a wide range of cable diameters. Operation is via a rotary switch, assigning a clear function to each position. The display backlighting improves readability in dark or poorly lit environments. The measurement data storage allows recording up to 3000 measurements, which can be evaluated later.

Operational Advantages

The combination of high measurement accuracy, comprehensive functionality, and robust construction makes the F607 a reliable tool for electrical professionals. The data logger function and Bluetooth connection enable detailed analysis of measurement results, which is beneficial for troubleshooting and documentation of tests. Compliance with IEC 61010 standard with 1000 V CAT IV ensures electrical safety during measurements in high-voltage environments. The warranty period is 3 years.

Scope of Delivery

• Multi-function clamp meter F607
• Operating instructions
• PC software and Bluetooth interface
• Connection cable

Batteries are not included in the scope of delivery.

Eigenschaften
Resistance	100 kΩ
Continuity/buzzer	Ja (< 40 Ω)
Ø Terminal	60 mm
Crest factor (CF)
Backlight function
Min Max button
True-inrush function
Bluetooth communication function

---
