Chauvin Arnoux P01120921 F201 multi-function clamp content_copy

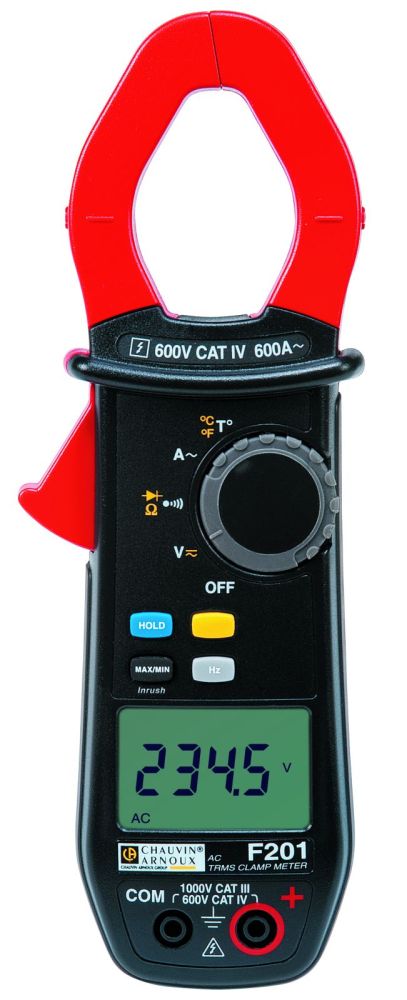

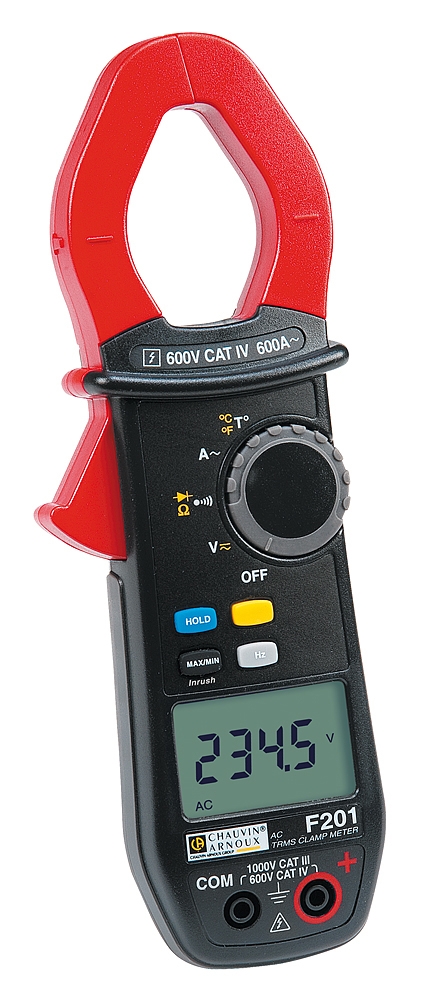

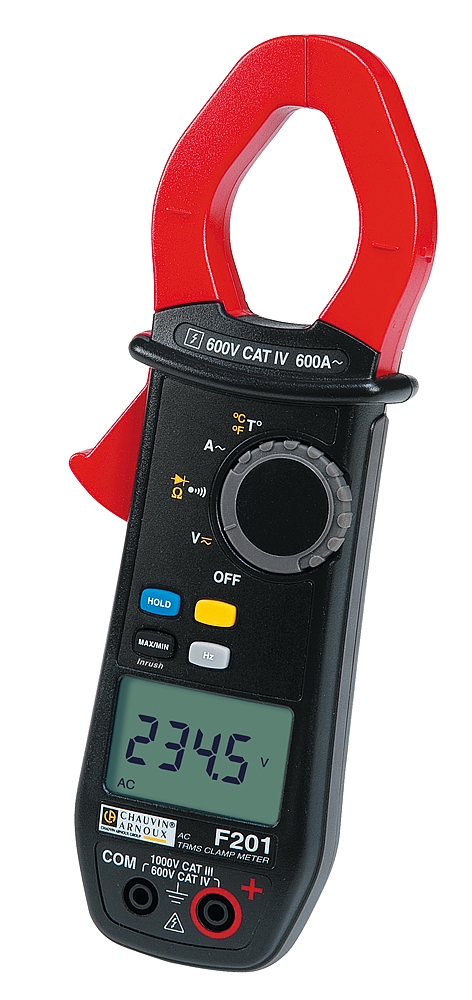

The F201 multi-function clamp meter from Chauvin Arnoux is a TRMS AC measuring instrument specifically developed for applications in the electrical trade and in small and medium-sized enterprises in the electrical industry. The device enables precise measurement of alternating current up to 600 A AC as well as alternating and direct voltage up to 1000 V. It features a jaw opening diameter of 34 mm, making it suitable for measuring cables and conductors with small cross-sections. The clamp meter is equipped with a 12-bit TRMS A/D converter that delivers accurate readings regardless of signal shape, which is particularly advantageous when measuring non-sinusoidal currents.

Applications

The F201 is designed for the diagnosis, maintenance, and servicing of electrical installations. It is particularly suitable for use in electrical installations, testing motors and drives, and monitoring power consumption in industrial and commercial environments. The high safety category CAT IV 600 V ensures safe operation even in main distribution boards and on power supply lines.

Functions and Equipment in Detail

The device offers a wide range of basic functions, including measurement of alternating and direct voltage (up to 1000 V), alternating current (up to 600 A), resistance (up to 60 kΩ), frequency, audible continuity test (adjustable between 1 Ω and 599 Ω), and diode test. Temperature measurement is performed via a Type-K thermocouple input and covers a range from -60.0 °C to +1000 °C (or -76 °F to +1832 °F). Automatic AC/DC detection and automatic range selection (Autorange) simplify operation, as the device automatically adjusts the measurement range. Additional functions include HOLD, MIN, and MAX, which are useful for documenting measurement values and capturing extreme values.

Technology Explained Simply

The TRMS measurement type (True Root Mean Square) ensures that the clamp meter displays accurate values even with distorted or non-sinusoidal signals, which is particularly important for modern electronic devices and frequency converters. The True InRush function enables measurement of inrush currents occurring during the start-up of motors or electronic devices. This function is especially relevant for testing installations and determining power requirements. The device's accuracy is 1 % of the measured value plus 3 digits, which is sufficient for professional applications.

Compatibility and Accessories

The F201 can be combined with various accessories to extend its application range. These include test leads with 4 mm connectors (straight and angled), crocodile clips, test probes, and a carrying case. The test leads are available in various versions, including PVC and silicone insulation, and comply with safety category CAT IV 1000 V. The test probes are also designed for CAT IV 1000 V and provide a safe connection to measurement points. An electrician's accessory kit includes several of these components and simplifies preparation for measurement tasks.

Mounting and Installation

The clamp meter is closed directly around the conductor to be measured, with the jaw opening diameter of 34 mm limiting the maximum conductor thickness. Operation is performed via an ergonomic rotary switch that allows comfortable one-handed use. The test leads are connected to the corresponding sockets on the front of the device. The display is digital and shows measurement values in real time.

Advantages in Operation

The F201 stands out for its combination of functionality, safety, and user-friendliness. Automatic functions such as Autorange and AC/DC detection reduce the risk of operator error. The high safety category CAT IV 600 V makes the device suitable for demanding measurement tasks. Integrated functions such as True InRush, MIN/MAX, and HOLD support efficient performance of inspections and maintenance work. The compact design and ergonomic shape facilitate use in confined workspaces and during mobile operations.

Scope of Delivery

The device is delivered with test leads, a storage case, a user manual, and batteries. These components are intended for immediate use and safe storage of the device.

Eigenschaften
AAC	600 A
VAC	1000 V
Frequency in V / in I	Ja / Ja
Resistance	60 kΩ
Automatic ranges (Autorange)
Automatic AC/DC detection

---
