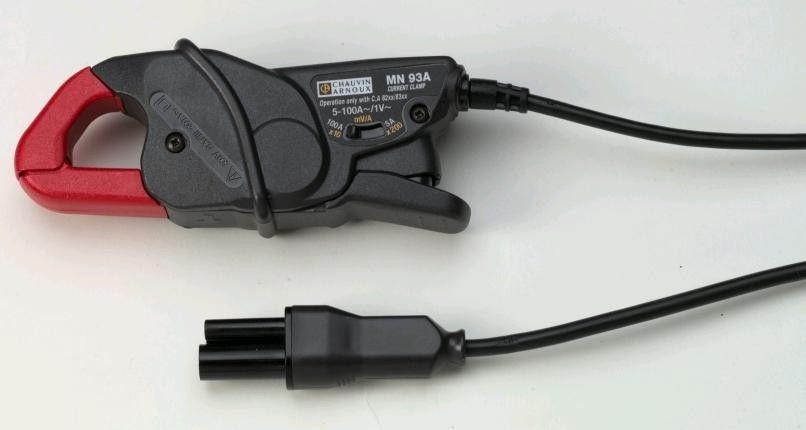

Chauvin Arnoux P01120431B Set of 3 pliers (F) MN 93A
|
729,12 EUR |
|
|
( 867,65 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| Lieske Part No.: | 267294 |
|---|---|
| Mfg Part No: | P01120431B |
| Weight: | 0.2 kg |
Product information for Chauvin Arnoux P01120431B:
Highlights:
- Clamp current transformer for measuring very low to medium AC currents
- Enclosure Ø: 52 mm
- Input: Measurement range 1 mA…1200 A
- Output signal: Alternating current
- Transformation ratio: 1000/1, Typical accuracy: ≤ 0.3%
- Output: Sockets (Ø 4 mm, insulated), with surge protection
- Suitable for power measurement (low phase shift)
Description:
The "C" series includes high-performance clamp current transformers for up to 1000 A. The round jaw shape and uniform coil winding ensure high accuracy and minimal phase shift.
The optimal adjustment of the magnetic circuit using a pendulum joint system and a patented support system for progressive jaw opening simplifies operation.
With an enclosure diameter of 52 mm, CAT III 600 V measurements can be performed on most conductors in industrial and office building environments.
Thanks to the low phase shift and high linearity, this clamp current transformer, equipped with a µ-metal core, is excellent for power measurements.
Technical Data:
- Output signal: Alternating current
- Transformation ratio: 1000/1
- Measurement range: 1 mA…1200 A
- Typical accuracy: ≤ 0.3%
- Output: Sockets (Ø 4 mm, insulated)
- Surge protection on the output
- Enclosure diameter: 52 mm
- Safety category: CAT III 600 V
- Application: Power measurement and AC current measurement with high accuracy
Included Items:
- Clamp current transformer model C112
- User manual
