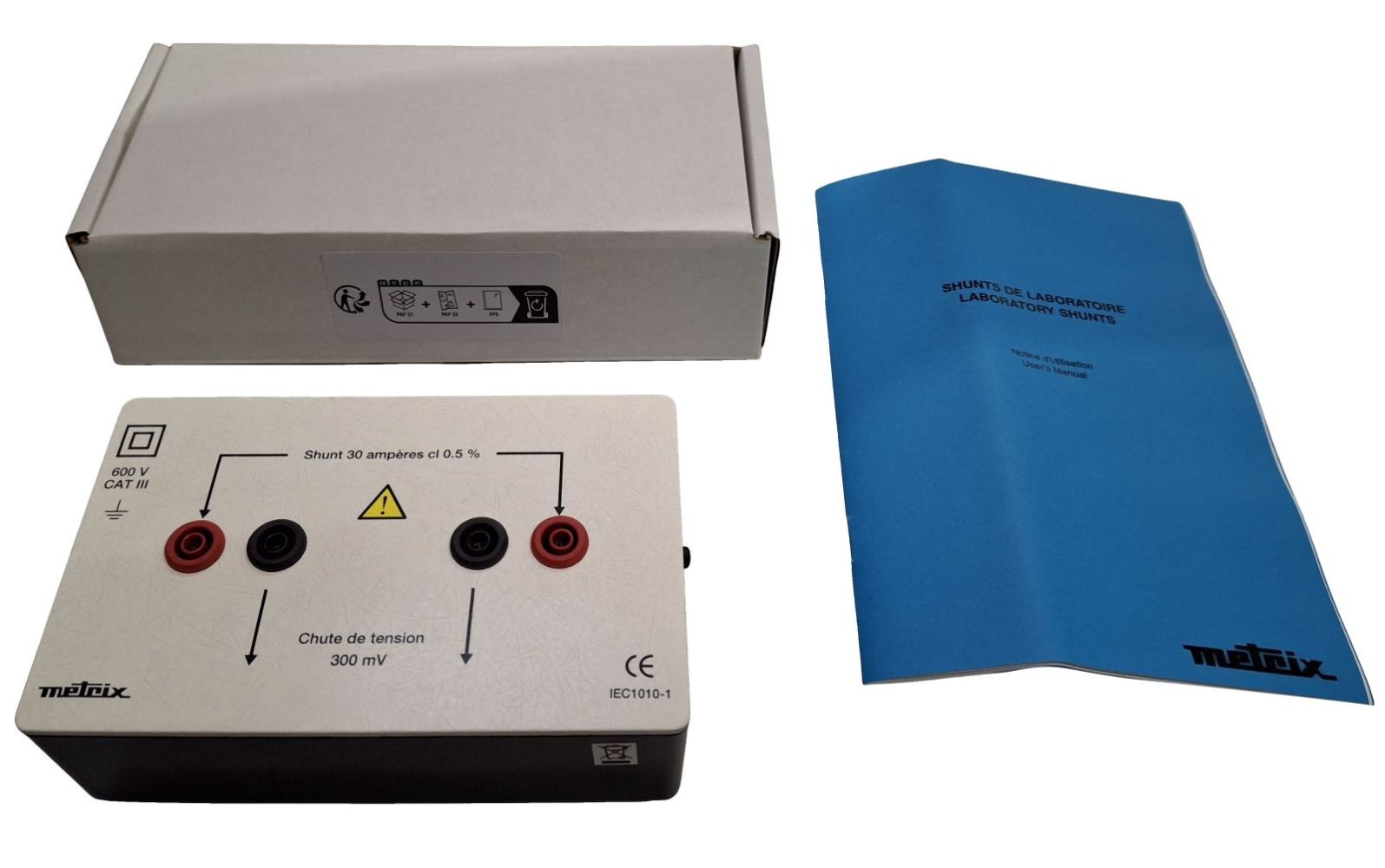

Chauvin Arnoux HA030-1 Shunt resistor 30 A – 300 mV

Your rating:
Average rating
product review for Chauvin Arnoux HA030-1 Shunt resistor 30 A – 300 mV
( 4.6 / 5 ) 14 ratings
Chauvin Arnoux HA030-1
This image may differ from the desired article.
201,88 EUR
( 240,24 EUR incl. VAT )
≈ £168.17  |  ≈ $221.46
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux HA030-1 Shunt resistor 30 A – 300 mV
Lieske Part No.:570731
Mfg Part No: HA030-1
UPC/EAN: 3663653004657
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
5200,37 EUR
10198,85 EUR
15197,34 EUR
20195,82 EUR

Product information for Chauvin Arnoux HA030-1:

The laboratory shunt from Chauvin Arnoux, type HA030-1, is a measuring shunt for precise and safe measurement of high direct currents (DC) in conjunction with a voltmeter. It serves as a resistance element connected in series with the circuit to be measured, creating a known voltage drop that can be measured with a voltmeter and converted into current. The design is specifically intended for use in laboratory environments and technical education, with safety and measurement accuracy being the primary focus.

Applications

The shunt is designed for measuring direct currents up to 30 A, with a voltage drop of 300 mV at rated current. This allows for use with standard voltmeters capable of accurately displaying small voltages. Applications include educational environments, testing of electrical devices, or laboratories where safe and reproducible current measurement is required. The protective insulation in accordance with IEC 61010, CAT III 600 V, makes it suitable for use in electrical installations with operating voltages up to 600 V.

Functions and Equipment in Detail

The shunt features safety sockets with a diameter of 4 mm, ensuring a secure and reliable connection. These sockets are designed to provide enhanced safety in case of incorrect handling or short-circuiting. The housing is impact-resistant and self-extinguishing, increasing operational safety in demanding work environments. The material selection ensures that the device does not easily ignite even under mechanical stress or in the event of a short circuit.

Technology Explained Simply

The shunt operates on the principle of a shunt: the current to be measured flows through the resistance, creating a voltage drop proportional to the current. This voltage drop is measured with a voltmeter, and the current can be calculated from the ratio of voltage to resistance. The accuracy class 0.5 means that the deviation of the measured value from the actual value is at most 0.5 %. The very low temperature coefficient ensures that resistance values remain stable even with temperature fluctuations, securing measurement accuracy over extended periods.

Compatibility and Accessories

The shunt is designed for use with voltmeters capable of accurately displaying voltages in the range of 300 mV. It is part of a range that also includes other rated currents such as 1 A, 5 A, 10 A, and 20 A. Use with other measuring instruments is possible, provided the voltage measurement can be performed within the range of the generated voltage drop. The safety sockets allow for easy and secure connection with standard test leads.

Mounting and Installation

Installation is carried out by directly connecting the shunt in series within the current circuit. The safety sockets allow for simple and secure connection with test leads. It is essential to ensure that the shunt is not overloaded, as this may lead to overheating or damage. Use in installations with operating voltages exceeding 600 V is not intended, as the protective insulation is certified only up to CAT III 600 V.

Advantages in Operation

The combination of high safety, precise measurement, and robust design makes the shunt a reliable tool in laboratory and educational environments. The accuracy class 0.5 and low temperature coefficient ensure reproducible measurement results. The impact-resistant and self-extinguishing housing increases service life and safety under mechanical stress or in the event of a short circuit. The protective insulation in accordance with IEC 61010, CAT III 600 V, enables use in electrical installations with operating voltages up to 600 V.

General
ApplicationMeasurement of high DC currents with a voltmeter
Protection standardIEC 61010, CAT III 600 V
ConnectionSafety sockets
HousingShock-resistant and self-extinguishing
Accuracy class0,5
Temperature coefficientVery low
Nominal current30 A
Voltage drop300 mV


Questions & answers

What is the delivery time of Chauvin Arnoux HA030-1 Shunt resistor 30 A – 300 mV?

The article Chauvin Arnoux HA030-1 Shunt resistor 30 A – 300 mV is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux HA030-1 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Chauvin Arnoux HA030-1 Shunt resistor 30 A – 300 mV always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux HA030-1 Shunt resistor 30 A – 300 mV if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Chauvin Arnoux HA030-1 Shunt resistor 30 A – 300 mV we can offer you a price of 200,37 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
