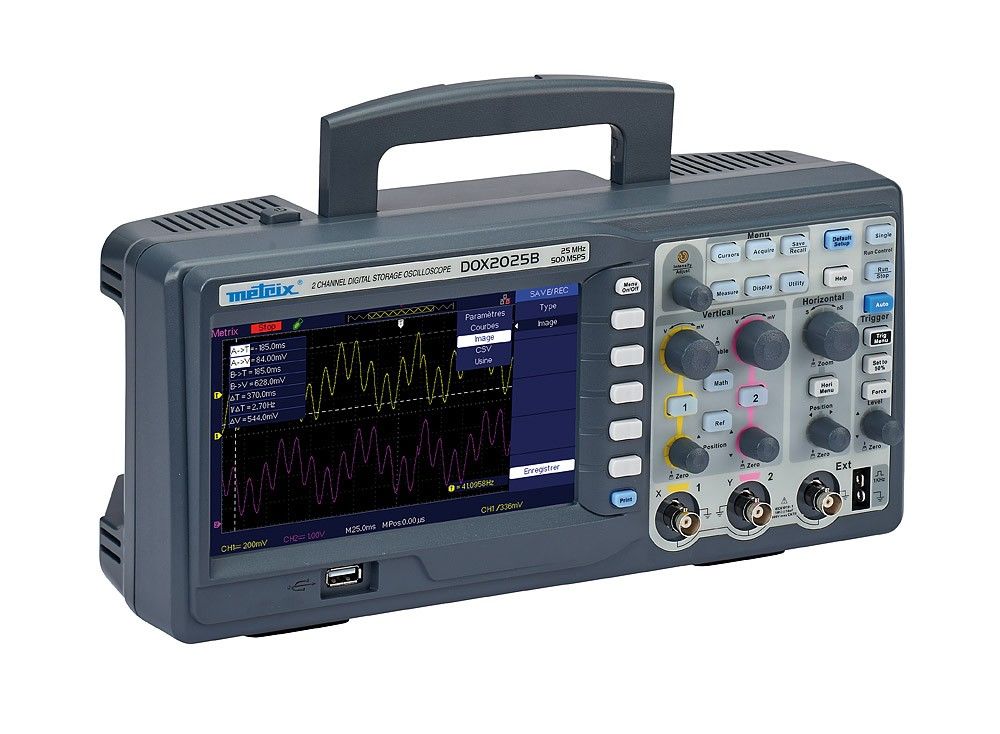

Chauvin Arnoux DOX2025B DOX 2025B Dig. Oscilloscope 2x25 MHz, color display, USB, Ethernet

Highlights:

• Digital benchtop oscilloscope with 2 channels, bandwidth up to 25 MHz, and large panoramic color display
• Maximum sampling rate of 500 MS/s in Single Shot mode (1 channel) and 50 GS/s in repetitive mode
• 12 measurement ranges with vertical sensitivity from 2 mV/div to 10 V/div
• 32 simultaneous automatic measurements on the screen and manual cursor measurements
• 5 MATH functions (including FFT) for detailed real-time analysis on 2 different displays
• Wide range of advanced functions: digital filters, auto-calibration, Pass/Fail, ROLL, RECORDER, etc.
• Multiple communication interfaces for data transfer to PC with EASYSCOPE software

Description:

The METRIX DOX 2000B series digital benchtop oscilloscopes are compact, easy to use, and specifically designed for laboratory environments. They feature two channels with up to 25 MHz bandwidth and a maximum sampling rate of 500 MS/s in Single Shot mode for one channel and 50 GS/s in repetitive sampling. A generous 7-inch color screen with 800x480 WGA resolution displays up to 16 divisions on the X-axis and is customizable to ensure optimal readability and ease of use.

Offering 12 vertical sensitivity ranges from 2 mV/div to 10 V/div and 5 MATH functions, including FFT, this oscilloscope allows for precise real-time analysis with simultaneous display of multiple curves. It supports 32 automatic measurements along with manual cursor measurements for accurate on-screen analysis. Equipped with digital filters, auto-calibration, a practical PASS/FAIL function, and a built-in recorder, the device is versatile for various testing requirements.

Additional interfaces like USB, Ethernet, and RJ45 allow seamless data transfer to a PC, supported by the EASYSCOPE software, which enables remote control and the storage of waveform data and screenshots. An ergonomic handle and stable non-slip feet ensure easy portability and secure positioning on the workstation.

Technical Data:

• Display: 7-inch LCD color screen, WGA resolution 800×480
• Operator languages: Interface in 5 languages + contextual help in FR/EN
• Measurement acquisition: 2 channels + external trigger and complex trigger functions
• Vertical resolution: 8-bit (0.4%)
• Measurement ranges: 12 vertical ranges (2 mV/div to 10 V/div), horizontal time base from 25 ns/div to 50 s/div
• Sampling rate: Single Shot = 250 MS/s (2 channels), 500 MS/s (1 channel) / Repetitive = 10 GS/s
• Maximum memory depth: 32K points
• Communication: USB, Ethernet, and RJ45 for PC connection
• Safety standard: IEC 61010-1 / 300 V CAT II
• Additional functions: 5 MATH functions incl. FFT, auto-calibration, Pass/Fail test, Recorder mode
