Chauvin Arnoux BPT1 Redox measuring electrode / S7 plug

Your rating:
Average rating
product review for Chauvin Arnoux BPT1 Redox measuring electrode / S7 plug
( 0 / 5 ) 0 ratings

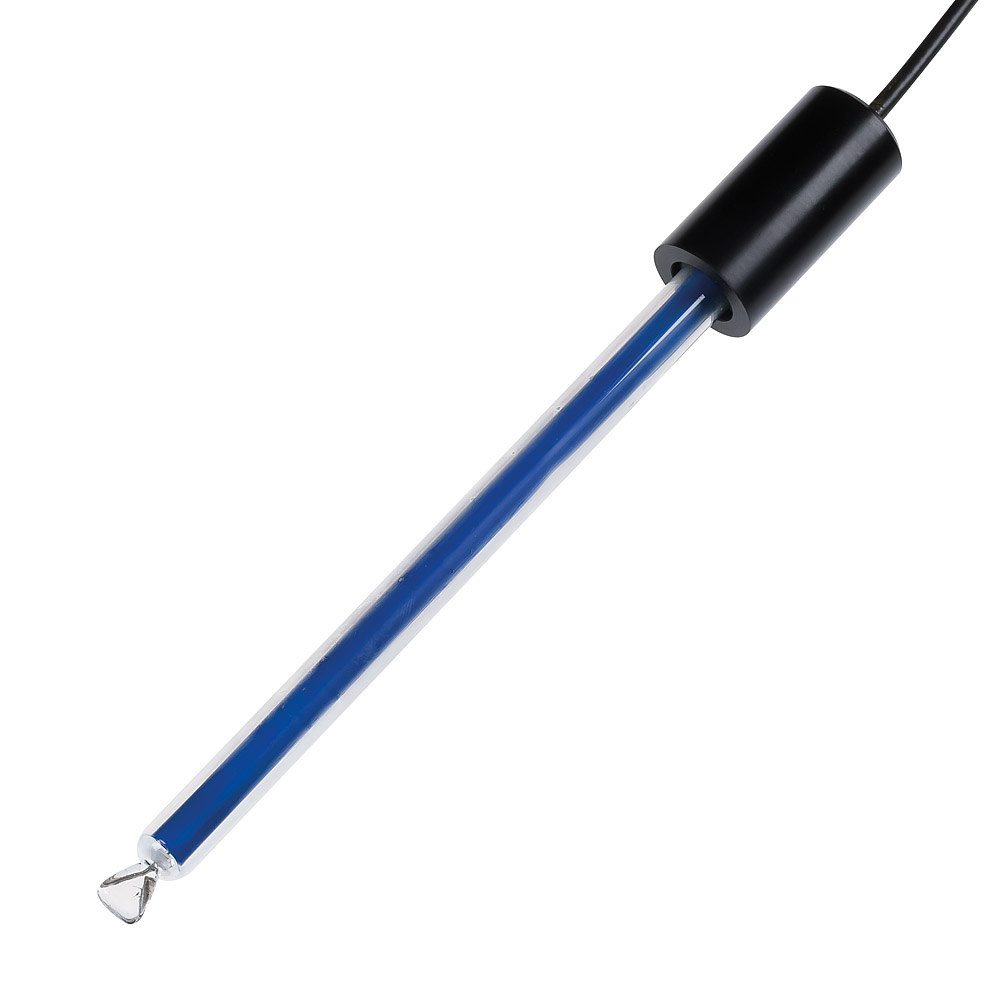

Chauvin Arnoux BPT1-S7
This image may differ from the desired article.
182,40 EUR
( 217,06 EUR incl. VAT )
≈ £151.94  |  ≈ $200.09
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux BPT1 Redox measuring electrode / S7 plug
Lieske Part No.:1142356
Mfg Part No: BPT1-S7
UPC/EAN: 3663653005876
Weight:0.123 kg
Graduated prices net
From piecesPrice per pieces
5181,03 EUR
10179,66 EUR
15178,30 EUR
20176,93 EUR

Product information for Chauvin Arnoux BPT1-S7:

The BPT1-S7 is a redox indicator electrode from the manufacturer Chauvin Arnoux, specifically designed for measuring redox potentials in chemical solutions. It consists of a glass body, at the lower end of which a platinum wire is attached, serving as the active measuring surface. This electrode is used in combination with a reference electrode to determine the oxidizing or reducing power of a sample. The reference electrode serves as a reference point, ensuring that the measured potentials are reproducible and comparable. The BPT1-S7 is particularly suitable for applications where the samples are highly oxidizing and contain chlorides, for example in water analysis or redox titrations. In such cases, a separate measuring electrode is recommended to extend the service life of the reference electrode, as the measuring electrode wears out faster under these conditions.

Redox measurement is a method for determining electrochemical potentials in a solution, used particularly in analytical chemistry, environmental technology, and process monitoring. The BPT1-S7 serves as an indicator electrode, reacting to changes in the redox state of the sample. The platinum wire as a metal electrode offers high chemical resistance and is especially suitable for aggressive, oxidizing media, as platinum is resistant to corrosion and oxidation. The electrode is designed in the form of a glass rod, ensuring easy handling and cleaning.

Applications include monitoring wastewater treatment processes, analysis of drinking water, process control in the chemical industry, and laboratory investigations, especially in redox titrations. The electrode is designed for applications where the service life of the measuring electrode is significantly shorter than that of the reference electrode, making a separate design sensible. Using a separate measuring electrode extends the service life of the more expensive reference electrode and reduces maintenance effort.

Functions and equipment in detail include the integrated platinum wire, which serves as the active measuring surface, and the glass body, which ensures mechanical stability and ease of cleaning. The electrode is equipped with an S7 connector, enabling a compatible connection to corresponding measuring instruments. The S7 plug connection is a standard in laboratory and process measurement technology and ensures a secure and interference-free electrical coupling. The electrode is supplied as a single unit, without additional components such as reference electrodes or measuring devices.

Technology explained simply means that the BPT1-S7 measures the electrical voltage generated between the sample and the reference electrode. This voltage is a measure of the redox potential, i.e., the tendency of the substances in the solution to give up electrons (oxidation) or accept them (reduction). The platinum wire serves as an electrical contact indicating the voltage. The measurement takes place in a closed electrical circuit, with the reference electrode providing a constant reference point. The glass construction mechanically protects the platinum wire and ensures a clean surface for measurement.

The BPT1-S7 is designed for devices that support an S7 connector. There are two ordering variants for connectors, adapted to different device configurations. The exact selection depends on the measuring system used. The electrode is not suitable for use without a reference electrode, as a single measuring electrode does not provide an absolute potential scale.

Mounting and installation are carried out by simply inserting the electrode into the S7 connector of the measuring device. The electrode is immersed in the solution to be measured, ensuring that the tip of the platinum wire is fully submerged in the medium. Cleaning is done by rinsing with water or an appropriate cleaning agent, with the glass construction enabling easy maintenance. No special tools or additional mounting components are required.

Operational advantages lie in the high chemical resistance of platinum, easy handling, and long service life under aggressive conditions. Separating the measuring electrode from the reference electrode reduces the need to replace the more expensive reference electrode and lowers operating costs. The S7 plug connection ensures a reliable electrical connection and is widely used in the industry, increasing compatibility with various devices. The glass construction facilitates cleaning and prevents deposits that could impair measurement accuracy.

Note: Reference electrodes, measuring devices, and other accessories are not included in the delivery scope.

General
Electrode typeRedox indicator electrode -
MaterialPlatinum -
HousingGlass -
ConnectionS7 -
Application rangeOxidizing solutions with chlorides, redox titrations -
FunctionMeasurement of redox potentials -


Questions & answers

What is the delivery time of Chauvin Arnoux BPT1 Redox measuring electrode / S7 plug?

The article Chauvin Arnoux BPT1 Redox measuring electrode / S7 plug is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux BPT1-S7 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Chauvin Arnoux BPT1 Redox measuring electrode / S7 plug always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux BPT1 Redox measuring electrode / S7 plug if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Chauvin Arnoux BPT1 Redox measuring electrode / S7 plug we can offer you a price of 181,03 EUR per piece. The more you buy, the cheaper the article will be.
