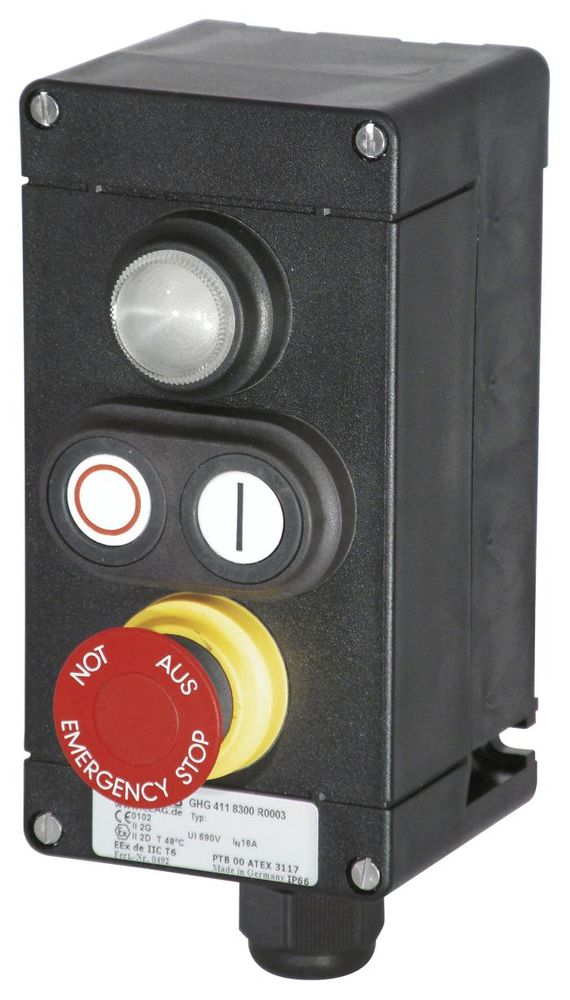

CEAG GHG4118300R0003 Command device 2NO 2NC , double buttons, emergency stop, Signalleu.

Your rating:
Average rating
Rating for CEAG GHG4118300R0003 Command device 2NO 2NC , double buttons, emergency stop, Signalleu.
( 4.5 / 5 ) 36 ratings
CEAG GHG4118300R0003
This image may differ from the desired article.
652,20 EUR
( 776,12 EUR incl. VAT )
2025-11-11Delivery time on requestinfo_outline
1x CEAG GHG4118300R0003 Command device 2NO 2NC , double buttons, emergency stop, Signalleu.
Lieske Part No.:929165
Mfg Part No: GHG4118300R0003
UPC/EAN: 4250217437618
Weight:0.0008 kg
Graduated prices net
From piecesPrice per pieces
4622,85 EUR
8593,50 EUR
12564,15 EUR
16534,80 EUR

Product information for CEAG GHG4118300R0003:

Ex-e control device GHG 411 83 - polyamide for zone 1/21, cable entries: 1 x M25, polyamide, SIL, DDT, SGTE, Pos. 3: SIL signal lamp, 20 - 250 V AC/DC, Pos. 2: DDT double push button, 1S +1Ö, Pos. 1: SGTE emergency stop button, 1S +1Ö, contact material: silver contacts, cable entries/housing holes: 1 x M25 Ex-e cable entries for cables from Ø 8 - 17 mm, housing material: polyamide, rated voltage: 690 V AC, rated current: 16 A, rated making/breaking capacity AC15 according to EN 60947-5-1: Ue 250 V / Ie 6 A (Ex 41) / Ue 500 V / Ie 4 A (Ex 41) / Ue 230 V / Ie 6 A (Ex 23) / Ue 500 V / Ie 4 A (Ex 23), marking according to 94/9/EC: Ex II 2 G Ex ed ib m IIC T6 / Ex II 2 D Ex tD A21 IP66 T80°C, EC type examination certificate: PTB 00 ATEX 3117, permissible ambient temperature: -20 °C to 40 °C, dimensions (L x W x H): 165 x 85 x 77.5 mm, weight: 0.80 kg, protection class: I, protection type according to EN 60529: IP66


Questions & answers

What is the delivery time of CEAG GHG4118300R0003 Command device 2NO 2NC , double buttons, emergency stop, Signalleu.?

The article CEAG GHG4118300R0003 Command device 2NO 2NC , double buttons, emergency stop, Signalleu. is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of CEAG GHG4118300R0003 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you CEAG GHG4118300R0003 Command device 2NO 2NC , double buttons, emergency stop, Signalleu. always at the best possible price. We can give you a discount of 2% on CEAG GHG4118300R0003 Command device 2NO 2NC , double buttons, emergency stop, Signalleu. if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of CEAG GHG4118300R0003 Command device 2NO 2NC , double buttons, emergency stop, Signalleu. we can offer you a price of 622,85 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of CEAG GHG4118300R0003 Command device 2NO 2NC , double buttons, emergency stop, Signalleu. via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
