CAMBRIONIX SuperSync15-Type-F

Your rating:
Average rating
product review for CAMBRIONIX SuperSync15-Type-F
( 4 / 5 ) 2 ratings

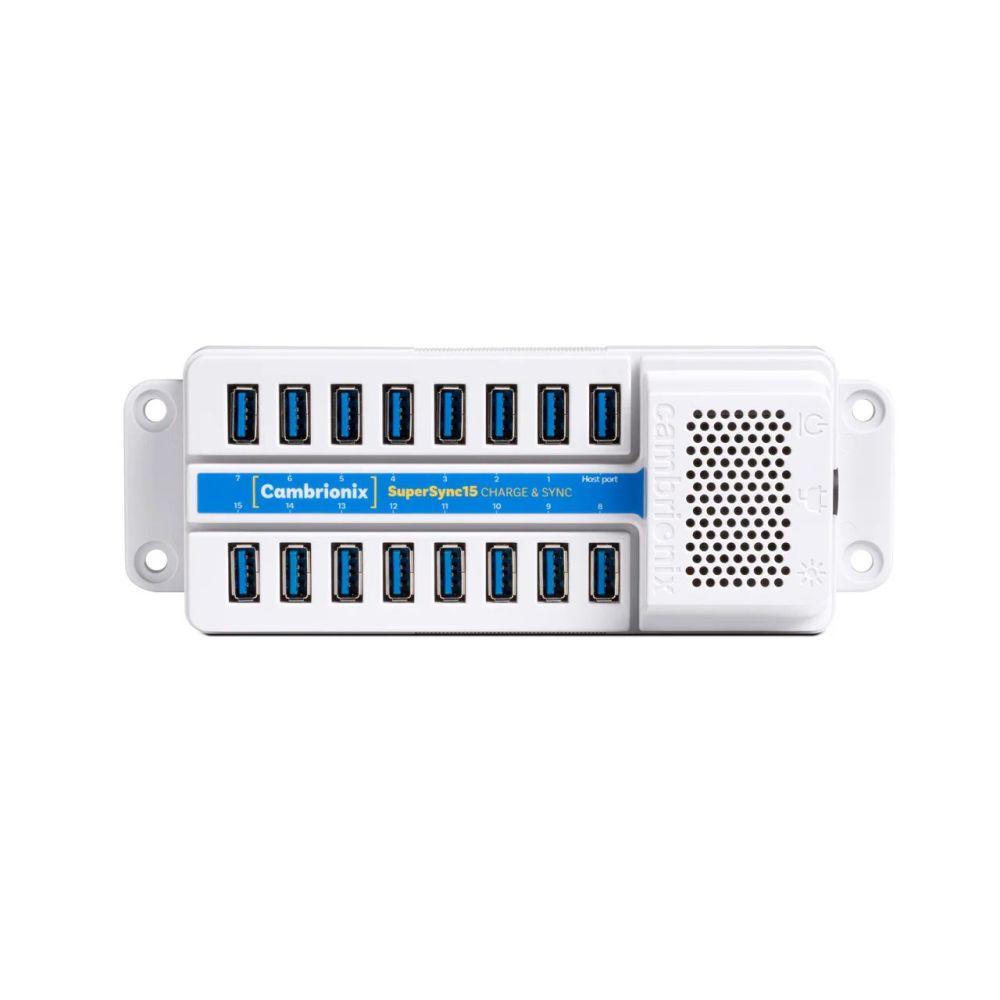

CAMBRIONIX SuperSync15-Type-F
This image may differ from the desired article.
CAMBRIONIX SuperSync15-Type-FCAMBRIONIX SuperSync15-Type-F
737,23 EUR
( 877,30 EUR incl. VAT )
≈ £617.06  |  ≈ $810.22
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x CAMBRIONIX SuperSync15-Type-F
Lieske Part No.:2082241
Mfg Part No: SuperSync15-Type-F
Weight:2 kg

Product information for CAMBRIONIX SuperSync15-Type-F:

The Cambrionix SuperSync15-Type-F is a USB distributor with 15 outputs, specifically designed for use in professional IT and electronics environments. The device enables simultaneous power supply and data transmission for up to 15 USB devices via a single host connection. It is designed for operation with USB 3.2 devices, while also supporting compatible USB 2.0 devices. Power supply is provided via an external power supply unit connected through a 4-pin DIN connector. The outputs deliver a constant voltage of 5.2 V, with each port capable of supplying up to 2.1 A, equivalent to a maximum power of 10 W per port. The total maximum power across all ports is 163.8 W.

Applications

The SuperSync15-Type-F is suitable for applications requiring simultaneous connection and operation of multiple USB devices, such as in conference rooms, schools, call centers, or industrial automation. The scalable architecture allows expansion of the number of ports through additional modules, enabling flexible adaptation to growing requirements. The operating temperature range of 0 to 35 °C and relative humidity of 5 % to 95 % (non-condensing) make the device suitable for indoor environments where controlled conditions are ensured.

Functions and Equipment in Detail

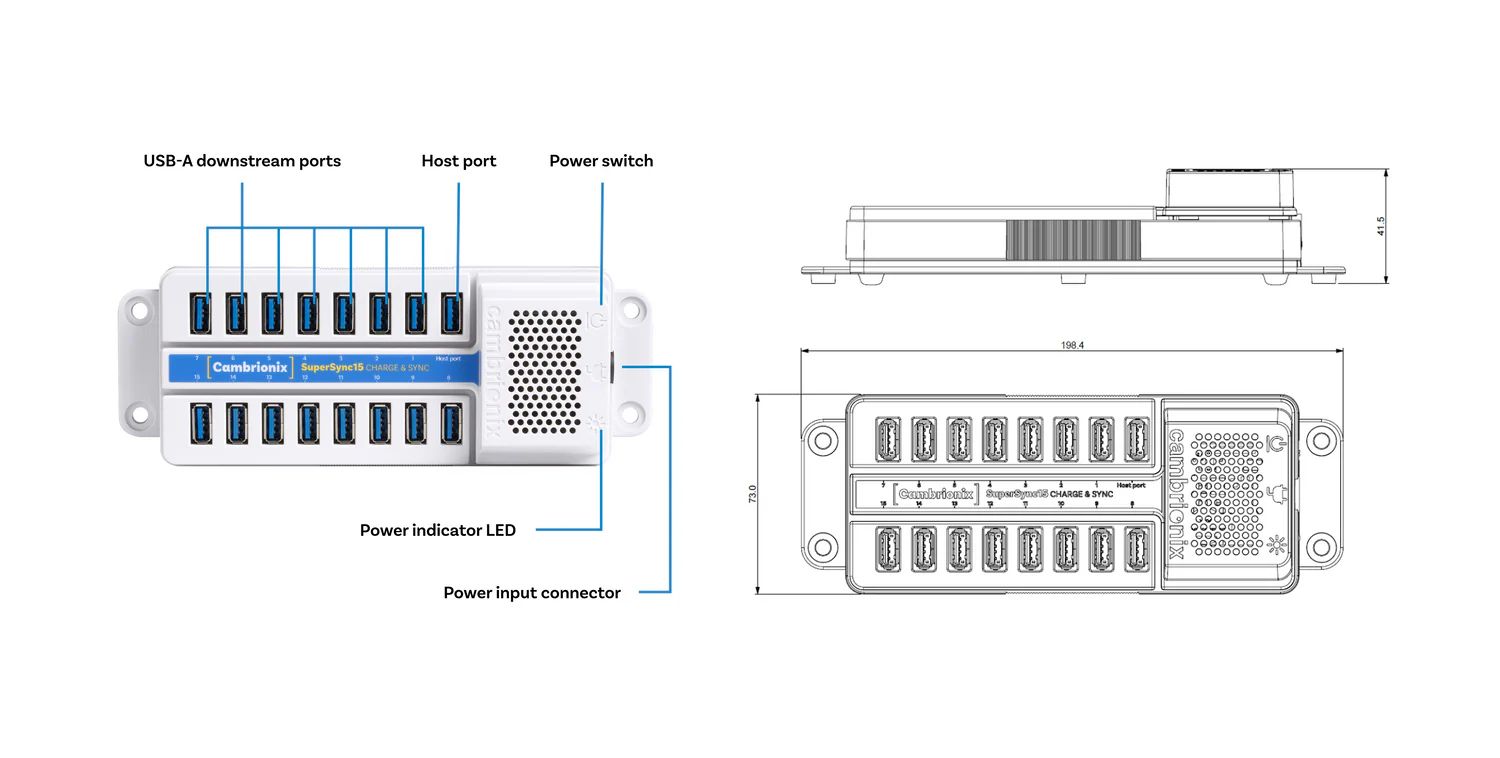

The device features a single USB 3.2 host connection, enabling connection to a computer or another USB host. The 15 USB outputs are implemented as USB Type-A sockets, allowing connection of peripheral devices such as keyboards, mice, flash drives, webcams, or external hard drives. Power supply is provided via an external power supply unit connected to the mains via a C14 connector. The power supply delivers an output voltage of 12 Vdc at 15 A, equivalent to a total power of 180 W. The input side of the power supply supports a voltage range of 100 to 250 Vdc and a frequency of 50 to 60 Hz.

Technology Explained Simply

The output voltage of 5.2 V is optimized for powering USB devices, as most USB peripherals require 5 V. The slightly higher voltage of 5.2 V accounts for voltage drops in cables and within the device, ensuring stable power delivery. The maximum power per port of 10 W allows for use with power-intensive devices, such as external SSDs or USB webcams with integrated microphones. The total power of 163.8 W is sufficient to supply multiple devices simultaneously without overloading the power supply.

Compatibility and Accessories

The SuperSync15-Type-F is compatible with USB 3.2 and USB 2.0 devices. Connection to the host is made via a USB 3.2 connection, enabling data transfer rates according to the USB 3.2 specification. The system's scalability allows expansion of the number of ports through additional modules, with the exact method of expansion described in the technical documentation.

Mounting and Installation

Installation involves connecting the device to a USB host via the USB 3.2 host connection. The external power supply is connected to the mains via a C14 connector and linked to the distributor via a 4-pin DIN connector. Devices are connected to the USB Type-A outputs. Mounting should be performed in a suitable environment with an operating temperature between 0 and 35 °C and relative humidity of 5 % to 95 % (non-condensing).

Advantages in Operation

The SuperSync15-Type-F provides centralized power and data supply for up to 15 USB devices, reducing the number of required connections on a host computer. The scalable architecture enables flexible expansion of the number of ports. The external power supply ensures stable and sufficient power, even when multiple power-intensive devices are used simultaneously. The operating temperature and humidity are designed for use in controlled indoor environments, ensuring reliable performance. The use of a USB 3.2 host connection enables full data transfer rates for compatible devices.

General
Number of USB outputs15
USB standardUSB 3.2
Host interface1 x USB 3.2
Input voltage12 Vdc
Input current15 A
Input connection4-pole DIN connector
Output voltage5,2 V
Maximum output current per port2,1 A
Maximum power per port10 W
Total power of all ports163,8 W
Power supply input voltage100-250 Vdc
Power supply input current2,5 A @ 115 Vac
Power supply frequency50-60 Hz
Power supply plugC14
Power supply output voltage12 Vdc
Power supply output current15 A
Power supply power180 W
Power supply output connection4-pole DIN connector
Operation temperature0 ~ 35 °C
Relative humidity5% to 95% non-condensing
ScalabilityYes


Questions & answers

What is the delivery time of CAMBRIONIX SuperSync15-Type-F ?

The article CAMBRIONIX SuperSync15-Type-F is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of CAMBRIONIX SuperSync15-Type-F to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you CAMBRIONIX SuperSync15-Type-F always at the best possible price. We can give you a discount of 2% on CAMBRIONIX SuperSync15-Type-F if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
