Busch Jaeger 2TMA310050W0002 BJ ST/U10.2.11-811 SmartTouch 10 White / Graphite
|
1.254,33 EUR |
|||||||||||
|
( 1.492,65 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 2024107 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2TMA310050W0002 | ||||||||||
| UPC/EAN: | 6955891819559 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Busch Jaeger 2TMA310050W0002:

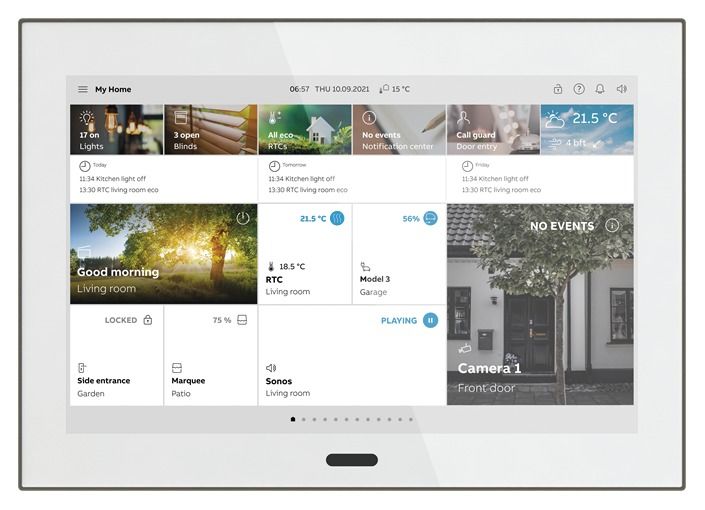

The SmartTouch 10 offers control and monitoring of the free@home or KNX system as well as the fully integrated functions of ABB Welcome®. Control, monitor and manage your entire system with one device: switching - dimming - slider - blind - RGBW control element - step switch - scene switch - display element - audio control element.
With scene function, logic functions, presence simulation and time programs.
SmartTouch® 10' can also be used as a terminal for communication with the ABB Welcome outdoor stations and as part of the ABB Welcome door communication system.
KNX functions:
A total of 450 control elements are displayed on a maximum of 25 pages.
80 error and alarm messages.
30 logical functions.
40 timers.
Presence simulation for 20 participants.
10 scene actuators 3 object RTR.
Equipped with a hearing loop for coupling the audio signal into hearing aids.
Page display with a maximum of 18 touch surfaces on one page.
Functions free@home:
The twisted pair connection offers a single page with a maximum of 18 control elements.
Alternatively, a connection can be established via Wi-Fi, which offers the same range of control options and functions as the free free@home app.
External power supply: 20-32 VDC (SELV) or via the ABB Welcome system control.
Welcome:
Integrated IP gateway
Possibility of integrating ONVIF IP cameras
External power supply: 20-32 VDC (SELV) or via the Busch Welcome system control center (consumption units: 14).
Screen size: 25.4cm (10')
Display resolution: 1280*800
Screen: IPS screen
Dimensions (L x W x D): 180.2mm x 254.6mm x 17.5mm
Flush or wall mounting, bracket for table mounting.
Flush mounting with the flush-mounted box and for surface mounting or table mounting a surface-mounted frame or table stand is required.
The slim real metal frame in a flat design is almost flush with the wall (14 mm) and is available in 4 colors (stainless steel, anthracite, gold and rose gold) and black or white glass.
Type: ST/U10.2.11-811
