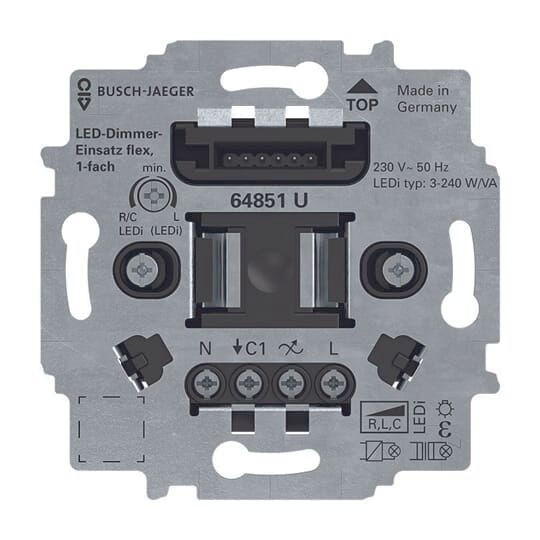

Busch Jaeger 2CKA006500A0012 64851 U LED push dimmer insert flex
|
110,01 EUR 114,64 EUR |
|||||||||||
|
( 130,91 EUR incl. VAT ) ≈ £93.40 | ≈ $123.98 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Lieske Part No.: | 1893586 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2CKA006500A0012 | ||||||||||
| UPC/EAN: | 4011395294192 | ||||||||||
| Weight: | 0.073 kg | ||||||||||
| Type: | 64851 U | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Modular devices, switches, buttons, etc. from Busch JaegerFurther products in category Modular devices, switches, buttons, etc.
All products of Busch Jaeger
Product information for Busch Jaeger 2CKA006500A0012:
2-wire connection technology (neutral conductor not required).
Neutral conductor can be connected optionally (recommended when connecting low loads, < 10 W/VA).
Touch dimmer for dimming lighting systems.
Operation in two-way circuits possible via button extension.
Operation also possible via conventional buttons (2020 US, 2021/6 UK).
Optimized for dimming retrofit LED lamps (LEDi).
For dimmable retrofit LED lamps (LEDi).
For dimmable retrofit LED lamps (LEDi) on conventional or electronic transformers.
For incandescent lamps, 230 V halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable halogen energy-saving lamps.
Mixed load operation LEDi and conventional lamps possible.
With manually adjustable operating mode: leading edge / trailing edge.
With adjustable minimum brightness.
With light value storage and minimum brightness storage.
Low noise through the use of MOSFET transistors.
Short-circuit proof and overload proof (electronic fuse).
Without control element.
For control element flex, 1-way, 64711 and wireless, 62711-WL.
For control element flex, 2-way, 64721 and wireless, 62721-WL.
For Busch-Komfortschalter® flex control element 64765-... .
For Busch-Wächter® 180 flex sensors 6476x-... .
For Busch-Wächter® 180 flex sensors, wireless, 6276x-.-WL.
For Busch-Präsenzmelder flex sensors 6475x-... .
Can be combined with extension insert flex, 64891 U.
Rated power: 3-240VA (LEDi).
With conventional transformers, take into account ~20% transformer losses.
For electronic transformers, take into account transformer losses of ~5%.
The device can be used via a wireless sensor in Busch-flexTronics® wireless or Busch-free@home® wireless.
Only install in conjunction with commercially available flush-mounted device boxes in accordance with DIN 49073 Part 1.
Neutral conductor can be connected optionally (recommended when connecting low loads, < 10 W/VA).
Touch dimmer for dimming lighting systems.
Operation in two-way circuits possible via button extension.
Operation also possible via conventional buttons (2020 US, 2021/6 UK).
Optimized for dimming retrofit LED lamps (LEDi).
For dimmable retrofit LED lamps (LEDi).
For dimmable retrofit LED lamps (LEDi) on conventional or electronic transformers.
For incandescent lamps, 230 V halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable halogen energy-saving lamps.
Mixed load operation LEDi and conventional lamps possible.
With manually adjustable operating mode: leading edge / trailing edge.
With adjustable minimum brightness.
With light value storage and minimum brightness storage.
Low noise through the use of MOSFET transistors.
Short-circuit proof and overload proof (electronic fuse).
Without control element.
For control element flex, 1-way, 64711 and wireless, 62711-WL.
For control element flex, 2-way, 64721 and wireless, 62721-WL.
For Busch-Komfortschalter® flex control element 64765-... .
For Busch-Wächter® 180 flex sensors 6476x-... .
For Busch-Wächter® 180 flex sensors, wireless, 6276x-.-WL.
For Busch-Präsenzmelder flex sensors 6475x-... .
Can be combined with extension insert flex, 64891 U.
Rated power: 3-240VA (LEDi).
With conventional transformers, take into account ~20% transformer losses.
For electronic transformers, take into account transformer losses of ~5%.
The device can be used via a wireless sensor in Busch-flexTronics® wireless or Busch-free@home® wireless.
Only install in conjunction with commercially available flush-mounted device boxes in accordance with DIN 49073 Part 1.
| General | |
| Assembly arrangement | Basic element |
| Type of load | Universal and LED Retrofit |
| Mounting method | Flush mounted (plaster) |
| Type of fastening | Mounting with claw and screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Black |
| Suitable for degree of protection (IP) | IP20 |
| Nominal voltage | 230 |
| Control voltage | 230 |
| Connection type | Other |
| Width of device | 71 |
| Height of device | 71 |
| Depth of device | 30 |
| Min. depth of built-in installation box | 28 |
| App control via Bluetooth | |
| Dimming phase cut-on | |
| Dimming phase cut-off | |
| Serial dimmer | |
| Substation input | |
| Light value memory | |
| Applicable with button | |
| Applicable with movement sensor | |
| Applicable with presence indicator | |
| Applicable with time switch/timer | |
| Applicable with transmission button | |
| Applicable with infrared button | |
| Halogen free | |
| Transparent | |
| IFTTT support available | |
