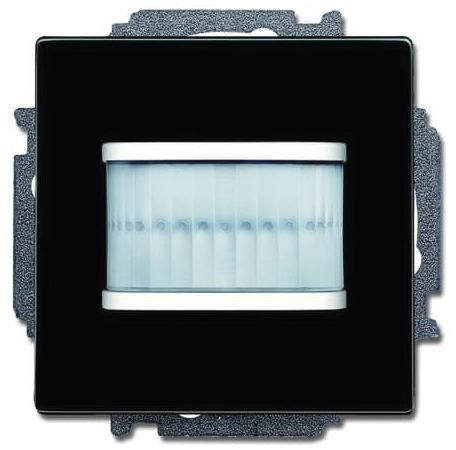

Busch Jaeger 2CKA006220A0110 6215/1.1-81 motion sensor switch actuator 1f Busch-free@home anthracite
|
202,35 EUR 210,87 EUR |
|||||||||||
|
( 240,80 EUR incl. VAT ) ≈ £171.19 | ≈ $226.83 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 357549 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2CKA006220A0110 | ||||||||||
| UPC/EAN: | 4011395179826 | ||||||||||
| Weight: | 0.1 kg | ||||||||||
| Type: | 6215/1.1-81 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Busch Jaeger 2CKA006220A0110:
With select lens for detection with animal paths.
For automatic switching of Busch-free@home® actuators depending on movement and brightness.
The actuator's run-on time can be programmed via the web interface of the system access point.
For switching 127 V~/230 V~ consumers.
With integrated switching actuator.
Switching function is also available without prior programming (preconfigured).
Configuration can be changed later via the web interface (groups, scenes, etc.).
The bus connection is made via the included bus terminal.
When installing in the flush-mounted box, ensure that there is a spatial separation between the bus and the 127 V/230 V installation cable! If the minimum distance is not met, use electronic boxes or insulating hoses, for example.
Programming only when the bus voltage is applied via the web interface of the system access point.
Further information on commissioning and operation can be found in the system manual and the online operating manual.
| General | |
| Other bus systems | free@home |
| Model | Movement sensor |
| Mounting method | Other |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | Anthracite |
| RAL-number (akin) | 7021 |
| Optimum mounting height | 1.1 |
| Max. transmission range frontally | 6 |
| Detection angle vertical | 19 |
| Detection angle horizontal | 180 |
| Number of channels | 1 |
| Switching power | 2300 |
| Min. switch-on time | 30 |
| Max. duty cycle | 30 |
| Min. depth of built-in installation box | 32 |
| Built-in depth | 32 |
| Depth | 56 |
| Height | 71 |
| Width | 71 |
| Bus system KNX | |
| Bus system KNX radio | |
| Bus system radio frequent | |
| Bus system LON | |
| Bus system Powernet | |
| Radio frequent bidirectional | |
| Transparent | |
| Bus connection included | |
| Animal zone | |
| Staircase monitoring | |
| Response value luminosity adjustable | |
Questions & answers
What is the delivery time of Busch Jaeger 2CKA006220A0110 6215/1.1-81 motion sensor switch actuator 1f Busch-free@home anthracite?
The article Busch Jaeger 2CKA006220A0110 6215/1.1-81 motion sensor switch actuator 1f Busch-free@home anthracite is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Busch Jaeger 2CKA006220A0110 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Busch Jaeger 2CKA006220A0110 6215/1.1-81 motion sensor switch actuator 1f Busch-free@home anthracite always at the best possible price. We can give you a discount of 2% on Busch Jaeger 2CKA006220A0110 6215/1.1-81 motion sensor switch actuator 1f Busch-free@home anthracite if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Busch Jaeger 2CKA006220A0110 6215/1.1-81 motion sensor switch actuator 1f Busch-free@home anthracite we can offer you a price of 199,31 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
