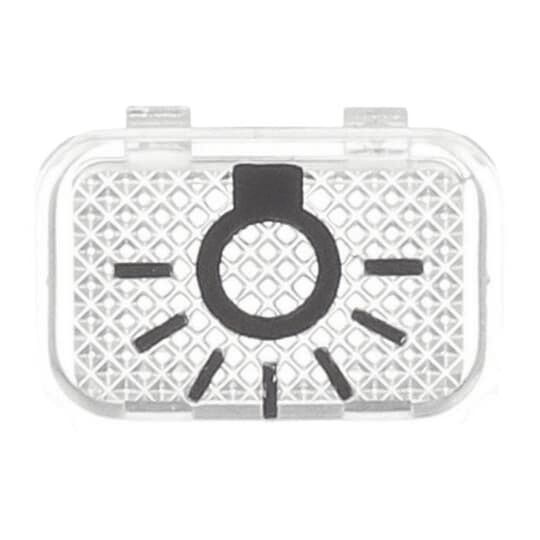

Busch Jaeger 2CKA001714A0211 2145LI push-button symbol light accessory, clear glass

Your rating:
Average rating
product review for Busch Jaeger 2CKA001714A0211 2145LI push-button symbol light accessory, clear glass
( 4.9 / 5 ) 8 ratings
Busch Jaeger 2CKA001714A0211
This image may differ from the desired article.
Busch Jaeger 2CKA001714A0211Busch Jaeger 2CKA001714A0211
1,43 EUR
( 1,70 EUR incl. VAT )
≈ £1.19  |  ≈ $1.57
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Busch Jaeger 2CKA001714A0211 2145LI push-button symbol light accessory, clear glass
Lieske Part No.:535122
Mfg Part No: 2CKA001714A0211
UPC/EAN: 4011395076903
Weight:0.001 kg
Type:2145 LI
Graduated prices net
From piecesPrice per pieces
501,37 EUR
1001,30 EUR
2501,24 EUR
5001,17 EUR

Product information for Busch Jaeger 2CKA001714A0211:

The article 2145 LI from Busch Jaeger is a push-button symbol for surface-mounted switches and push buttons, specifically designed for use in toggle levers with openings for symbols. It serves as a visual indication for the function light" and is used in various design lines of the Busch Jaeger product range, including Busch-balance® SI, Reflex SI, Busch-Duro 2000® SI, Busch-Duro 2000® AP, and Busch-Duro 2000® WDI. The symbol is executed in the "glasklar variant, ensuring high transparency and good readability of the marking. It is not transparent in the sense of a transparent surface, but serves as a clearly recognizable symbol for the light function.

Applications

The symbol 2145 LI is used in electrical installations where a clear and unambiguous marking of the switch function is required. It is intended for surface-mounted switches and push buttons, particularly for models 2601/x SKxxx and 2621xxx, as well as for toggle levers of the type series 2520-xxx. The use is in indoor environments where the switches are mounted in the mentioned design lines. The design lines include various variants such as Reflex SI, Reflex SI Linear, Busch-Duro 2000® SI, and Busch-Duro 2000® SI Linear, where the symbol functions as an integrated component in these systems.

Functions and Equipment in Detail

The symbol features a clear, legible print displaying the word Licht". It is not equipped with a tactile print, so the marking is perceived visually only. The execution is in a colour variant classified as "other, with the actual appearance being glasklar. This ensures good visibility and integration into the surface of the toggle lever without impairing the optical design of the switch front.

Technology Explained Simply

The symbol is inserted into the designated opening of the toggle lever, thereby being mechanically fixed and optically integrated into the switch surface. The glasklar execution ensures that the symbol does not obscure the surface of the toggle lever but remains translucent, allowing the colour and texture of the toggle lever to remain visible. The use is exclusively in combination with the mentioned switch and toggle lever models, with fit and mounting being ensured by the specific design of the toggle levers.

Compatibility and Accessories

The symbol 2145 LI is compatible with surface-mounted switches 2601/x SKxxx and surface-mounted push buttons 2621xxx, as well as with toggle levers of the type series 2520-xxx. It is used in the design lines Busch-balance® SI, Reflex SI, Busch-Duro 2000® SI, Busch-Duro 2000® AP, and Busch-Duro 2000® WDI. The variants Reflex SI, Reflex SI Linear, Busch-Duro 2000® SI, and Busch-Duro 2000® SI Linear are explicitly mentioned, where the symbol functions as part of the visual marking in these systems. No additional accessories are required, as the symbol is directly inserted into the toggle lever.

Mounting and Installation

Mounting is done by simply inserting the symbol into the designated opening of the toggle lever. No additional fastening or tool application is required. The toggle lever itself is installed into the switch or push button, with the symbol being inserted into the opening before the toggle lever is mounted. Installation is carried out as part of the standard mounting procedure for surface-mounted switches and push buttons, with the symbol's fit being adapted to the mentioned toggle lever models.

Advantages in Operation

The clear and unambiguous marking of the symbol Licht facilitates operation and orientation during use, especially in installations with multiple switches. The glasklar execution ensures high visibility and integration into the switch surface, preserving the design of the installation. Use in the mentioned design lines ensures uniform optical design and compatibility with the respective switch models.

General
ModelSymbols
ColourOther
Imprint/indicationSymbol "light"
Transparentno
With tangible imprintno


Questions & answers

What is the delivery time of Busch Jaeger 2CKA001714A0211 2145LI push-button symbol light accessory, clear glass?

The article Busch Jaeger 2CKA001714A0211 2145LI push-button symbol light accessory, clear glass is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Busch Jaeger 2CKA001714A0211 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Busch Jaeger 2CKA001714A0211 2145LI push-button symbol light accessory, clear glass always at the best possible price. We can give you a discount of 2% on Busch Jaeger 2CKA001714A0211 2145LI push-button symbol light accessory, clear glass if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Busch Jaeger 2CKA001714A0211 2145LI push-button symbol light accessory, clear glass we can offer you a price of 1,37 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
