Busch Jaeger 2CKA001084A0797 2601/6 WDI toggle switch changeover switch Busch-Duro 2000 WDI IP66

Your rating:
Average rating
product review for Busch Jaeger 2CKA001084A0797 2601/6 WDI toggle switch changeover switch Busch-Duro 2000 WDI IP66
( 4.4 / 5 ) 29 ratings

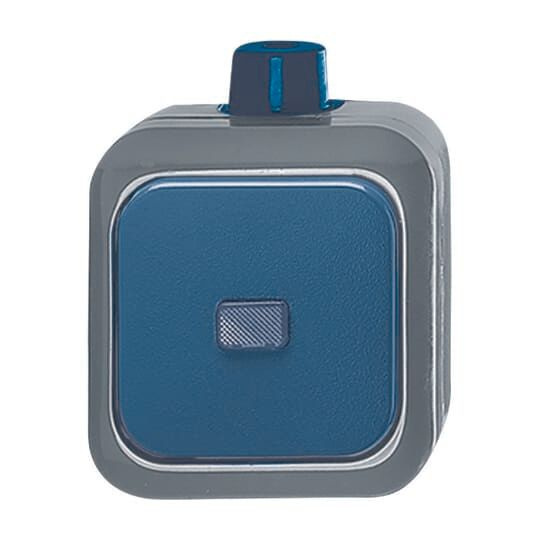

Busch Jaeger 2CKA001084A0797
This image may differ from the desired article.
Busch Jaeger 2CKA001084A0797Busch Jaeger 2CKA001084A0797
-15% 32,02 EUR 37,58 EUR
( 38,10 EUR incl. VAT )
≈ £26.67  |  ≈ $35.13
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Busch Jaeger 2CKA001084A0797 2601/6 WDI toggle switch changeover switch Busch-Duro 2000 WDI IP66
Lieske Part No.:940294
Mfg Part No: 2CKA001084A0797
UPC/EAN: 4011395026502
Weight:0.16 kg
Type:2601/6 WDI
Graduated prices net
From piecesPrice per pieces
1030,58 EUR
2529,14 EUR
5027,70 EUR
7526,26 EUR

Product information for Busch Jaeger 2CKA001084A0797:

The product is a surface-mounted toggle switch from the Busch-Duro 2000® WDI series, manufactured by Busch Jaeger, with manufacturer number 2CKA001084A0797 and type 2601/6 WDI. It is intended for switching electrical loads in installations, particularly in environments with increased requirements for mechanical and chemical resistance. The switch is designed as a changeover switch, meaning it can occupy multiple positions within a circuit to control the power supply to devices or lights. It features a single toggle actuator and is intended for surface mounting, with fixation achieved via screws. The housing is made of halogen-free thermoplastic, designed for high resistance to mechanical stress and chemical influences. The surface is matte and blue in colour, corresponding to RAL 5010. The design conforms to the Busch-Duro 2000® WDI line, known for robust and weather-resistant installation components.

Applications

The switch is suitable for use in areas with challenging conditions, such as industrial environments, workshops, or rooms where aggressive substances like ammonia, gasoline, oils, fats, or cleaning agents are present in typical concentrations. In such environments, the use of cable entries of types 2070/2071 is recommended to ensure mechanical and chemical stability of the installation. The IP66 protection rating guarantees high resistance to dust and water, including splashing water and short-term immersion, making it suitable for outdoor use or in damp indoor areas.

Functions and Equipment in Detail

The switch is designed as a basic unit with a complete housing, making it ready for use in its base form. It does not feature integrated lighting, but optional lighting can be added by inserting one of the lamps 8332-1, 8346-1, 8333-1, or 8358 into the housing. This lighting serves orientation purposes, for example, to visually indicate the switch position in dark or poorly lit rooms. There are no text fields or labelling surfaces, and the switch is not equipped with a feedback contact. The switching function is performed via a mechanical toggle, which is not designed as a push-button switch.

Technical Explanation

The rated voltage is 250 V, and the rated current is 16 A, making it suitable for use in typical household and commercial installations. The device dimensions are 74 mm (width), 93 mm (height), and 54 mm (depth), allowing it to be installed in standard installation boxes or plates. The material is halogen-free, which reduces the toxicity of smoke gases in the event of a fire. The surface is untreated and matte, providing good abrasion resistance and resistance to soiling. The IP66 protection rating means the device is dust-tight and protected against water jets from any direction, making it suitable for use in damp or wet environments.

Compatibility and Accessories

To extend functionality, the switch can be combined with accessory 2145LI Taster symbol light accessory clear glass to enable visual identification of the switch function. The use of cable entries 2070/2071 is recommended for environments with aggressive substances to enhance installation safety.

Mounting and Installation

Installation is performed using the surface mounting method, with fixation via screws. Installation must comply with applicable electrical installation regulations, especially when used in environments with aggressive substances. Wiring is carried out via the designated terminal clamps inside the housing.

Operational Advantages

The switch offers high mechanical and chemical resistance, making it suitable for demanding environments. The IP66 protection rating ensures high resistance to dust and water, increasing service life and reliability. The halogen-free construction reduces fire hazard and toxicity in case of fire. The option for additional lighting improves orientation during operation, especially in poorly lit rooms. The robust construction and design of the Busch-Duro 2000® WDI series ensure long service life and good integration into existing installations.

General
Wiring systemTwo-way switch
Assembly arrangementBasic element with complete housing
Number of rockers1
Mounting methodSurface mounted (plaster)
Type of fasteningScrew mounting
MaterialPlastic
Material qualityThermoplastic
Surface protectionUntreated
Surface finishingMatt
ColourBlue
RAL-number (akin)5010
IlluminationOptional
Function lightingOrientation
Suitable for degree of protection (IP)IP66
Nominal voltage250
Rated current16
Width of device74
Height of device93
Depth of device54
Push button switchno
With mounting plateno
Halogen freeyes
Label space/information surfaceNo
Feedback-signal contactno
Washing machine switchno
Antibacterial treatmentno
IFTTT support availableno
