BTR 151P3JAJAB0E OpDAT PK OS2 LCA/LCA 20m simple.
|
27,28 EUR |
|
|
( 32,46 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 2089341 |
|---|---|
| Mfg Part No: | 151P3JAJAB0E |
| UPC/EAN: | 4251394602066 |
| Weight: | 0 kg |
Product information for BTR 151P3JAJAB0E:

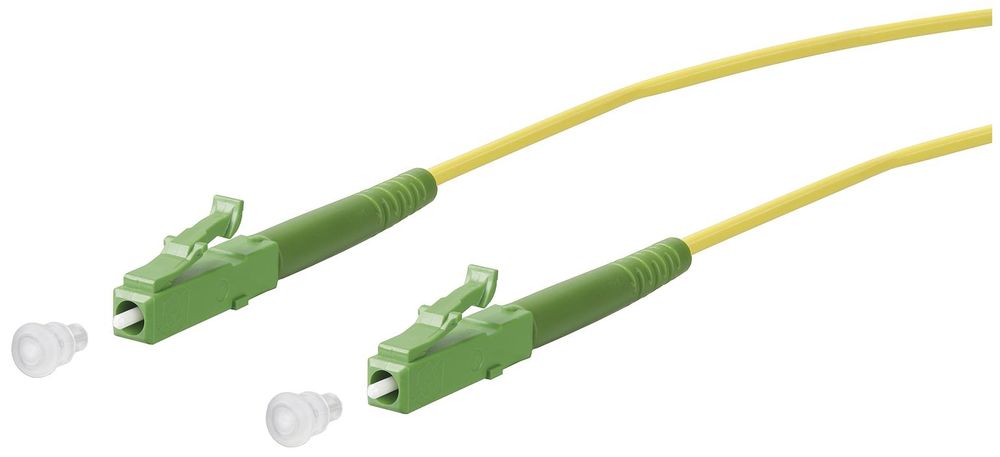

simplex patch cable with fiber optic connectors assembled on both sides.
Cable type:
Simplex patch cable IV(ZN)H1, with solid core and aramid yarn, suitable
for indoor applications.
UV-stabilized, flame-retardant and halogen-free according to IEC 60754-1, IEC
60754-2, IEC 61034, IEC 60332-1-2 and IEC 60332-3-24.
Cable sheath: yellow, Ø 2.0 mm.
Cable length: 20 m
Fiber type:
Singlemode fiber, E9/125µm, OS2 (IEC 11801), IEC 60793-2-50 B.6_a and
B6_b. Insensitive to bending according to ITU-T G.657.A2 and G.657.B2, compatible
with ITU-T G.652.D.
Side A:
Connector: LC-Simplex APC according to IEC 61754-20, color green, with
transparent dust protection caps. Insertion loss max. 0.3 dB,
return loss min. 65 dB.
Side B:
Connector: LC-Simplex APC according to IEC 61754-20, color green, with
transparent dust protection caps. Insertion loss max. 0.3 dB,
return loss min. 65 dB.
Insertion loss measured against master (IEC 61300-3-4, method B) at
1310 and 1550 nm, 100% tested.
Return loss measured against master (IEC 61300-3-6). 100%
tested.
After the measurement, final visual inspection of the plugs according to IEC
61300-3-35.
Delivered as a cable ring in a plastic bag.
Marking and documentation: The patch cable must be marked
with a serial number and a barcode .
The above optical limits must
be printed on the packaging label. A measurement report with
all optical measurement values must be available upon request.
Metal and plastic parts are recyclable, RoHS compliant, evidence
from the manufacturer must be enclosed.
Make: METZ CONNECT
Type: OpDAT simplex patch cable LCAPC/LCAPC 20m, OS2, yellow, Ø 2.0 mm.
Type: 151P3JAJAB0E
Questions & answers
What is the delivery time of BTR 151P3JAJAB0E OpDAT PK OS2 LCA/LCA 20m simple.?
The article BTR 151P3JAJAB0E OpDAT PK OS2 LCA/LCA 20m simple. is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BTR 151P3JAJAB0E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you BTR 151P3JAJAB0E OpDAT PK OS2 LCA/LCA 20m simple. always at the best possible price. We can give you a discount of 2% on BTR 151P3JAJAB0E OpDAT PK OS2 LCA/LCA 20m simple. if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
