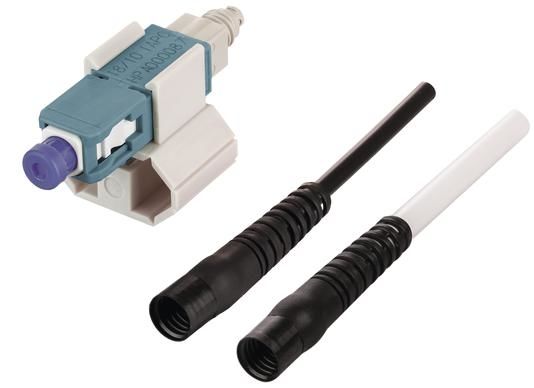

BTR 1509QKEO010C-E OpDAT FAST Hybrid SCUPC OS2 2.0+3.0mm 100 pcs +Cl +KA

Field-assembly fiber optic connector for single-mode technology, With hybrid technology: refractive index gel plus opto-elastomer guarantee very good and consistent optical values, No polishing, no gluing during on-site assembly, Simple, easy-to-learn, quick and cost-effective assembly in less than two minutes, Available with the LC and SC connector types for single-mode (UPC and APC cut), Connector kits for fiber optic wires with Ø 0.25 and Ø 0.9 mm, Connector kits for fiber optic cables with Ø 2.0 and Ø 3.0 mm, The connector can be assembled up to three times. Each connector has a serial number so that traceability is possible at all times. Depending on the variant, the scope of delivery includes: a maintenance-free cleaver. It delivers an angled cut so that high return loss values are achieved. The cleaver can be used up to 200 times. A cable assembly set for easy cable assembly, a fiber guide for easy insertion of the fiber into the connector, areas of application: for FTTH and FITH connections, repairs in the field, in hard-to-reach or spatially restricted areas and for direct assembly on components, variants for wires: 10 pieces without tools / 20 or 100 pieces with cleaver and fiber guide, variants for cables: 10 pieces without tools / 20 or 100 pieces with cleaver, cable assembly set and fiber guide
Type: 1509QKEO010C-E
