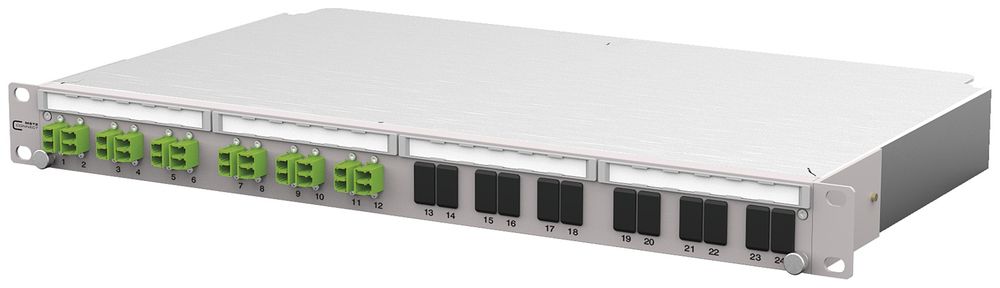

BTR 1502287M12-E Metz PA splice 12xLC-Duplex OM5 patch panel extendable OpDAT

19 inch, 1U fiber optic patch panel with pull-out splice tray/front panel (gray or black), equipped with LC-D couplings and LC pigtails, pigtails with compact fiber ø 0.9 mm, 12 colors, secondary and primary coating colored the same, length 2.0 m, pigtails inserted and set aside in standard splice cassette with crimp splice holders, pigtails cleaned and inserted into couplings, pull-out can be tilted and completely removed for better assembly (pull-out stop), lightweight aluminum construction, unused cutouts closed with blind plugs, variable cable entry (straight/angled) possible on both sides, cable clamping possible using the cable ties supplied or optional cable screw connection, cable diameter 3 to 20 mm, strain relief for central element/Kevlar, cable management through freely positionable guide elements, screwless cover, viewing window for enclosed label inserts, variants: equipped with 6, 12 or 24 LC-D couplings and pigtails each in blue (OS2), lime green (OM5), violet (OM4), aqua (OM3) or 6, 12 or 24 LC-D APC couplings and pigtails each in green (OS2)
Type: 1502287M12-E
