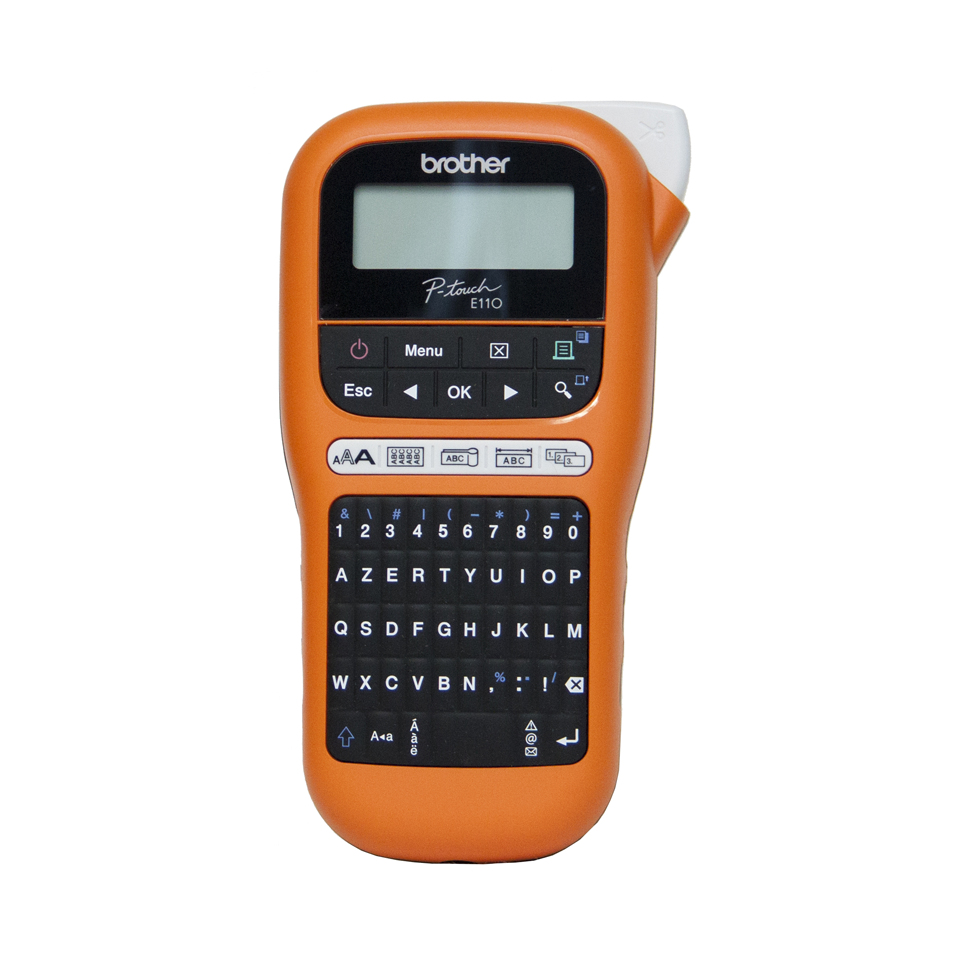

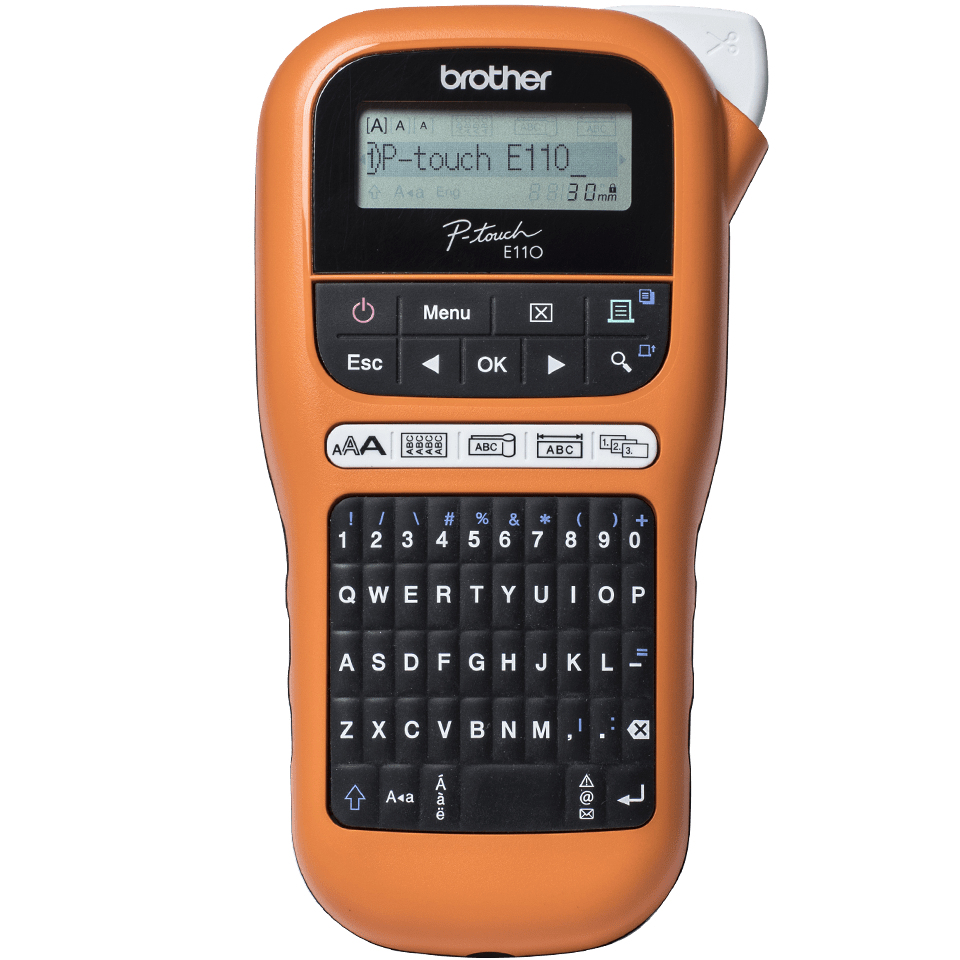

Brother PTE110G1 P-TOUCH E110 label printer

Your rating:
Average rating
product review for Brother PTE110G1 P-TOUCH E110 label printer
( 4.5 / 5 ) 15 ratings
Brother PTE110G1
This image may differ from the desired article.
Brother PTE110G1Brother PTE110G1Brother PTE110G1
29,96 EUR
( 35,65 EUR incl. VAT )
≈ £25.08  |  ≈ $32.93
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >25 pieces
1x Brother PTE110G1 P-TOUCH E110 label printer
Datasheet:file_download Download
Lieske Part No.:1059091
Mfg Part No: PTE110G1
UPC/EAN: 4977766774819
Weight:1 kg
Type:P-TOUCH E110

Product information for Brother PTE110G1:

The Brother P-TOUCH E110 is a portable labelling device for use in electrical and IT trades, specifically designed for labelling cables, connections and network components. The device operates using thermal transfer and enables the creation of durable, laminated labels in various widths. It is compact, lightweight and equipped with a QWERTZ keyboard, allowing intuitive operation even for users without special technical knowledge. The integrated LCD display shows a text line with up to 16 characters and supports direct input and preview of label content.

Applications
This device is primarily intended for use in electrical installation, telecommunications and IT infrastructure. It is particularly suitable for labelling cables, network cables, distributors, sockets and other components where clear, permanent identification is required. The laminated TZe ribbons are smudge-, scratch- and water-resistant, making them suitable for outdoor use as well. Labelling is done in black on white, ensuring high readability.

Functions and Equipment in Detail
The P-TOUCH E110 supports ribbons in widths of 3.5 mm, 6 mm, 9 mm and 12 mm, with a maximum print height of 9 mm. The print speed is up to 20 mm per second, equivalent to 0.8 labels per minute. The resolution is 180 x 180 DPI, ensuring clear and sharp text. The device features a manual cutting unit, activated with a single finger press. It offers 9 memory slots for label templates, with up to 720 characters per slot. The integrated Helsinki font is available by default, and up to 9 different styles (e.g. bold, italic, outline) and 5 font sizes can be selected. Additionally, 200 industrial symbols are available, useful for technical applications.

Technology Explained Simply
The printing technology is based on thermal transfer, where ink is transferred from the ribbon onto the label material. The used TZe ribbons are laminated, ensuring high resistance to mechanical stress, moisture and chemicals. The maximum label length is 300 mm, with a print width up to 12 mm. The QWERTZ keyboard allows for quick input, and the integrated print preview on the LCD display shows the text before printing. The automatic power-off saves energy when the device is not in use.

Compatibility and Accessories
The device is compatible with HGe- and TZe ribbons, with TZe ribbons available in various widths (3.5 to 12 mm). The ribbons are suitable for a wide range of applications, including flexible ID ribbons for cable labelling. The use of extra-strong adhesive variants is also possible. As accessories, a transport case and a safety strap are included in the delivery, to safely transport the device during work.

Mounting and Installation
The device is designed as a handheld unit and requires no mounting. It is simply picked up and operated. Operation is via the keyboard and function keys, designed for common tasks such as cable labelling or serial number printing.

Operational Advantages
The P-TOUCH E110 stands out for its ease of use, robustness and longevity. The laminated labels are resistant to abrasion, moisture and UV light, ensuring long-term durability even under harsh operating conditions. Integrated functions such as serial numbering, multiple prints and memory slots for frequently used labels increase work efficiency. The device is lightweight (486 g) and compact (92 x 198 x 275 mm), making it ideal for mobile applications. The support for 20 languages, including German, English, French and Spanish, enables international use.

Delivery Contents
The device is delivered with a 12 mm TZe Flexi Tape (black on white, laminated), a transport case, an instruction manual, a warranty card and a power adapter.

Operating Conditions
The device can be operated at temperatures between 10 °C and 35 °C. For storage, temperatures between -20 °C and 60 °C are permissible.

Power Supply
Power is supplied via 6 AAA alkaline batteries (output voltage 9 V, output current 1.6 A) or optionally via a power adapter. The automatic power-off after inactivity reduces energy consumption.

Design and Operation
The device features a black-orange colour design and is equipped with a QWERTZ keyboard. The LCD display shows a text line with 16 characters. Operation is via keys, with special function keys provided for common tasks such as cable labelling or serial numbering.

Additional Functions
The device offers a print preview, a ribbon memory for 9 labels, serial numbering (up to 50 numbers) and the ability to print up to 9 copies of a label. The ribbon width detection automatically recognises the used ribbon width. Underlining is available as a formatting option.

Manufacturing and Logistics Data
The device is manufactured in the Philippines. Packaging dimensions are 314 x 279 x 116 mm, and the package weight is 864 g. The tariff code is 84433210. The warranty period is 2 years, with the warranty card included in the delivery.

Spare Parts and Maintenance
The spare parts availability is 5 years. Maintenance involves replacing the cutting blade and batteries.

Battery
Battery technologyAlkaline
Design
Product colourBlack, Orange
DisplayLCD
Control typeButtons
Display number of lines1 lines
Display number of characters16
Keyboard layoutQWERTY
Built-in displayYes
Logistics data
Harmonized System (HS) code84433210
Pallet gross height15.9 cm
Pallet gross weight173.4 kg
Master (outer) cases per pallet60 pc(s)
Master (outer) cases per pallet layer12 pc(s)
Layers per pallet5 pc(s)
Products per pallet180 pc(s)
Operational conditions
Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-20 - 60 °C
Other features
Label memory9 label(s)
Country of originPhilippines
Languages supportCzech, Danish, German, Dutch, English, Spanish, Finnish, French, Hungarian, Italian, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Swedish, Turkish
Number of languages20
Spare part retention5 year(s)
Print previewYes
Packaging content
Cartridges quantity1 pc(s)
Cartridge(s) includedYes
Warranty cardYes
ManualYes
Packaging data
Package width314 mm
Package depth279 mm
Package height116 mm
Package weight864 g
Paper handling
Maximum label width1.2 cm
Maximum label length0.3 m
Supported paper width3.5, 6, 9, 12 mm
Performance
Number of characters200
Tape typeHGe/TZe
Number of styles9
Font stylesHelsinki
UnderlineYes
CutterYes
Tape size detectionYes
Ports & interfaces
Ethernet LANNo
Wi-FiNo
BluetoothNo
USB portNo
Power
AC adapter output voltage9 V
AC adapter output current1.6 A
Battery typeAAA
Number of batteries supported6
Auto power offYes
Printing
Print technologyThermal transfer
Maximum resolution180 x 180 DPI
Print speed20 mm/sec
Printing coloursBlack
Maximum printing width1.2 cm
Maximum print height9 mm
Text alignmentCenter, Left
ColourNo
Technical details
Lines quantity2 lines
Pallet type800 x 1200 mm
Weight & dimensions
Width92 mm
Depth198 mm
Height275 mm
Weight486 g


Product data sheet
Datasheet for Brother PTE110G1, EAN: 4977766774819
