BlackBox VX-VGA520-K
Mini CATx VGA extender kit up to 150m

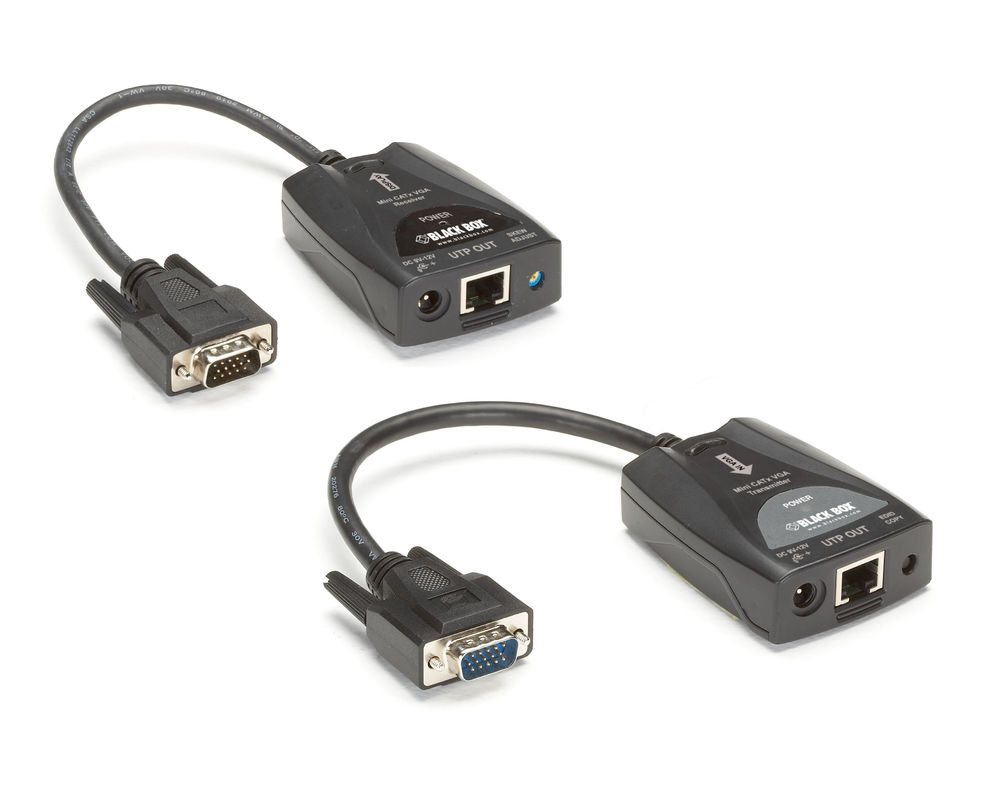

Mini CATx VGA Extender Kit

The Mini CATx VGA Extender Kit is a compact, budget-friendly solution for transmitting VGA video signals over distances of up to 150 meters – ideal for applications where traditional, bulky VGA cables are impractical. By using a CAT5/5e/6 cable, installation becomes simpler, and existing network cables can be used. With automatic image adjustment and a video equalizer, images are transmitted in excellent quality, even over long distances.

This set includes a transmitter, receiver, and a power supply that can be connected to either the transmitter or receiver to power both units. The transmitter’s EDID copy feature allows for precise monitor information transfer to the source, ensuring that the video card automatically selects the optimal resolution and refresh rate for the display.

The Mini CATx VGA Extender Kit supports VGA resolutions up to 1920 x 1200 (including 1080p). Its compact design allows for discreet installation, making it ideal for public spaces or tight spaces.

Technical Data:

Transmission Distance:

• Maximum range: 150 m (500 ft) over CAT5/5e/6 cable

Video Resolution:

• Supports VGA resolutions up to 1920 x 1200, including 1080p

Connections:

Both Units:

• Video: 1x HD15 female connector (on 7” lead)
• Interconnect: 1x RJ-45

Power Supply:

• From the included power supply unit, connectable to either transmitter or receiver
• Input: 100–240 VAC, 50–60 Hz
• Output: 12 VDC, 0.6 A

Unit Dimensions:

• Size per unit: 1,9 cm ( 0,8 inch ) (H) x 5,6 cm ( 2,2 inch ) (W) x 7 cm ( 2,8 inch ) (D) with VGA connector on 7” lead

Weight:

• Per unit: 0.1 kg (0.2 lb.)

Special Features:

• Video equalizer for optimal image quality over long distances
• EDID copy feature for optimal communication between source and display

Warranty:

• 3 years Double Diamond™ (standard)
