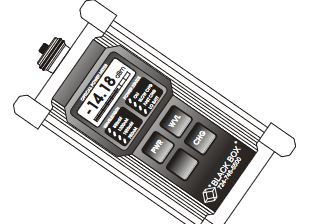

BlackBox TS1300A FIBER OPTIC POWER METER AND LED SOURCE

Fibre Optic Power Kit

Fibre Optic Power Meter and LED Source Kit – Perform precise optical measurements in the field.

- Measures power loss in passive optical components.
- Rugged construction/Waterproof case for field use.
- Large, easy-to-read LCD display.
- Stores up to 999 readings per wavelength.
- Warranty: 2-Year Double Diamond™ (Standard).

The Fibre Optic Power Meter and LED Source Kit enable precise measurement of power loss in fiber cable, connectors, attenuators, and other passive optical components. Calibrated at four wavelengths, the meter measures power levels from +20 dBm to -60 dBm, with true 0.01 dBm resolution across all levels, ensuring accuracy even below -45 dBm.

Featuring rapid response, it delivers near-instant readings at most levels. In relative mode, it stores zero reference readings for each wavelength independently in non-volatile memory, allowing the meter to be turned off between locations to conserve battery life. It also features a 1-dB analog deviation indicator and a real-time unaveraged mini-display for splice tuning.

The meter can store up to 999 test results per wavelength, which can then be uploaded to a PC. The LED source provides the temperature-stabilized light output required by the power meter, with output wavelengths of 850 nm and 1300 nm, which can be operated in CW, 30 Hz, 500 Hz, or 2 kHz modes.

### Technical Specifications

Power Meter::
Battery Life: 10 hours
Charging Time: Trickle: 12-14 hours; Quick: 1 hour
Detector: Germanium
Display: dB, dBm
Environmental:
- Operating Temperature: -5 to +45 °C
- Storage Temperature: -10 to +68 °C
- Humidity: 10 to 90% non-condensing
Measurement Range:
- 1300-1550 nm: +3 to -60 dBm
- 850 nm: +8 to -55 dBm
Resolution: 0.01 dB
Power Stability: ±0.25 dB
Wavelengths: 850 nm, 1300 nm, 1310 nm, 1550 nm
Connectors: (1) ST
Power: (4) AA alkaline batteries (not included)
Size: 19.1 H x 9.5 W x 3.8 D cm
Weight: 0.5 kg

LED Source::
Bandwidth: 35/170
Battery Life: 10 hours
Emitter: LED
Environmental:
- Operating Temperature: -5 to +45 °C
- Storage Temperature: -10 to +68 °C
- Humidity: 10 to 90% non-condensing
Modulation: 30 Hz, 500 Hz, 2 kHz
Output Power: -17 dBm minimum
Stability: ±0.05/0.08 dB/8 hours
Wavelengths: 850/1300 nm
Connectors: (1) pair of ST
Power: (1) 9-volt alkaline battery (included)
Size: 17.1 H x 5.7 W x 3.8 D cm
Weight: 0.3 kg
