BlackBox TL400A 2U MODEM SPLITTER RACKMOUNT CHASSIS

RS-232 Modem Splitter Cards

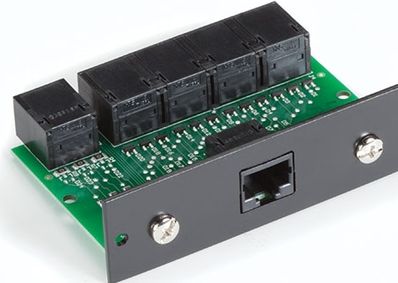

Designed for the 48,3 cm ( 19 inch ) chassis TL400A, these cards split data from a single modem or port to up to seven users per card.

- Compatible with the RS-232 Modem Splitter Rackmount Chassis (TL400A).
- Allows up to seven RS-232 terminal devices to share a single modem.
- Transmits data received from the modem to all attached terminal devices.
- Passive and non-powered; operates transparently to data formats and speeds.
- Warranty: 1 Year Double Diamond™ (Standard).

Use the RS-232 Modem Splitter Card with the 2U Rackmount Chassis (TL400A) to efficiently connect up to four terminals to a single modem.

This setup saves the expense of purchasing and installing multiple modems and modem lines. It’s easy to configure, with no user-configurable switches, jumpers, or settings on the splitter. Simply connect the modem and terminal (DTE) devices to the card, then power up your modem and terminals as usual.

The master port connects to the modem via an RJ-45 straight-through cable and the appropriate RJ or DB adapter, while the other ports connect to DTE terminal devices.

Note: Only one terminal device can send data to the modem at any given time.

### Technical Specifications

Approvals: CE, RoHS2
Connectors:
- TL421-C:
- (1) Single RJ-45 Connector: MASTER
- (1) Quad RJ-45 Connector: PORT 1-4
- 5-, 6-, and 7-port models have additional “Port n” connectors on the rear of the card
Environmental:
- Operating Temperature: 0 to 70° C
- Storage Temperature: -20 to 85° C
- Humidity: Up to 95% non-condensing
Interface: RS-232
Supported Leads:
- Pins 3, 4, 5, 7, and 8 connected straight through between MASTER and PORT 1-n.
- Pins 1, 2, and 6 “diode ORed” from PORT 1-n to the MASTER port
MTBF: >100,000 hours
Power: Non-powered; no power supply required
Weight: 45 g
