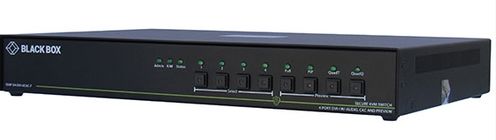

BlackBox SS4P-SH-DVI-UCAC-P SECURE KVM SWITCH, SH, 4-PORT, DVI-I, USB, PREVIEW

Secure KVM-Switch, NIAP 3.0, DVI-I Multiviewer

Control up to four computers from a single console and monitor up to four different secure sources on one monitor.

- Provides secure access to multiple computers across different networks.
- Protects critical data from accidental transfers, unauthorized access, and corruption.
- Ideal for organizations managing sensitive data across networks with varying security levels.
- Control up to four secure sources on a full-screen display and monitor all four sources on a second screen with a 4-in-1 view.
- Certified per NIAP Protection Profile Version 3.0.
- Supports Windows, Mac, and Linux OS.
- DVI-I channels with Dual-Link DVI resolutions up to 2560 x 1600.
- Secure EDID learning and emulation for compatibility with most monitors.
- Supports balanced speaker output and switching.
- Lockable power supply for stable operation.
- Configurable CAC port to assign peripherals to the switch.
- TEMPEST options available; contact sales for more information.
- Warranty: 3 years Double Diamond™ (Standard).

Key Security Features:

- Each port has isolated data channels to ensure no data flows between secure ports and the outside world.
- Mechanical, electrical, and optical isolation prevents hacking and data leaks in critical security environments.
- Protected firmware prevents reprogramming or unauthorized access.
- Clears keyboard and cache data upon switching.
- Tamper-proof casing with intrusion protection.

NIAP PP3.0-certified secure KVM switches from Black Box provide secure desktop solutions with cyber-attack protection for government, finance, healthcare, traffic control, and education. These secure KVM switches allow ultra-secure switching between up to 16 computers from an ergonomic workstation.

Comprehensive Secure KVM Switch Portfolio:

- Models with 2, 4, 8, or 16 computer ports.
- 4K digital and analog options with consoles for up to four monitors.
- KM switches with dedicated monitor and mouse switching.
- Single-user or matrix switches for up to four users.
- 4-port Multiviewer KVM switch with full-screen and 4-in-1 view.
- 1-port KVM protector.

Secure KVM Switch with 4-in-1 DVI-I Multiviewer:

This KVM switch supports a user console with DVI, HDMI, or VGA monitor, USB keyboard and mouse, computer audio, and optional CAC port. The 4-port switch allows multiviewing of four sources on one display. Multiple viewing modes available. Front-panel buttons and LED indicators allow secure switching.

Technical Specifications:

- Certifications: NIAP PP 3.0, CE, RoHs-compliant, UL, TAA-compliant.
- Video Formats: DVI-I Dual-Link, DVI 1.0, DVI-D, VGA.
- Max Resolution: 2560 x 1600 at 60 Hz (up to 3840 x 2160 at 30 Hz with HDMI adapter).
- Pixel Clock: Up to 248 MHz.
- Data Rate: 1.65 Gbit/s.
- Max Cable Length: 6 m for input and output cables.
- USB Signal Type: USB 1.1 for keyboard and mouse with emulation.

Connections:

- To Computers:
- DVI-I (4),
- USB Type B for keyboard/mouse (4),
- USB Type B CAC (4),
- 3.5-mm audio input (4).
- User Console:
- DVI-I (1),
- USB Type A for keyboard/mouse (2),
- USB Type A CAC (1),
- 3.5-mm audio output (1).

Power Supply:

- External, lockable, 100-240 VAC, 12 VDC, 3 A.

Operating Conditions:

- Temperature: 0 to +40 °C,
- Storage: -20 to +60 °C,
- Humidity: up to 80%, non-condensing.

Dimensions:

- Size: 31.93 W x 6.9 H x 16.99 D cm,
- Weight: 1.9 kg.

TAA-compliant: Yes
