BlackBox SS4P-QH-DVI-UCAC SECURE KVM SWITCH, QH, 4-PORT, DVI-I, USB, CAC

Secure KVM-Switch, NIAP 3.0, DVI-I Quad-Head

Control up to four computers from a single console with four monitors, while maintaining full information security.

Access up to four computers across various networks and security levels.
Isolated data channels ensure sensitive data remains secure and prevent data leaks.
Operate systems through a single console with up to four DVI-I monitors.
Native DVI-I resolution up to 2560 x 1600 at 60 Hz.
Ultra-HD resolution up to 3840 x 2160 at 30 Hz (via adapter).
Secure EDID learning and emulation for reliable monitor connections.
Supports balanced speaker outputs and audio switching.
USB and PS/2 keyboard and mouse connections.
Configurable CAC port enables users to assign specific peripherals to the switch.
Compatible with Windows, Mac, and Linux OS.

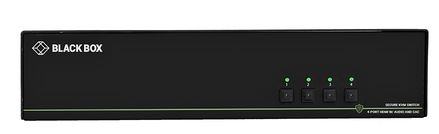

Front buttons with LED indicators show active system.
Lockable external power supply with efficiency level VI.
Additional security features available.
Warranty: 3 years Double Diamond™ (Standard).

Main Security Features:

Certified according to NIAP Protection Profile Version 3.0.
Protects against unauthorized data transfers, access, and data loss.
Each port has isolated data channels, preventing data transfers to external systems.
Mechanical, electrical, and optical isolation defends against hacking and data leaks.
Firmware protection prevents unauthorized reprogramming or access by intruders.
Emulation for keyboard, mouse, and video, automatic clearing of keyboard/internal cache.
Tamper-proof construction and housing protection for physical security.

Secure KVM-Switch for Single Console with Quad DVI-Video:

Supports up to four DVI or VGA monitors, USB keyboard and mouse, and audio. Older PS/2 keyboards and mice can be connected via adapter. The additional CAC port increases security by assigning specific peripherals authorized by an administrator. Switching is done via front buttons with LED indicators for secure and intuitive control.

Product Benefits and Applications:

Black Box Secure KVM switches are ideal for public safety, defense, finance, and healthcare.
The KVM portfolio includes solutions for different security needs and applications:
- Up to 16 computer ports
- 4K video options for up to four monitors
- Matrix switches for multi-user applications

Technical Specifications:

Certifications: NIAP PP3.0, UL, CE, RoHS compliant.
Video format: DVI-I Dual Link, DVI 1.0, DVI-D, XVGA.
Max. resolution: 4K (3840 x 2160 at 30 Hz, via HDMI/DVI adapter).
Pixel clock: Up to 248 MHz.
DDC: 5 Volt p-p (TTL).
Data rate: 1.65 Gbit/s.
USB emulation for keyboard and mouse.
Connections:
- Video input: (16) DVI-I (29-pin).
- Video output: (4) DVI-I (29-pin).
- USB input: (4) USB Type B (keyboard/mouse) + (4) USB Type B CAC.
- PS/2 output: (2) 6-pin Mini-DIN connectors.
- Audio input: (4) 3.5 mm stereo.
- Audio output: (1) 3.5 mm stereo.

Physical Specifications:

Power supply: Lockable external power supply, 100-240 VAC, 2 VDC 2 A at 36 W.
Operating temperature: 0 to 40 °C; Storage temperature: -20 to +60 °C.
Relative humidity: Up to 80%, non-condensing.
Dimensions: 31.93 W x 12.45 H x 16.99 D cm.
Weight: 2.26 kg.
