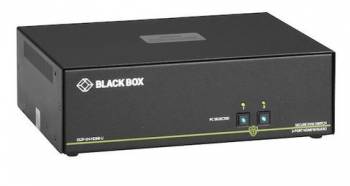

BlackBox SS4P-DH-DP-U SECURE KVM SWITCH, DH, 4-PORT, DP, USB

Secure KVM Switch, NIAP 3.0, 4K DisplayPort Dual-Head

Control up to four computers with a single user console while ensuring comprehensive information security. The NIAP PP3.0-certified KVM switch provides secure access to multiple computers connected across different networks.

Enables secure access to multiple computers in isolated networks.
Protects critical data from accidental transfers, unauthorized access, and damage.
Ideal for organizations managing sensitive data in networks with various security levels.
Certified according to NIAP Protection Profile Version 3.0.
Supports Windows, Mac, and Linux OS.
4K Ultra-HD DisplayPort 1.2 (3840 x 2160 at 30 Hz).
Secure EDID learning and emulation ensures compatibility with most monitors.
Supports balanced speaker outputs and audio switching.
Lockable power supply for added security.
Optional CAC port configuration allows specific peripheral assignment.
Warranty: 3 years Double Diamond™ (Standard).

Certifications:

NIAP PP3.0-compliant according to common criteria
CE-compliant
RoHS-compliant
UL-certified
TAA-compliant

Key Technical Specifications:

Video Format: DisplayPort 1.2
Max Resolution: 4K UHD 3840 x 2160 at 30 Hz
Pixel Clock: up to 248 MHz
DDC: 5 Volts p-p (TTL)
Data Rate: 1.65 Gbps
Input EQ: Automatic
Max Input Cable Length: 6 m
Max Output Cable Length: 6 m

USB Signal Type: USB 1.1 for keyboard and mouse only (USB emulation)

Operation:

Front-panel buttons for secure and easy switching

Connections:

To Computers:
(4) or (8) DisplayPort connectors (20-pin)
(2) or (4) USB Type B for keyboard/mouse
Additional CAC options: (2) or (4) USB types
(2) or (4) 3.5-mm audio jacks

To User Console:

(2) DisplayPort connectors (20-pin)
(2) USB Type A for keyboard and mouse
CAC options: (2) USB Type A
(1) 3.5-mm audio jack

Power Supply:

Lockable external power supply, 100 - 240 VAC, 12 VDC, 3 A, lockable adapter with positive center pin polarity

Environmental Conditions:

Operating Temperature: 0 to +40 °C
Storage Temperature: -20 to +60 °C
Relative Humidity: 0 to 80%, non-condensing

Dimensions and Weight:

2-port model: 224 W x 67 H x 170 D mm, weight: 1.74 kg
4-port model: 319 W x 45 H x 170 D mm, weight: 1.9 kg

TAA Compliance: YES
