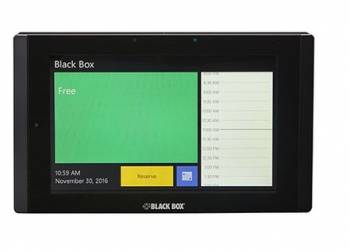

BlackBox RS-TOUCH7-M ROOM SCHEDULER 17,8 cm ( 7 inch ) ON WALL

IN-SESSION Room Booking System

The IN-SESSION Room Booking System allows seamless reservation and management of meeting and conference rooms through an intuitive touch panel. This solution integrates directly with popular calendar services such as Microsoft Office 365, Microsoft Exchange Server, and Google Apps for Work, enabling instant booking, extension, and cancellation of appointments. The current room status and availability can be viewed in real time on the touch panel.

Suitable for businesses of all sizes, the system can be mounted on glass walls, flush with the wall, or any other surface. Installation and configuration are quick and straightforward through the touch panel or a web GUI, and the system is powered via PoE. The 7-inch or 12-inch display options provide optimal customization to meet room needs and setup.

Key Features:

• Ideal for managing meeting rooms, conference spaces, auditoriums, classrooms, and other venues.
• Real-time room status and availability display, including room calendar and meeting details.
• Direct integration with Microsoft Office 365, Microsoft Exchange, and Google Apps for Work.
• Simple, quick installation with no programming; configuration via touch panel or web GUI.
• Compatible with small businesses and large enterprises, suitable for managing single or multiple rooms.
• Wall mounting on various surfaces, including glass walls.
• Choice of 7-inch and 12-inch displays for flexible use.

Technical Specifications:

• Connections: (1) RJ-45 for 10/100BaseT Ethernet
• Display Type: Color a-Si TFT-LCD with LED backlight
• Display Sizes: 7-inch or 12-inch diagonal
• Resolution: 1280 x 800 pixels
• Viewing Angle: ±80° horizontal and vertical
• Touch Technology: Projected capacitive
• Sensors: Light and proximity sensors
• LED Indicators: Green for available, Red for occupied
• Power Supply: IEEE 802.3af PoE, 100-240 VAC, 50/60 Hz
• Enclosure: IP30 aluminum with full glass front
• Mounting: Compatible with standard electrical outlets
• Wall Mount:
- RS-TOUCH7-M: Protrudes only 2.6 cm from the wall
- RS-TOUCH12-M: Protrudes only 4.6 cm from the wall

• Dimensions:
- RS-TOUCH7-M / RS-TOUCH7-W: 12 x 19.9 x 3.9 cm
- RS-TOUCH12-M / RS-TOUCH12-W: 20 x 32 x 4.7 cm

• Weight:
- RS-TOUCH7-M: 0.8 kg
- RS-TOUCH7-W: 0.6 kg
- RS-TOUCH12-M/RS-TOUCH12-W: 2.2 kg

• TAA Compliant: Yes

Included Items:

• IN-SESSION Room Booking System (7- or 12-inch display option)
• Power supply (PoE adapter)
• User manual

Special Features:

• Multilingual user interface (e.g., German, English, French, Russian).
• Intuitive touchscreen operation and status display with color-coded LEDs.
• Durable aluminum housing for long-lasting installation and high design quality.

The IN-SESSION Room Booking System optimizes room utilization through easy booking and management, improves efficiency in the workplace, and allows centralized management of multiple rooms.
