BlackBox PS290

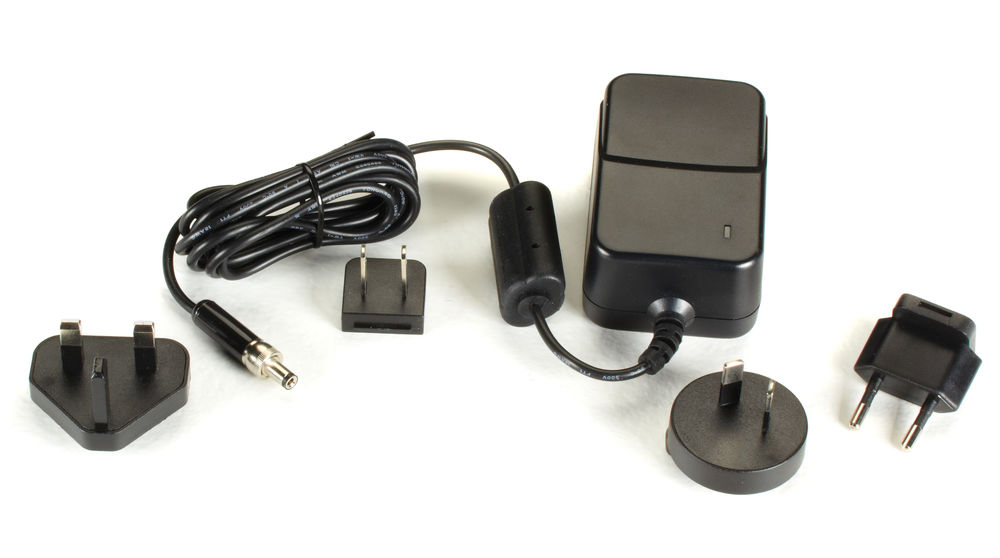

Power supply for industrial/medical-grade USB hub (ICI200A, ICI202A) 12V DC with locking connection and adapter inserts for and S., and K. and Europe
|
144,96 EUR |
|||||||||||
|
( 172,50 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 963675 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | PS290 | ||||||||||
| UPC/EAN: | 00822088077763 | ||||||||||
| Weight: | 0.45 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BlackBox PS290:
Product Description in English:
The Industrial-Grade Isolated USB Hub offers rugged ESD protection and isolation, ensuring maximum uptime for USB devices in industrial environments. With high-level electrostatic discharge protection (Level 4, 15 kV) and 4 kV isolation between upstream and downstream ports, this hub provides secure, reliable USB connectivity even in environments with high electromagnetic interference (EMI).
Housed in a durable, IP30-rated metal enclosure, this hub is built to withstand challenging conditions. It meets UL® standards for use in Class 1 Division 2 hazardous areas and complies with EN60601-1-2 for medical electronics. Additionally, it operates within a wide temperature range of -40 to +80 °C and withstands vibrations (4g) and shock up to 50G.
This USB hub is compatible with USB 1.1 and USB 2.0, supporting transfer rates up to 12 Mbps. High-retention ports ensure secure cable connections, preventing data loss due to vibrations. Powered externally via a 10–30 VDC input, either through a locking barrel plug or terminal block, the hub supplies 500 mA to each USB port. It includes DIN rail and panel mounting brackets.
Features:
- High ESD Protection: Level 4, 15 kV electrostatic discharge protection
- Isolation: 4 kV between upstream and downstream ports
- Operating Temperature: -40 to +80 °C
- Robust IP30-rated metal housing, UL® listed for Class 1 Division 2 hazardous areas
- Standards: EN60601-1-2 for medical electronics
- Shock and Vibration Resistant: Tested to 50G (shock) and 4g (vibration)
- USB Speed: Supports 12 Mbps (USB 2.0, USB 1.1 compatible)
- Mounting: Includes DIN rail and panel mounting accessories
Applications:
- Industrial control systems and production lines
- KVM extensions
- Medical applications, e.g., USB connections on medical devices
- Environments with heavy electromagnetic interference (e.g., near variable frequency drives)
- Rugged environments with high vibration or shock
Technical Specifications:
MTBF:
- 190,999 hours (MIL 217F parts count reliability calculation)
Standards:
- USB 1.1, USB 2.0
ESD Protection (USB Interface):
- 15 kV (air), 8 kV (contact)
Isolation:
- 4 kV isolation between upstream and downstream ports
Surge Protection:
- +/- 0.5 kV (DC ports), +/- 1 kV (signal ports)
USB Speed (Maximum):
- 12 Mbps
Connectors:
- Upstream Port: 1 x USB Type B female (high retention, >15 N withdrawal force)
- Downstream Ports: 4 or 7 x USB Type A female (high retention, >15 N withdrawal force)
Indicators:
- 6 LEDs: (1) USB Bus Power, (1) External Power, (4-7) USB Port Ready
Operating Environment:
- Temperature: -40 to 80 °C
- Humidity: 0 to 95%, non-condensing
Power Supply:
- Input: External 10–30 VDC power supply* (via terminal block or locking barrel plug)
- Output: 5 VDC
Dimensions:
- ICI202A: 3.6H x 14W x 8.8D cm
- ICI208A: 3.6H x 20.3W x 12.1D cm
Weight:
- 0.6 kg
Note:
- External power supply PS290 sold separately
Warranty:
