BlackBox PS263 SPARE POWER SUPPLY USB EXTENDERS 24VDC

Product Description in English:

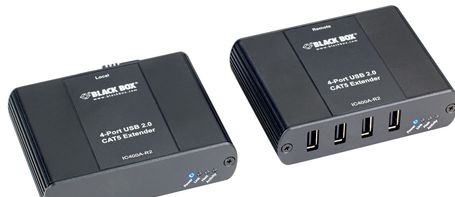

The USB Ultimate Extender over CATx extends USB 2.0 connections up to 100 meters over CATx cable, providing reliable USB connectivity in large installations. This extender supports USB 2.0 and USB 1.1 devices such as printers, scanners, hard drives, touchscreens, audio equipment, or webcams, and requires no driver installation. Thanks to true Plug & Play functionality, it is extremely easy to install and ready to use right out of the box.

The “Mass Storage Acceleration” feature enables accelerated data transfer for high-capacity USB 2.0 devices. The extender is compatible with major operating systems, including Windows, MacOS, and Linux, and is ideal for USB applications in industrial control, KVM extension, digital signage, security, and medical fields. It also supports Genesys hubs for maximum connectivity.

The IC402A-R2 version with 2 USB ports powers the remote unit through the CAT5 cable, allowing for flexible installation without the need for a power outlet near the remote hub. Each port is powered with 750 mA. The 4-port IC400A-R2 version includes an external power supply, delivering 1 A per USB port (or 600 mA when all four ports are in use). The local unit requires no additional power for operation.

Features:

• Extension Range: USB 2.0/1.1 up to 100 meters over CATx cable
• Compatibility: Windows, MacOS, Linux; no driver installation needed
• Plug & Play: Ready to use immediately
• High Transfer Rates: Supports all USB transfer modes (Control, Interrupt, Bulk, isochronous)
• Mass Storage Acceleration for high-speed data transfer
• IC402A-R2 powers remote hub via CAT5 cable, remote ports provide 750 mA
• IC400A-R2 with external power supply, 1 A per port (600 mA if all ports used)

Applications:

• Industrial control
• KVM extensions
• Digital signage
• USB connections to remote desktop
• Security applications (e.g., webcams, access control)
• Medical applications
• Shared USB devices (e.g., printing, scanning)

Technical Specifications:

Connectivity:

• Supports up to 30 USB devices, compatible with Genesys hubs

Range:

• Up to 100 meters over CAT5e or better cables

Standards:

• FCC (Class B), IC (Class B), CE (Class B); ESD Protection: EN-61000-4-2:2001, 4 kV contact discharge, 8 kV air discharge

Connectors:

• Both Versions: Local unit: 1 x USB Type B, 1 x RJ-45
• IC400A-R2 Remote Unit: 4 x USB Type A, 1 x RJ-45
• IC402A-R2 Remote Unit: 2 x USB Type A, 1 x RJ-45

Power Supply:

• IC400A-R2: Local unit does not require power; Remote unit: 24 VDC @ 3 A (4 x 600 mA)
• IC402A-R2: Local unit: 24 VDC @ 1 A; Remote unit: 2 x 750 mA

Dimensions (Local and Remote Unit):

• IC402A-R2: 87 x 75 x 26 mm
• IC400A-R2: 100 x 76 x 26 mm

Weight:

• 1.0 kg

Environmental Conditions:

• Operating Temperature: 0 to 50 °C
• Humidity: 20 to 80 %, non-condensing

Warranty:

• 2 Years Double Diamond™ (Standard)
