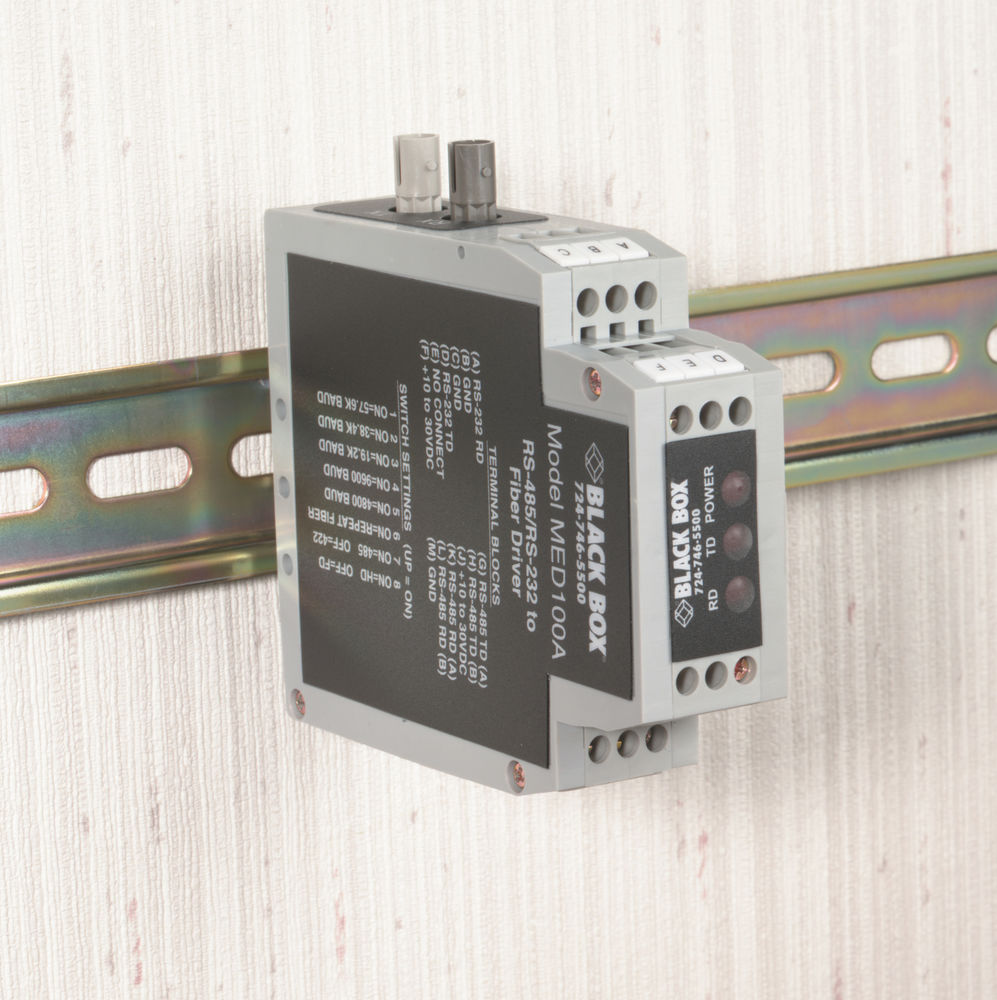

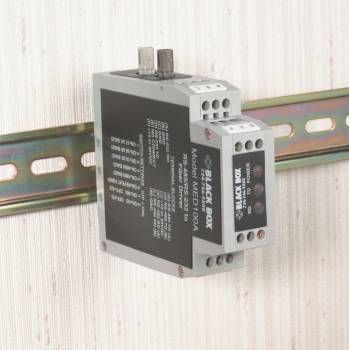

BlackBox MED100A Amplifier for DIN rail S232/RS485 fiber optic multimode ST calibration range Max.: 4 km temperature: -40 to 80°c
|
384,00 EUR |
|||||||||||
|
( 456,96 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 181895 | ||||||||||
| Mfg Part No: | MED100A | ||||||||||
| UPC/EAN: | 00822088078319 | ||||||||||
| Weight: | 0.24 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BlackBox MED100A:
Take your industrial communication to the next level
Connect any two serial devices over fiber optics (FO).
Communicate in half- or full-duplex over two multimode ST® fibers for distances up to 4 km.
RS-232 signals supported at speeds up to 115.2 Kbps.
RS-422 or RS-485 speeds up to 460.8 Kbps.
Use these drivers instead of optical isolators or repeaters.
Mountable on DIN rail.
Warranty: 1 Year Double Diamond™ (Standard)
The RS-232/422/485 fiber optic line drivers enable you to connect any serial devices using half- or full-duplex communication over two multimode ST fibers for distances of up to four kilometers. RS-232 signals are supported at speeds up to 115.2 Kbps, and RS-422 or RS-485 signals reach up to 460.8 Kbps. These line drivers can also replace converters and optical isolators for connecting serial devices over longer distances.
Technical Specifications:
Transmission Mode:
- Half- or full-duplex over two multimode ST® fibers
Maximum Transmission Distance:
- 4 km
Maximum Transmission Speed:
- RS-232: up to 115.2 Kbps
- RS-422/RS-485: up to 460.8 Kbps
Supported Connections:
- RS-232, RS-422, RS-485
Mounting:
- Suitable for DIN rail mounting
Approvals:
- CE, RoHS
Power Supply:
- 100–240 VAC, 50/60 Hz (power supply included)
Dimensions:
- Height: 2.5 cm
- Width: 10.5 cm
- Depth: 9.5 cm
Weight:
- 0.4 kg
Questions & answers
What is the delivery time of BlackBox MED100A Amplifier for DIN rail S232/RS485 fiber optic multimode ST calibration range Max.: 4 km temperature: -40 to 80°c?
The article BlackBox MED100A Amplifier for DIN rail S232/RS485 fiber optic multimode ST calibration range Max.: 4 km temperature: -40 to 80°c is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 177 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BlackBox MED100A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you BlackBox MED100A Amplifier for DIN rail S232/RS485 fiber optic multimode ST calibration range Max.: 4 km temperature: -40 to 80°c always at the best possible price. We can give you a discount of 2% on BlackBox MED100A Amplifier for DIN rail S232/RS485 fiber optic multimode ST calibration range Max.: 4 km temperature: -40 to 80°c if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of BlackBox MED100A Amplifier for DIN rail S232/RS485 fiber optic multimode ST calibration range Max.: 4 km temperature: -40 to 80°c we can offer you a price of 372,48 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
