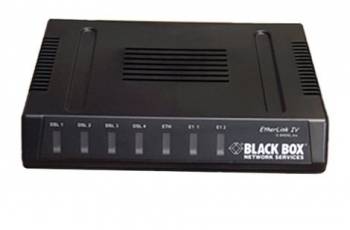

BlackBox MDS952AE-10BT-R2 G SHDSL-BIS ETHERLINK IV
|
702,72 EUR |
|
|
( 836,24 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1709699 |
|---|---|
| Mfg Part No: | MDS952AE-10BT-R2 |
| UPC/EAN: | 00822088147534 |
| Weight: | 0.03 kg |
Product information for BlackBox MDS952AE-10BT-R2:
The Next Generation of DSL Modems Ready to Build Your Metro Ethernet Network
G.SHDSL.BIS & G.SHDSL multi-rate line encoding.
Supports 802.3ah First Mile Ethernet.
Transmits data at up to 5.7 Mbps over distances of up to 3.5 km.
G.SHDSL mode supports ranges of 3.5 to 30 km.
Layer-2 managed Ethernet switch with VLAN support, 10/100BaseT.
Spanning Tree (RSTP) for ring applications.
Integrated cross-connect capability (multipoint).
Console, Telnet, and SNMP management.
Repeater available.
The EtherLink II DSL modem series from BLACK BOX provides a powerful and reliable solution for building a Metro Ethernet network. With support for the 802.3ah standard and G.SHDSL.BIS, EtherLink II can achieve data rates up to 5.7 Mbps over 3.5 km. For longer distances or lower line quality, it automatically switches to G.SHDSL mode, which ensures stable transmissions over extended ranges.
Designed as a managed Ethernet switch with Layer-2 functions, VLAN support, and Spanning Tree (RSTP), EtherLink II offers flexible, efficient network management. The models also provide comprehensive management options via console, Telnet, and SNMP protocols, enabling remote monitoring and configuration.
Specifications:
Performance and Range:
- Speed: Up to 5.7 Mbps (G.SHDSL.BIS); max 2.3 Mbps in G.SHDSL mode over longer distances
- Range: Up to 3.5 km in 802.3ah mode; 3.5 to 30 km in G.SHDSL mode
- VLAN support and Spanning Tree for ring applications
Connections:
- MDS952AE-10BT-R2: - 10/100BASE-TX: (1) RJ45
- MDS958C-NR-R2: - G.SHDSL-BIS Etherlink II
- Supported Standards: 802.3ah, G.SHDSL.BIS, G.SHDSL, 802.1q, 802.3, 802.3u
- Lightning and surge protection as per ITU-T K20/K21, IEC 1000-4-5 Class 2
- RS232/V.24 for monitoring/configuration: (1) DB9 Female
- DSL Route: (1) RJ45
- 4 wire pairs
- 4x Master/4x Slave
- 4x 10/100Base-T
Standards and Protection:
Management:
- Management options: VT100 (RS232/V.24), Telnet, HTTP (web-based), SNMP
Power Supply:
- MDS958C-NR-R2: External power supply 48 VDC @ 1 A (included)
- MDS952AE-10BT-R2: 48 VDC @ 500 mA
Dimensions and Environmental Conditions:
- Dimensions: 22 H x 16 W x 4 D cm
- Operating temperature: -30 to +75 °C
Questions & answers
What is the delivery time of BlackBox MDS952AE-10BT-R2 G SHDSL-BIS ETHERLINK IV?
The article BlackBox MDS952AE-10BT-R2 G SHDSL-BIS ETHERLINK IV is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 14 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BlackBox MDS952AE-10BT-R2 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you BlackBox MDS952AE-10BT-R2 G SHDSL-BIS ETHERLINK IV always at the best possible price. We can give you a discount of 2% on BlackBox MDS952AE-10BT-R2 G SHDSL-BIS ETHERLINK IV if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
