BlackBox LME1601E REDUNDANT PSU F/16-SLO CHASS

XS 1000 Media Converter

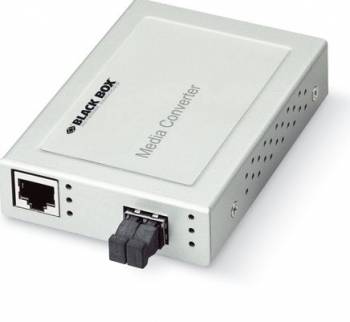

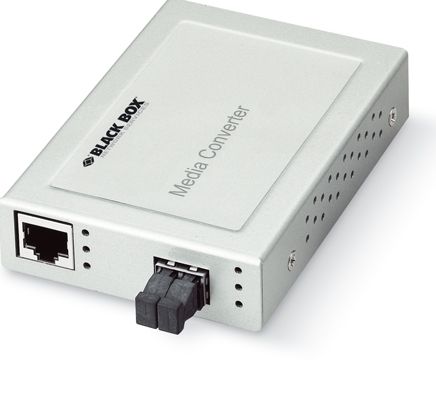

The XS 1000 Media Converter offers an economical solution for gigabit media conversion, converting 1000BASE-TX signals into 1000BASE-SX or 1000BASE-LX signals. Designed according to Gigabit Ethernet standards IEEE 802.3u and IEEE 802.3z, this device provides seamless, lossless transmission from copper to fiber networks.

The XS 1000 Converter’s TP port supports full duplex, auto-MDI/MDI-X, and auto-negotiation, making installation flexible and straightforward. Available options include multimode SC, single-mode SC connections, or a flexible SFP slot that accommodates both single-mode and multimode SFP modules, allowing the device to be tailored to specific range requirements.

With a well-thought-out design and LED diagnostic indicators, the converter immediately shows connection status. The XS 1000 media converters can be used as standalone units or mounted via optional DIN rail or wall mounts (mounts sold separately). For larger applications, the units can be integrated into a 19-inch rack system accommodating up to 16 slots, with an option for redundant power to enhance stability and reliability.

Key Features:

• Converts 1000BASE-TX signals to 1000BASE-SX or 1000BASE-LX
• Meets Gigabit Ethernet standards IEEE 802.3u for 1000BASE-T and IEEE 802.3z for 1000BASE-SX/LX
• TP port supports full duplex, auto-MDI/MDI-X, auto-negotiation
• Fiber port available with multimode SC, single-mode SC, or flexible SFP slot
• LED diagnostic indicators for quick connection overview
• Optional DIN rail or wall mount available
• Expandable to a 19-inch XS Media Conversion System with up to 16 slots

Technical Specifications:

Data Transfer Rate:

• Up to 2000 Mbps in full duplex mode

Models and Speeds:

• LGE217AE: 10/100/1000 Mbps (switched)
• LMCS212AE: 1000 Mbps

Transmission Distances:

• Twisted-pair cable: up to 100 m for 100BASE-T CAT5, CAT5e, or CAT6
• Multimode fiber (OM1 62.5/125 µm): up to 220 m
• Multimode fiber (OM2-OM4 50/125 µm): up to 550 m
• Single-mode fiber (OS1/OS2 9/125 µm): up to 10 km

Supported Media:

• 1000BASE-TX: CAT5, CAT5e, or CAT6 UTP/STP
• 1000BASE-SX: multimode 50/125 µm and 62.5/125 µm
• 1000BASE-LX: single-mode 9/125 µm

Standards:

• IEEE 802.3u 1000BASE-T
• IEEE 802.3z 1000BASE-SX/LX
• IEEE 802.3x Flow Control
• LGE217AE also supports IEEE 802.3ab 10BASE-T and IEEE 802.3 100BASE-T

Certifications:

• FCC Class A, CE Mark, RoHS

Wavelength:

• LMCS212AE-SC-R2: 850 nm
• LMCS212AE-SC10-R2: 1310 nm
• LGE217AE: per SFP specifications

Power Budget:

• LMCS212AE-SC-R2: -9.5 to -4 dBm
• LMCS212AE-SC10-R2: -9.5 to -3 dBm

Receiver Sensitivity:

• LMCS212AE-SC-R2: max. -18 dBm
• LMCS212AE-SC10-R2: max. -20 dBm

Ports:

• All models: (1) RJ-45
• LGE217AE additionally: SFP slot
• LMCS212AE-SC-R2 and LMCS212AE-SC10-R2: Duplex SC

LED Indicators:

• System: Power
• 1000BASE-T port: Link, FDX, and TX LEDs
• Fiber port: Link and Receive

Power Supply:

• External international power supply, 5 V DC, 1.4 A; max. consumption 4.8 watts

Operating Temperature:

• 0 to 40 °C

Humidity:

• 10% to 90% (non-condensing)

Dimensions:

LGE217: 102 x 74 x 23 mm (L x W x H)

Weight:

0.24 kg (without power supply)
