BlackBox LMCS212AE-SC10-R2 CONVR.1000TX/1000LX SC 10KMS

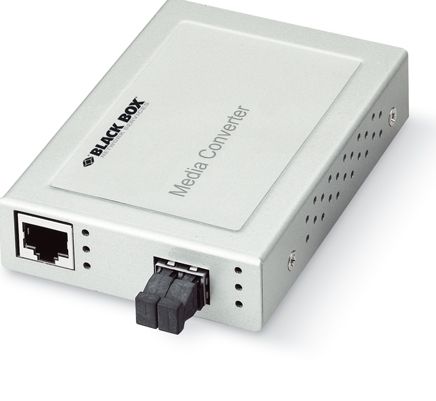

XS 1000 Media Converter

The XS 1000 Media Converter provides affordable gigabit media conversion, transforming a 1000BASE-TX signal into a 1000BASE-SX or 1000BASE-LX signal. Designed according to gigabit Ethernet standards IEEE 802.3u for 1000BASE-T and IEEE 802.3z for 1000BASE-SX/LX, this converter enables seamless copper-to-fiber networking. The TP port supports full duplex, auto-MDI/MDI-X, and auto-negotiation, offering flexibility in various network settings.

The converter is available with multimode SC, single-mode SC, or a versatile SFP slot. The SFP slot accepts both single-mode and multimode SFP modules, allowing users to configure the device for specific range needs. With XS Media Converters, setup is simple: plug in the RJ-45 cable, connect the fiber optic cable, and the connection is ready. The LED diagnostic indicators provide clear visibility into connection status.

XS 1000 Media Converters can be used standalone, mounted via DIN rail or wall, or integrated into a 16-slot, 19-inch rack for scalability, with an option for redundant power for added reliability. This converter supports data rates up to 2000 Mbps in full-duplex mode.

Key Features:

• Converts 1000BASE-TX signals to 1000BASE-SX/LX
• Complies with gigabit Ethernet standards IEEE 802.3u for 1000BASE-T and IEEE 802.3z for 1000BASE-SX/LX
• TP port supports full duplex, auto-MDI/MDI-X, and auto-negotiation
• Fiber options include multimode SC, single-mode SC, or flexible SFP slot
• LED indicators provide quick connection status overview
• Optional DIN rail or wall mounting
• Expandable to a 19-inch rack system

Technical Specifications:

Data Transfer Rate:

• Up to 2000 Mbps full duplex

Models and Speeds:

• LGE217AE: 10/100/1000 Mbps (switched)
• LMCS212AE: 1000 Mbps

Supported Distances:

• Twisted-pair cable: up to 100 m for 100BASE-T CAT5, CAT5e, or CAT6
• Multimode fiber (OM1 62.5/125 µm): up to 220 m
• Multimode fiber (OM2-OM4 50/125 µm): up to 550 m
• Single-mode fiber (OS1/OS2 9/125 µm): up to 10 km

Supported Media:

• 1000BASE-TX: CAT5, CAT5e, or CAT6 UTP/STP
• 1000BASE-SX: multimode 50/125 µm and 62.5/125 µm
• 1000BASE-LX: single-mode 9/125 µm

Standards:

• IEEE 802.3u 1000BASE-T
• IEEE 802.3z 1000BASE-SX/LX
• IEEE 802.3x Flow Control
• LGE217AE additional standards: IEEE 802.3ab 10BASE-T, IEEE 802.3 100BASE-T

Certifications:

• FCC Class A, CE Mark, RoHS

Wavelength:

• LMCS212AE-SC-R2: 850 nm
• LMCS212AE-SC10-R2: 1310 nm
• LGE217AE: per SFP specifications

Power Budget:

• LMCS212AE-SC-R2: -9.5 to -4 dBm
• LMCS212AE-SC10-R2: -9.5 to -3 dBm

Receiver Sensitivity:

• LMCS212AE-SC-R2: max. -18 dBm
• LMCS212AE-SC10-R2: max. -20 dBm

Ports:

• All models: (1) RJ-45
• LGE217AE: additional SFP slot
• LMCS212AE-SC-R2 and LMCS212AE-SC10-R2: additional duplex SC

LED Indicators:

• System: Power
• 1000BASE-T Port: Link, FDX, TX
• Fiber Port: Link and Receive

Power Supply:

• External international power supply, 5 V DC, 1.4 A; max consumption 4.8 watts

Operating Temperature:

• 0 to 40 °C

Humidity:

• 10% to 90% (non-condensing)

Dimensions:

LGE217: 102 x 74 x 23 mm (L x W x H)

Weight:

0.24 kg (without power supply)
