BlackBox LMCS212AE-SC-R2 Cvtr XS 1000BT/SX SC 220m/550m

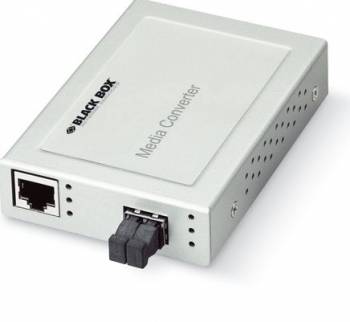

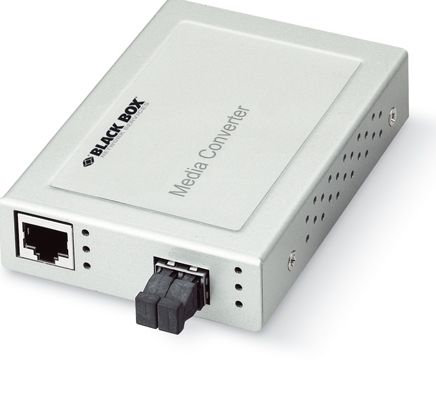

XS 1000 Media Converter

The XS 1000 media converters offer affordable gigabit Ethernet transmission by converting 1000BASE-TX signals into 1000BASE-SX/LX signals. Designed according to IEEE 802.3u and IEEE 802.3z gigabit Ethernet standards, this converter fulfills the requirements of modern network structures, with TP port features including full-duplex, auto-MDI/MDI-X, and auto-negotiation for flexible and efficient operation.

Supporting multimode fiber (SC connector), single-mode fiber (SC connector), and an optional SFP slot, these converters are adaptable to various range and operation needs. The SFP slot accepts both multimode and single-mode SFP modules, providing the flexibility for different network demands. The clear LED diagnostic indicators give instant feedback on connection status.

XS 1000 media converters can be used as standalone devices or optionally installed with DIN rail or wall mounts. They can also be integrated into a 19-inch rack with 16 slots, with the option to add redundant power for added stability. Maximum transfer speeds reach up to 2000 Mbps in full-duplex mode.

Key Features:

• Converts 1000BASE-TX signals to 1000BASE-SX/LX
• Gigabit Ethernet standards: IEEE 802.3u 1000BASE-T and IEEE 802.3z 1000BASE-SX/LX
• TP port supports full-duplex, auto-MDI/MDI-X, and auto-negotiation
• Fiber options include SC connectors for multimode and single-mode, or flexible SFP slot
• Optional DIN rail or wall mounting available
• Expandable to a 19-inch rack

Technical Specifications:

Data Transfer Rate:

• Up to 2000 Mbps full-duplex

Compatible Models and Speeds:

• LGE217AE: 10/100/1000 Mbps (switched)
• LMCS212AE: 1000 Mbps

Supported Distances:

• Twisted-pair cable: up to 100 m for 100BASE-T CAT5, CAT5e, or CAT6
• Multimode fiber (OM1 62.5/125 µm): up to 220 m
• Multimode fiber (OM2-OM4 50/125 µm): up to 550 m
• Single-mode fiber (OS1/OS2 9/125 µm): up to 10 km

Supported Media:

• 1000BASE-TX CAT5, CAT5e, or CAT6 UTP/STP
• 1000BASE-SX multimode 50/125 µm and 62.5/125 µm
• 1000BASE-LX single-mode 9/125 µm

Standards:

• IEEE 802.3u 1000BASE-T
• IEEE 802.3z 1000BASE-SX/LX
• IEEE 802.3x flow control
• LGE217AE: also IEEE 802.3ab 10BASE-T, IEEE 802.3 100BASE-T

Certifications:

• FCC Class A, CE Mark, RoHS

Wavelength:

• LMCS212AE-SC-R2: 850 nm
• LMCS212AE-SC10-R2: 1310 nm
• LGE217AE: per SFP specifications

Power Budget:

• LMCS212AE-SC-R2: -9.5 to -4 dBm
• LMCS212AE-SC10-R2: -9.5 to -3 dBm

Receiver Sensitivity:

• LMCS212AE-SC-R2: max -18 dBm
• LMCS212AE-SC10-R2: max -20 dBm

Ports:

• All models: (1) RJ-45
• LGE217AE: additional SFP slot
• LMCS212AE-SC-R2 and LMCS212AE-SC10-R2: additional duplex SC connector

LED Indicators:

• System: Power
• 1000BASE-T port: Link, FDX, TX LEDs
• Fiber port: Link and Receive LEDs

Power Requirements:

• External international power supply, 5 V DC, 1.4 A; max consumption 4.8 watts

Operating Temperature:

• 0 to 40 °C

Humidity:

• 10% to 90% (non-condensing)

Dimensions:

LGE217: 102 x 74 x 23 mm (L x W x H)

Weight:

0.24 kg (without power supply)
