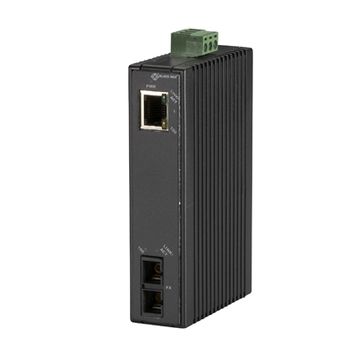

BlackBox LMC270A-SM-20K-SC MEDIA CONVERTER 10BASE-TX TO 100 BASE FX

Economy DIN Rail 10-100 Media Converter 1P

Durable DIN rail-mounted media converter for extending your network up to 20 km over fiber.

Direct DC Power Input: 12 to 48 VDC
Extended Operating Temperature: -10 to +60 °C
Transmission Distance up to 20 kilometers
Plug & Play Operation
DIN Rail Mountable
Warranty: 1 Year Double Diamond™ (Standard)

These cost-effective, unmanaged Layer 2 media converters make it easy to extend a 10 or 100 Mbps network over 100 Mbps fiber optic cable for distances of up to 40 kilometers.

The converter has an industrial-grade plastic case and complies with IEC 61000-Part 6-2 generic standards for electromagnetic compatibility (EMC) in industrial environments. It provides full wire-speed forwarding across the network. The Auto MDI/MDI-X copper port automatically negotiates 10/100 Mbps speed and auto-detects full or half-duplex mode.

The converters can be easily installed on a DIN rail, with the mounting kit included.

Technical Specifications:

Enclosure: Plastic case, IP30 rated
Filtering/Forwarding Rate:

• Ethernet: 14,880 pps
• Fast Ethernet: 148,800 pps
MAC Addresses: 2K
Distance:

• LMC270A-MM-SC/LMC270A-MM-ST: 2 km
Fiber Type:

• LMC270A-MM-SC: 1310 nm Multimode SC
• LMC270A-MM-ST: 1310 nm Multimode ST
Operating Temperature: -10 to +60 °C
Packet Buffer: 384 KB
Switching Processing Type: Store and forward with half-duplex backpressure and IEEE 802.3x full-duplex flow control
Connectors:

• All Models: Ethernet/Fast Ethernet (1) RJ-45
• Fiber Optic:
- LMC270A-MM-SC/LMC270A-SM-20K-SC: (1) pair of SC
- LMC270A-MM-ST: (1) pair of ST
Power:

• Input: 12–48 VDC (terminal block)
• Output: Based on the optional DC or AC power supply ordered
Size: 10.9 x 2.5 x 7.1 cm (H x W x D)
Weight: 0.2 kg
