BlackBox LMC206A-WALL-DC FLEXPOINT DC CONVERTER

FlexPoint Modular Media Converter Rack

FlexPoint Modular Media Converter Rack - the converter solution that grows with your network

More interface choices than any other system.
Single and dual AC or DC power supplies.
14 slot chassis, 5 unit rack or wallmount option.
Hot-swappable to cut your network's downtime.
Warranty: 1 Year Double Diamond™ (Standard)

FlexPoint® Modular Media Converters from Black Box are versatile and cost-effective standalone media converters that can be upgraded to a chassis-based system. They provide ultimate flexibility and reliability for your expanding multimedia LAN and support a wide selection of converter options, including legacy media converters like ThinNet and 10BASE-FL.

Choices include:

• Ethernet
• Fast Ethernet
• Gigabit Ethernet
• UTP
• Single-Mode Fiber
• Multimode Fiber
• ThinNet
• Long-distance Fiber Converters
• ATM OC-3
• ATM OC-12
• 10/100 Rate Converters
• T1/E1 Line Drivers
• RS-232

This impressive system's variety and versatility make it ideal for networks subject to constant upgrades and changes. Tailor the system to your needs: start with the media converters you require and use them individually. When your LAN grows, mount the media converters on the wall, in the 5-position Rackmount Kit, or as modules in the Power Chassis, which holds up to 14 converters and offers single or dual AC/DC power supply.

10BASE-T to BNC
• Connects 10BASE-T devices to ThinNet (coax) devices.
• Supports ThinNet cable to 185 meters and up to 30 stations.
• UTP crossover switch plus automatic polarity detection.
• Switch-selectable ThinNet line termination.

10BASE-FL to BNC
• Links ThinNet segments via fiber optic cable while maintaining collision domain.
• Supports single or multimode fiber optic cable connections to 2 kilometers.
• ThinNet cable support to 185 meters and 30 stations.
• Switch-selectable ThinNet line termination.

10BASE-T to 10BASE-FL
• Converts 10BASE-T (twisted pair) to 10BASE-FL (fiber).
• Adapts automatically to 10-Mbps half-duplex or 20-Mbps full-duplex Ethernet.
• Increases bandwidth and distance in full-duplex mode.
• A UTP crossover switch eliminates the need for a crossover cable.

100BASE-TX to 100BASE-FX and -LX
• Converts 100BASE-TX (twisted pair) to 100BASE-FX or -LX (fiber).
• Connects Fast Ethernet switches, hubs, and workstations up to 110 kilometers!
• Autosenses half- and full-duplex.
• Manual override switch for half- and full-duplex control.
• UTP crossover switch removes need for crossover Ethernet cables.
• Available in Multimode and Single-Mode versions.

10BASE-T/100BASE-TX to 10BASE-FL
• Links copper-based 10BASE-T or 100BASE-TX to 100BASE-FX fiber media.
• Functions as a Layer 2 switch—each port learns and ages up to 1K MAC addresses.
• UTP and fiber ports support half- and full-duplex.
• Single-mode version available for distances up to 58 kilometers.
• UTP port autosenses 10- or 100-Mbps speeds.
• Manual switch for extra fiber and UTP port control.
• Crossover switch provides easy hub/switch connections.

1000BASE-T to 1000BASE-SX and -X
• Gigabit speeds! Converts copper Gigabit Ethernet to fiber.
• Supports IEEE 802.3ab 1000BASE-T and 1000BASE-SX/-X standards.
• Transmit data from 220 meters up to 65 kilometers, model dependent.
• UTP and fiber ports support half- and full-duplex.
• Manual switches give port operation control.
• Diagnostic LEDs report power availability and device status.

10BASE-T/100BASE-TX/1000BASE-T to 1000BASE-X SFP
• All features and speed of LMC1017A series but with an SFP fiber transceiver slot.
• Modular! When your needs change, simply plug in a new SFP for different fiber type and distance.

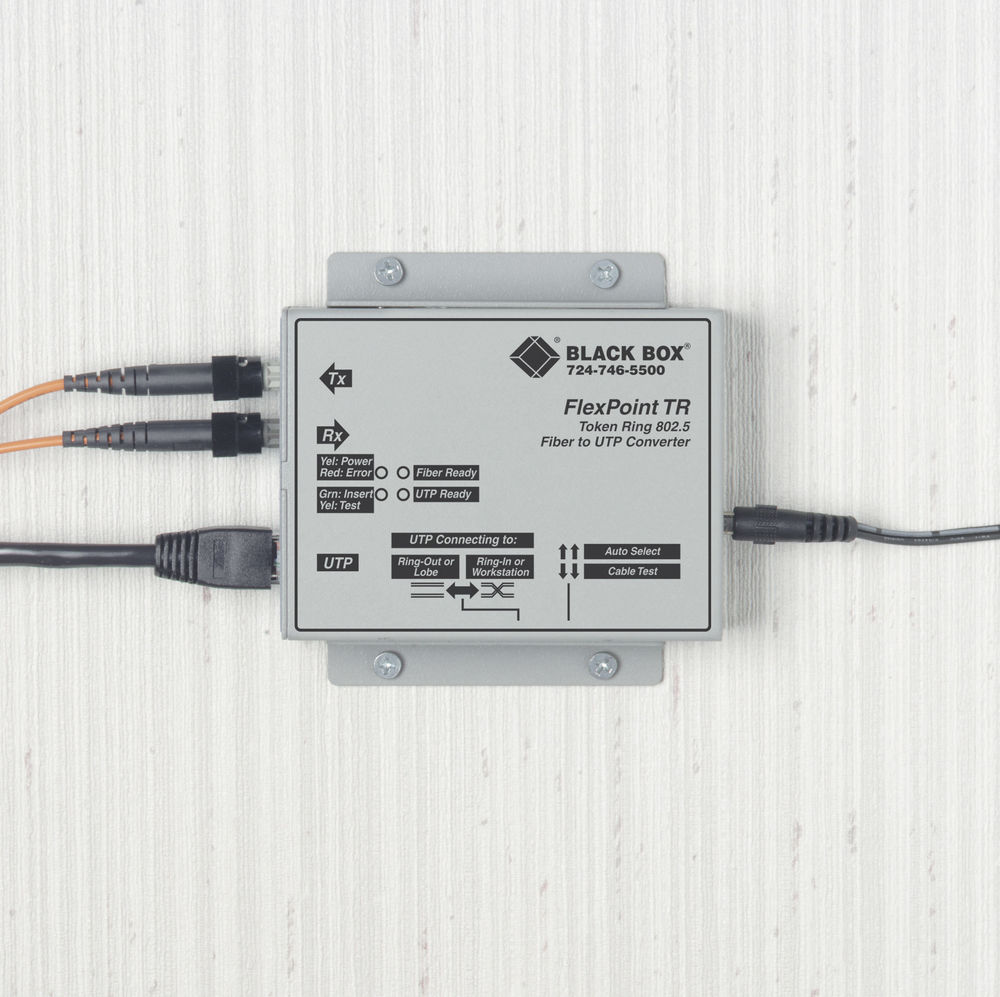

Token Ring UTP to Fiber
• Autosenses 4-/16-Mbps Token Ring.
• Supports active/passive Token Ring MAUs and concentrators.
• UTP crossover switch eliminates crossed cables.
• Network range up to 2.5 kilometers on multimode cable.
• Self-configures for operation on Token Ring main ring as well as lobe connections.

100-Mbps Fiber-to-Fiber Mode Converters
• Convert, extend mismatched fiber segments.
• Achieve extra range with single-mode—up to 58 kilometers with LH models!
• LMC25xAE models support 10- and 100-Mbps Ethernet, full-duplex.

ATM OC-3 and OC-12 Mode Converters
• Supports OC-3 or OC-12 over ATM networks and SONET.
• Perfect for line drop extension in corporate, telco, and inter-campus systems.

10/100 Rate Converters
• Links copper-based 10BASE-T or 100BASE-TX to 100BASE-FX.
• Functions as Layer 2 switch each port learns and ages up to 1024 MAC addresses.
• Transmits data up to 100 kilometers.
• Complies with 10BASE-T, 100BASE-TX, and 100BASE-FX IEEE 802.3.
• UTP and fiber ports support half- and full-duplex.
• UTP port autosenses 10- or 100-Mbps.
• Manual override for fiber and UTP port control.
• Crossover switch for easy hub/switch connections.

T1/E1 Copper to Fiber Line Drivers
• Extend T1/E1 over fiber.
• Converts coax/twisted pair to multimode or single-mode fiber.
