BlackBox LMC205 5 POSITION RACK-MOU

FlexPoint™ Modular Media Converters (MFP) from Black Box provide the ultimate in flexibility and reliability for your expanding multimedia LAN. These standalone converters are also chassis-based modules! Plus, FlexPoint offers you more interface options than any other media converter system. FlexPoint Media Converters make it easy to expand your networks as your company grows: mount your media converters on the wall, in the 5-Position Rackmounting Kit, or as modules in the Power Chassis. The Power Chassis holds 14 media converters and a Single or Dual AC or DC Power Supply.Product Description in English:

FlexPoint Modular Media Converter Rack – The converter solution that grows with your network

Provides more interface choices than any other system.
Single and dual AC or DC power supplies available.
14-slot chassis, 5-unit rack, or wall mount option.
Hot-swappable to reduce network downtime.
Warranty: 1-year Double Diamond™ (Standard)

LMC200: 48,3 cm ( 19 inch ) chassis, 14 slots, single 115-230 VAC power supply
Image for reference

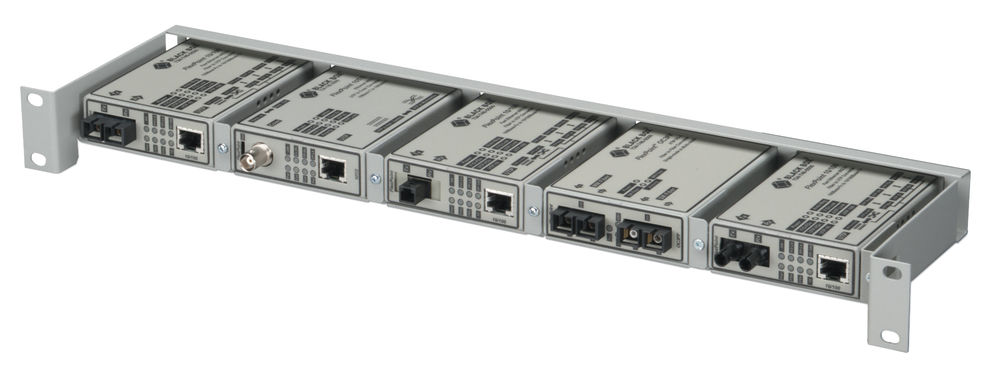

LMC205: Rackmount tray, 5 slots, without power supply

Black Box’s FlexPoint® Modular Media Converters are versatile, cost-effective standalone media converters that can be upgraded to a chassis-based system. FlexPoint offers flexibility and reliability for expanding multimedia LANs and supports a wide range of converter options, including legacy media such as ThinNet and 10BASE-FL.

FlexPoint converter options include:

• Ethernet, Fast Ethernet, Gigabit Ethernet
• UTP, Single-Mode, and Multimode Fiber
• ThinNet, Long-distance Fiber, ATM OC-3/OC-12
• 10/100 Rate Converters, T1/E1 Line Drivers, RS-232

Expansion Capabilities: Customize the system to your needs and use media converters individually. With the 5-Position Rackmount Kit or Power Chassis for up to 14 converters and single or dual AC or DC power, converters can be mounted on a rack or wall as your network grows.

Examples of FlexPoint Converter Types:

10BASE-T to BNC: Supports ThinNet up to 185 meters and 30 stations.
100BASE-TX to 100BASE-FX/LX: Supports distances up to 110 kilometers.
1000BASE-T to 1000BASE-SX/LX: Reaches up to 65 kilometers.
Token Ring UTP to Fiber: Supports 4-/16-Mbps Token Ring up to 2.5 kilometers.

Technical Specifications:

• Capacity: Holds up to 14 media converters
• Power Supply: Single or dual AC/DC options
• Hot-Swappable: Allows in-operation swaps
• Supported Protocols: 10BASE-T, 100BASE-TX/FX, 1000BASE-X, and more

Included Items:

• FlexPoint Modular Media Converter Rack (14-slot chassis or 5-slot tray)
• Power supply (LMC200: 115-230 VAC, LMC205: without power supply)
• Installation guide and optional wall/rack mount accessories
